About SIEMENS 3RN1011-2CB00 RELAY

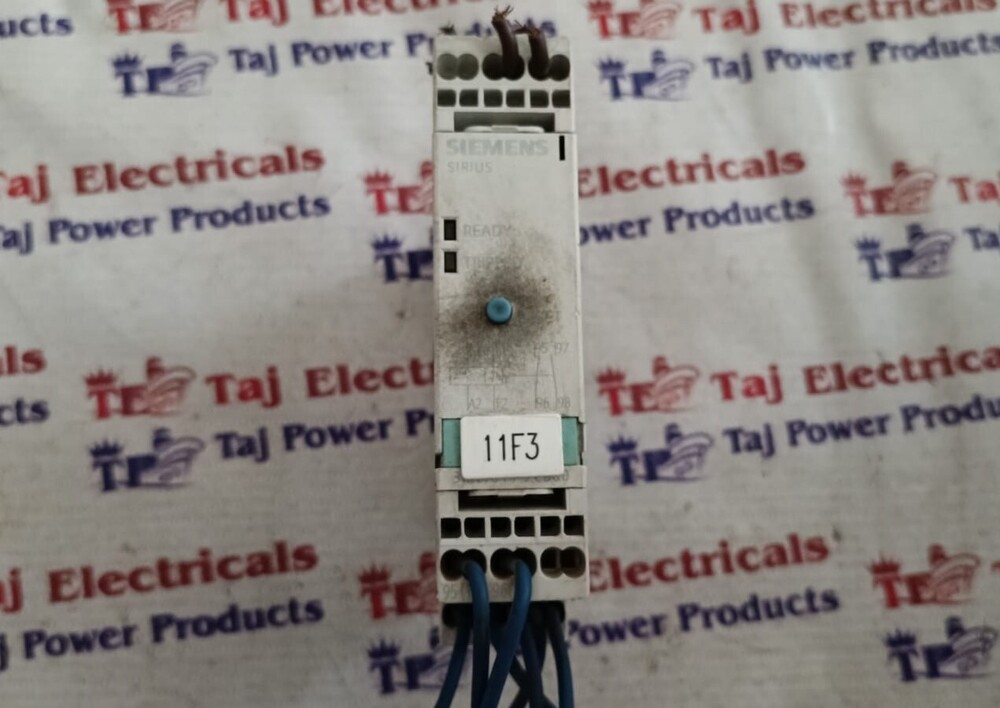

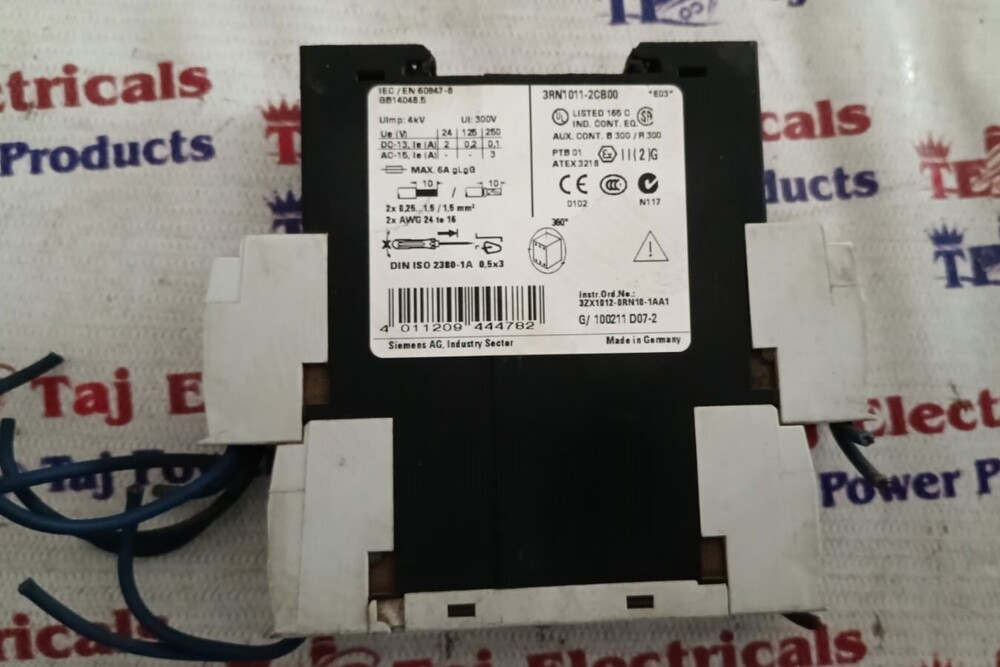

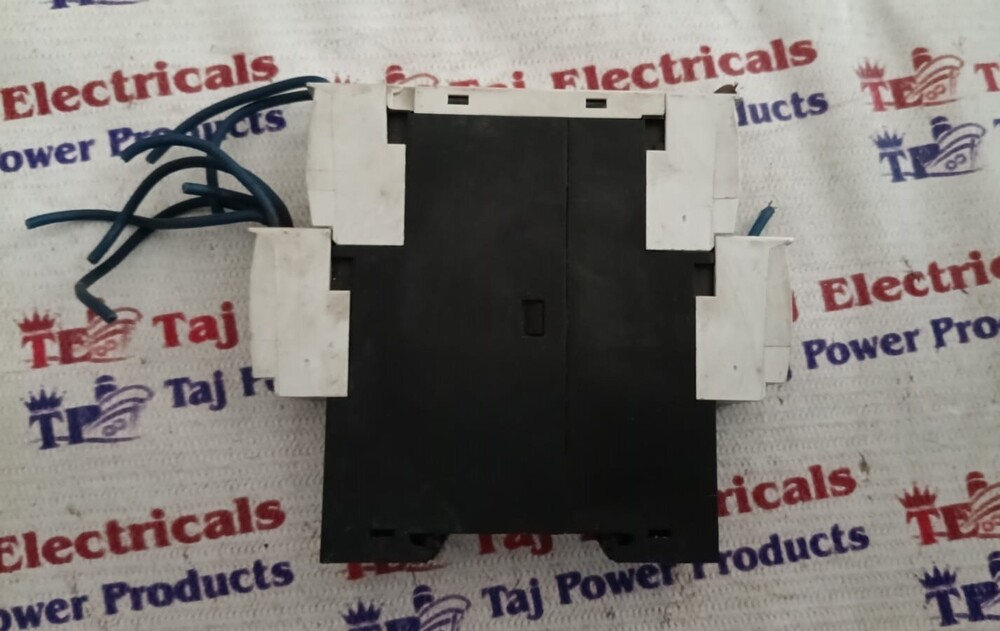

SIEMENS 3RN1011-2CB00 RELAY

Manufacture: Siemens
Type: Thermistor Motor Protection Relay
MNR: 3RN10112CB00

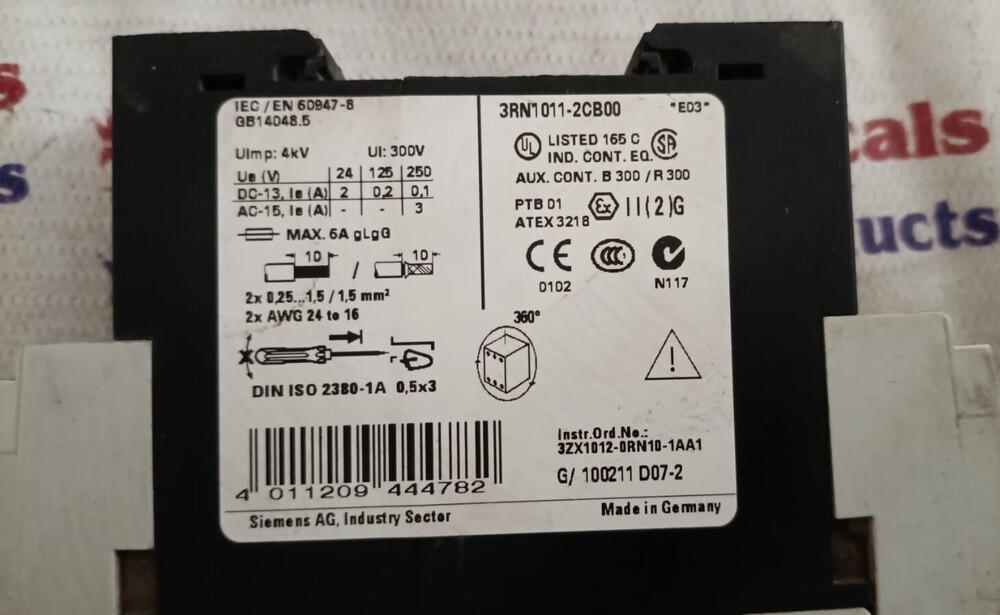

Rated insulation voltage Ui: 300 V
Rated impulse withstand voltage Uimp: 4 Kv
Rated Voltage Ue: 24 240 V AC/DC
Rated operational current Ie:
AC-15/24 250 V:3 A
DC-13 at:
24 V: 1 A
125 V: 0.2 A
240 V: 0.1 A
Conventional thermal current Ith: 5 A

Advanced Timing and Flexible Configuration

The SIEMENS 3RN1011-2CB00 relay provides seven selectable timing ranges and seven distinct timing functions, enabling you to precisely control and automate complex processes. Adjustments are simple, allowing users to set operate times from as little as 0.05 seconds up to 100 hours, catering to a multitude of industrial timing needs.


Durability and Robust Protection

Engineered for demanding environments, this relay features a sturdy, compact design with IP20 protection. It operates reliably within wide ambient (-25C to +60C) and storage temperature (-40C to +85C) ranges, ensuring stable performance even in challenging settings. The relay is built to handle high insulation resistance and dielectric strength for added safety.


Convenient Installation and Application

Designed for DIN rail mounting and equipped with screw terminals on the front side, installation is straightforward and efficient. The relay's standard compact size makes it suitable for control panels where space is limited, and it is ready for quick integration into various electrical systems across industries.
