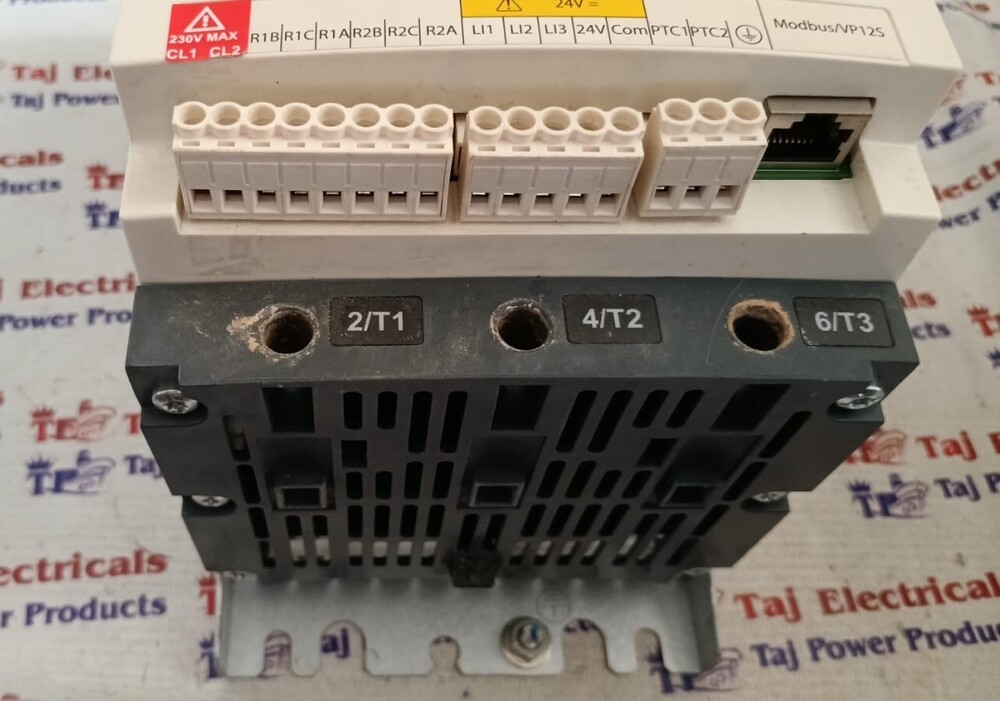

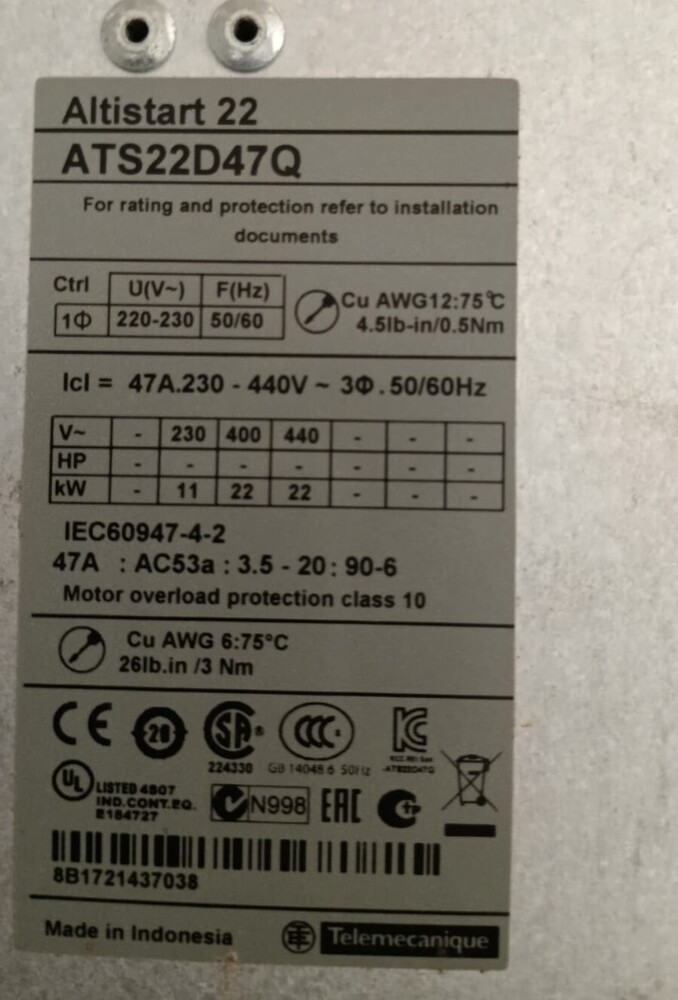

SCHNEIDER ALTISTART 22 ATS22D47Q SOFT STARTER
SCHNEIDER ALTISTART 22 ATS22D47Q SOFT STARTER
SCHNEIDER ALTISTART 22 ATS22D47Q SOFT STARTER
SCHNEIDER ALTISTART 22 ATS22D47Q SOFT STARTER
SCHNEIDER ALTISTART 22 ATS22D47Q SOFT STARTER
SCHNEIDER ALTISTART 22 ATS22D47Q SOFT STARTER
SCHNEIDER ALTISTART 22 ATS22D47Q SOFT STARTER
SCHNEIDER ALTISTART 22 ATS22D47Q SOFT STARTER
images Send Inquiry
Request To Call Back

SCHNEIDER ALTISTART 22 ATS22D47Q SOFT STARTER

Get a Price/Quote
MOQ : 1 Piece

SCHNEIDER ALTISTART 22 ATS22D47Q SOFT STARTER Specification

  • Weight
  • Approximately 6.5 kg
  • Application
  • Three Phase Motor Control, Pumps, Fans, Conveyors, Compressors
  • Mounting Type
  • Panel Mount
  • Drive Type
  • Soft Starter
  • Cable Length
  • Dependent on application (not integrated)
  • Remote Control
  • Yes
  • Screen Size
  • LED 7-segment Display
  • Connectivity Type
  • Wired, With Terminal Blocks
  • Load Capacity
  • Up to 90 Amps (AC-53A)
  • Phase
  • Three Phase
  • Features
  • Integral bypass, Overload protection, Motor thermal protection
  • Sensor Type
  • Current Sensing, Thermal Protection
  • Frequency
  • 50/60 Hz
  • Automation Grade
  • Automatic
  • Control Type
  • Digital/Analog
  • IP Rating
  • IP20
  • Processor Type
  • Microprocessor Controlled
  • Speed Range
  • Soft Start/Stop, Not a Variable Speed Drive
  • Material
  • Plastic and Metallic Components
  • Power
  • 47 kW (63 HP)
  • Temperature
  • -10C to +40C (without derating)
  • Voltage
  • 400 V AC (Line Voltage)
  • Series
  • Altistart 22
  • Motor Control Voltage
  • 110-230 V AC
  • Altitude
  • Up to 1000 m without derating
  • Rated Insulation Voltage
  • 690 V
  • Programmable Parameters
  • Ramp-up/down time, Initial voltage, Current limit
  • Storage Temperature
  • -25C to +70C
  • Start/Stop Control
  • 2/3 Wire Control
  • Humidity
  • 5% to 95% non-condensing
  • Dimensions (H x W x D)
  • 338 x 140 x 170 mm
  • Protection Functions
  • Phase loss, Short circuit, Motor stall, Overheat
  • Cooling
  • Integrated fan cooling
  • User Interface
  • Integrated display and programming buttons
  • Overload Capacity
  • 3.5 x In for 10 seconds
  • Model
  • ATS22D47Q



About SCHNEIDER ALTISTART 22 ATS22D47Q SOFT STARTER



The SCHNEIDER ALTISTART 22 ATS22D47Q SOFT STARTER is a top-rated, blue-ribbon solution for three-phase motor control, recognized as a best-seller for its sterling performance and sheer versatility. Designed for 47 kW (63 HP) motors, it operates smoothly at 400 V AC and features customizable ramp-up/down times and current limits for tailored performance. Integrated protection functions-phase loss, short circuit, overheat, and thermal safeguards-ensure enhanced safety. Featuring a microprocessor-controlled system, intuitive interface, and integral bypass, this best-in-class soft starter offers trouble-free automation for pumps, conveyors, fans, and compressors. Enjoy reliable performance in diverse industrial environments.

Ideal Uses and Application Guidance

The Schneider Altistart 22 ATS22D47Q Soft Starter excels in a range of industrial applications, including pumps, fans, conveyors, and compressors. It offers smooth motor acceleration and deceleration, making it suitable for sensitive mechanical systems. To use, simply panel-mount the unit and configure ramp and current settings via the integrated display. Its robust design and digital/analog control are perfect for harsh and high-performance environments, where precise soft starting of three-phase motors is crucial.


Sample Availability, Payment Terms, and Logistics

We provide sample units of the ATS22D47Q for evaluation. Payment terms can be arranged to suit your needs, ensuring flexibility with your procurement process. Our main domestic market covers India, supported by reliable goods transport and streamlined logistics for safe product delivery. Easy exchange options are available should any issues arise. As a trusted supplier and exporter, we prioritize efficiency in order processing, delivery, and after-sales service within India's dynamic marketplace.


FAQ's of SCHNEIDER ALTISTART 22 ATS22D47Q SOFT STARTER:


Q: How does the Schneider Altistart 22 ATS22D47Q benefit industrial motor operations?

A: By providing controlled acceleration and deceleration, the ATS22D47Q reduces mechanical stress, improves equipment lifespan, and optimizes energy use in pumps, fans, conveyors, and compressors.

Q: What protection features are available in the ATS22D47Q soft starter?

A: It includes sterling protection against phase loss, short circuits, motor stalls, and overheating, ensuring safe and reliable operation for critical industrial applications.

Q: How can I customize the operation parameters of this soft starter?

A: The integrated display and programming buttons allow you to adjust ramp-up and ramp-down times, initial voltage, and current limit settings to align perfectly with your motor's requirements.

Q: Where should I install the ATS22D47Q for optimal operation?

A: The unit is designed for panel mounting in control cabinets within industrial environments, ensuring easy integration and effective cooling by the built-in fan.

Q: What is the process for obtaining a sample or placing an order?

A: You can request a sample by contacting us directly. Orders can be processed with flexible payment options, and goods transport is efficiently managed to ensure swift delivery throughout India.
