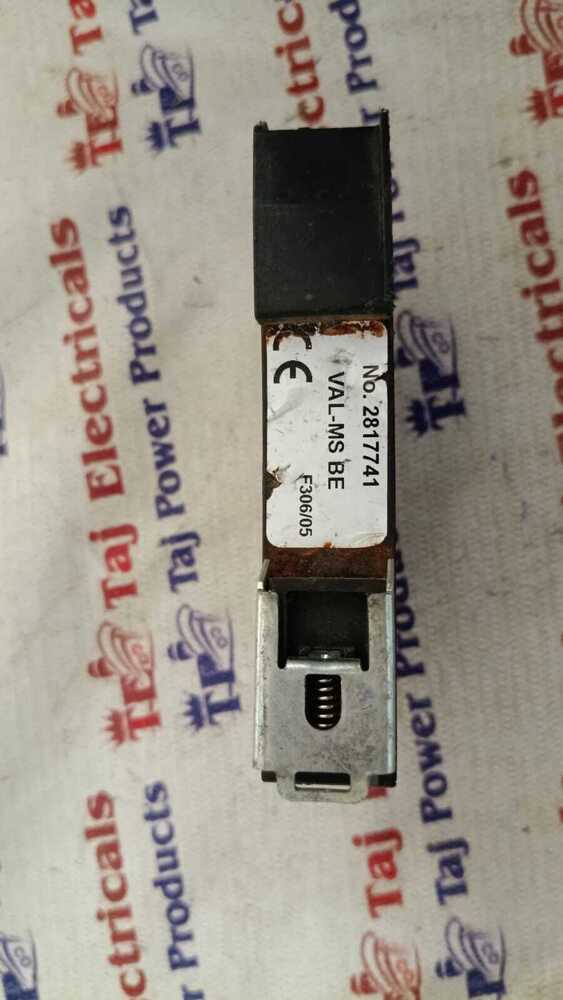

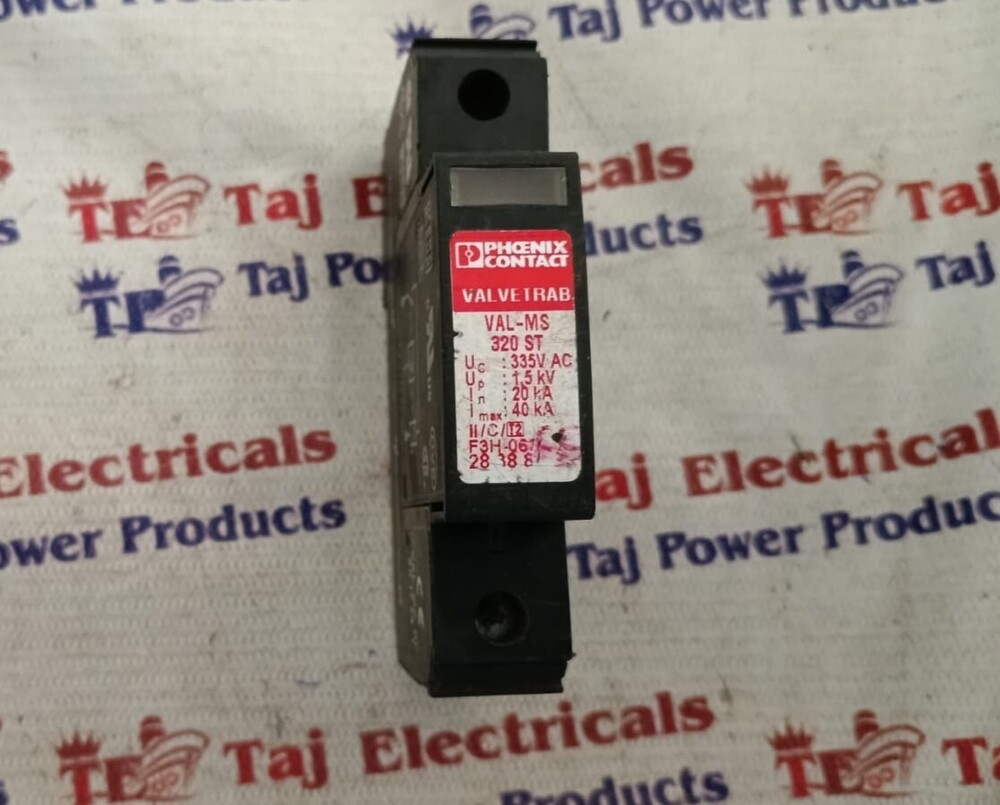

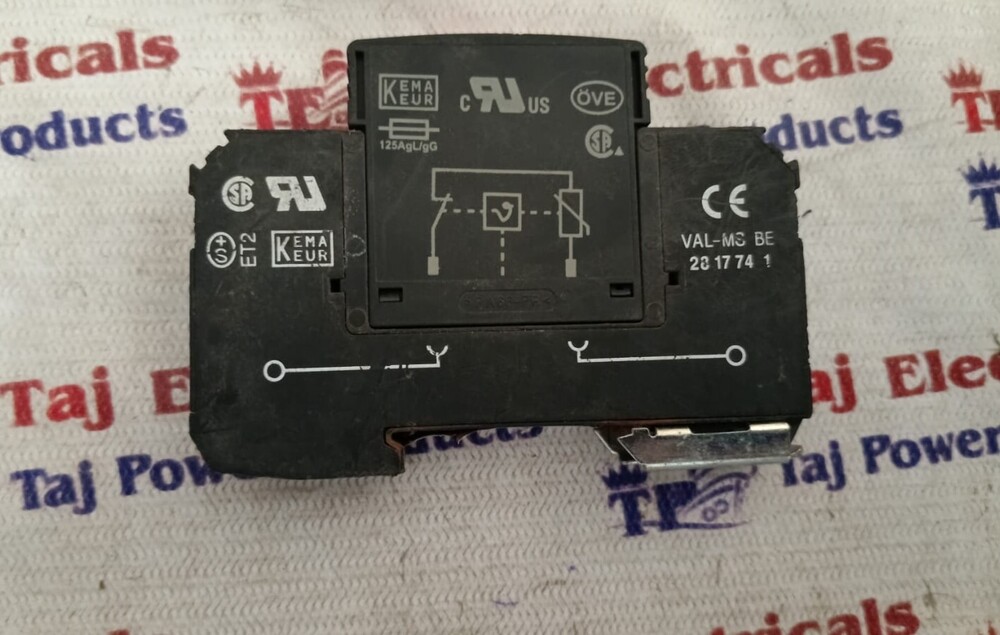

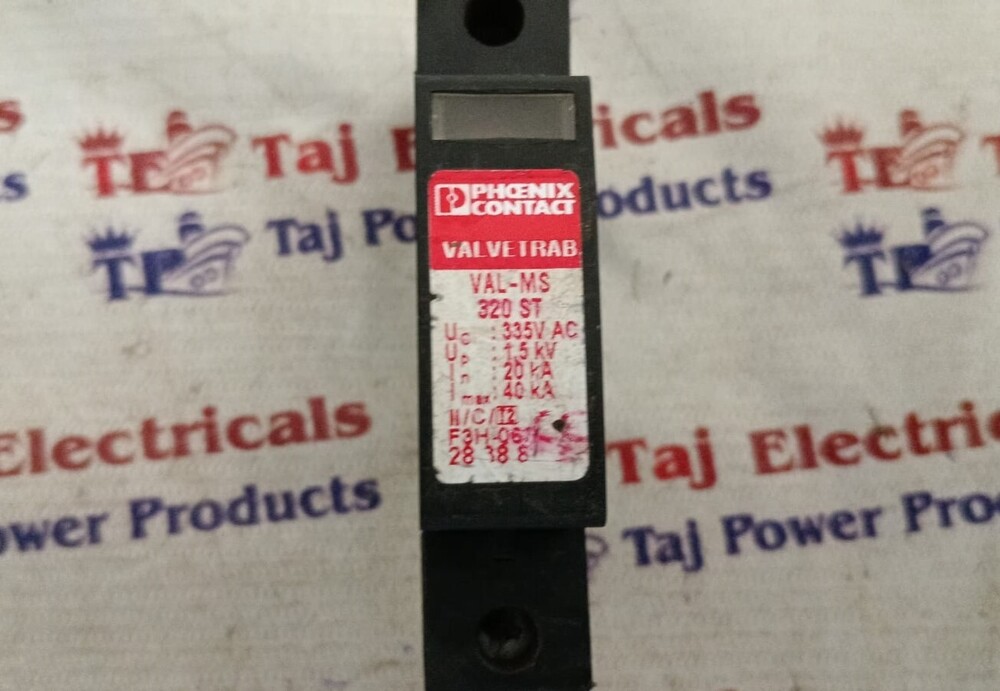

PHOENIX CONTACT VAL-MS 320ST F3J-06 SURGE PROTECTION CONNECTOR

Get a Price/Quote
MOQ : 1 Piece

PHOENIX CONTACT VAL-MS 320ST F3J-06 SURGE PROTECTION CONNECTOR Specification

  • Mounting Type
  • DIN Rail Mounting
  • Automation Grade
  • Manual
  • IP Rating
  • IP20
  • Frequency
  • 50/60 Hz
  • Connectivity Type
  • Screw Connection
  • Features
  • Replaceable plug-in arrester, Visual status indicator
  • Phase
  • Single and Three Phase
  • Remote Control
  • Yes
  • Weight
  • Approx. 120 g
  • Application
  • Surge protection for power and control systems
  • Control Type
  • Passive
  • Material
  • Plastic, Metal Components
  • Temperature
  • -40C to +85C
  • Voltage
  • 320V AC
  • Nominal Discharge Current (In)
  • 20 kA
  • Protection Level (Up)
  • < 1.5 kV
  • Maximum Discharge Current (Imax)
  • 40 kA
  • Design
  • Pluggable module
  • Replacement
  • Plug-in replaceable module
  • Housing Width
  • 17.5 mm
  • Number of Positions
  • 3 + PE
  • Product Series
  • VAL-MS
  • Test Class
  • Type 2 (Class II)
  • Standards Compliance
  • IEC 61643-11
  • Response Time
  • < 25 ns
  • Indicator
  • Mechanical status display


PHOENIX CONTACT VAL-MS 320ST F3J-06 SURGE PROTECTION CONNECTOR Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 100 Pieces Per Month
  • Delivery Time
  • 7 Days


About PHOENIX CONTACT VAL-MS 320ST F3J-06 SURGE PROTECTION CONNECTOR

PHOENIX CONTACT VAL-MS 320ST F3J-06 SURGE PROTECTION CONNECTOR


The VAL-MS 320ST F3H-06is a surge protection connector type 2designed for 320 V AC systemsIt features a high-capacity varistorthermal monitoringand visual fault warningcapabilities, making it suitable for various industrial applications.



Reliable Surge Protection for Industrial Power Systems

Designed to safeguard sensitive equipment from transient overvoltages, the VAL-MS 320ST F3J-06 ensures consistent operation in demanding environments. The plug-in module facilitates straightforward replacement, while its visual status indicator aids quick maintenance checks. Structured for power and control applications, it suits both manual automation and diverse voltage requirements, making it an essential component in modern electrical distribution and control panels.


Innovative Design for Ease of Maintenance

Featuring a replaceable plug-in arrester, the device minimizes downtime during maintenance. Its screw connection promotes secure and straightforward wiring, while the mechanical indicator provides immediate status updates. Compliant with international safety standards, this compact surge protection connector fits seamlessly onto DIN rails, maximizing panel space and installation flexibility for distributors, importers, and service providers alike.

FAQ's of PHOENIX CONTACT VAL-MS 320ST F3J-06 SURGE PROTECTION CONNECTOR:


Q: How does the PHOENIX CONTACT VAL-MS 320ST F3J-06 protect my systems from surges?

A: This device absorbs and diverts excessive energy from power surges away from sensitive equipment, thus preventing voltage spikes from damaging your connected systems. Its fast response time ensures reliable protection for power and control circuits.

Q: What is the process for replacing the surge protection module?

A: When the visual status indicator signals replacement is necessary, simply unplug the old module and insert a new one into the same housing. This plug-in feature allows for easy and safe module replacement without complete system downtime.

Q: Where can I install the VAL-MS 320ST F3J-06 in my electrical setup?

A: This surge protection connector is specifically designed for DIN rail mounting, compatible with most standard electrical distribution and control panels, supporting both single and three-phase systems.

Q: When is it advisable to check or replace the surge protection module?

A: It is recommended to regularly monitor the mechanical status display. Replacement is necessary when the indicator shows that the module has reached its operational limits due to repeated surges or after a major surge event.

Q: What benefits does the visual status indicator provide?

A: The mechanical visual indicator allows for immediate assessment of the module's operational state, enabling proactive maintenance and reducing the risk of unprotected downtime.

Q: How do I connect the VAL-MS 320ST F3J-06 to my system?

A: The device features screw connections for a secure and reliable attachment to your wiring. Follow standard installation practices and ensure proper earthing, as outlined in IEC 61643-11 guidelines, for optimal performance.

Q: What standards and environments is this surge protector suited for?

A: Compliant with IEC 61643-11 and rated IP20, it supports use in a wide range of temperature conditions from -40C to +85C. It fits industrial and commercial applications needing robust Type 2 (Class II) overvoltage protection.
