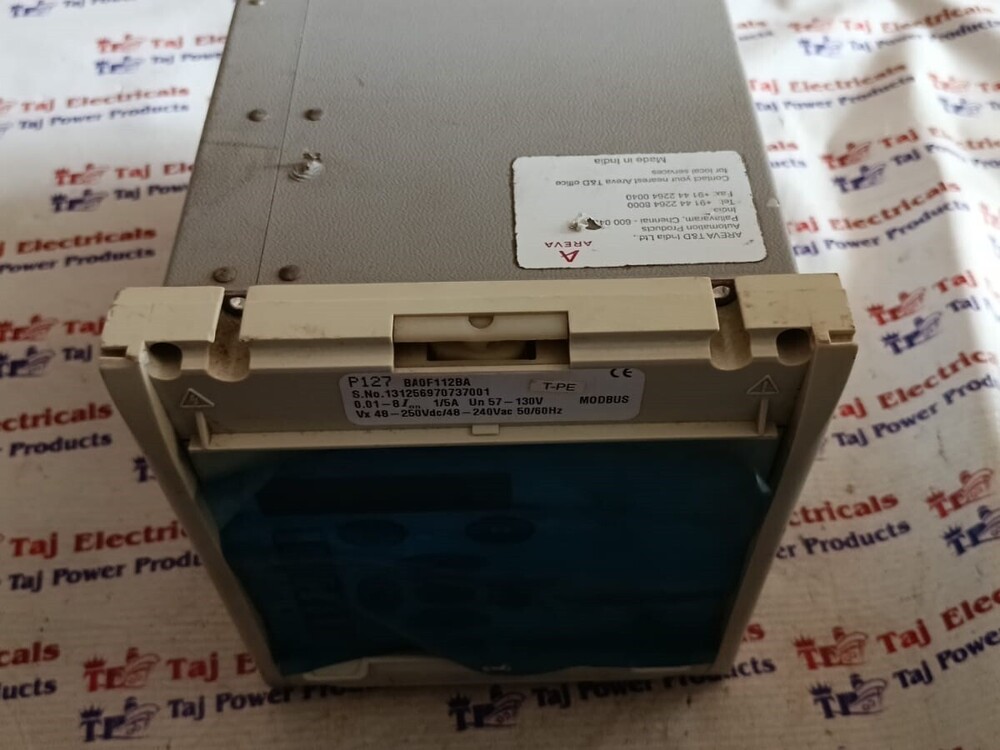

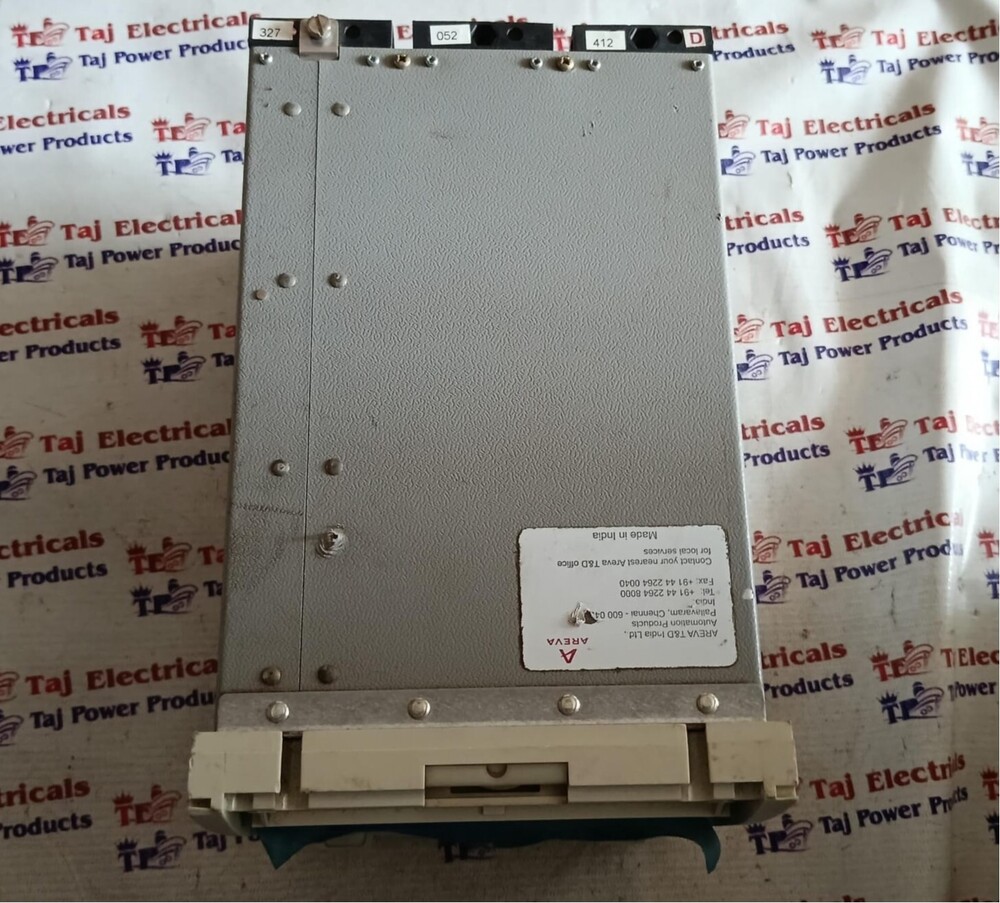

MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY
MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY
MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY
MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY
MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY
MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY
MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY
MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY
MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY
MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY
images Send Inquiry
Request To Call Back

MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY

Get a Price/Quote
MOQ : 1 Piece

MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY Specification

  • Contact Resistance
  • <50 m
  • Mechanical Life
  • >10 million operations
  • Coil Power
  • N/A for digital relay
  • Contact Material
  • Silver alloy
  • Dielectiric Strength
  • 2 kV RMS, 1 min between contacts and coil
  • Coil Voltage
  • Digital relay; auxiliary voltage 24-250V AC/DC
  • Working Temperature
  • -10C to +55C
  • Contact Form
  • 1 NO + 1 NC
  • Power Consumption
  • <10 VA
  • Ambient Temperature
  • -10C to +55C
  • Protect Feature
  • Three-phase overcurrent, earth fault, directional protection, configurable programmable logic
  • Product Type
  • Numerical Overcurrent Protection Relay
  • Insulation Resistance
  • >100 M at 500 V DC
  • Theory
  • Microprocessor Based Protection Relay
  • Usage
  • Overcurrent Protection in electrical systems
  • Contact Load
  • 5A/250V AC, 5A/30V DC Resistive
  • Operate Time
  • <30 ms typical
  • Terminal Type
  • Screw Terminal
  • Rated Voltage
  • 24-250V AC/DC
  • Supply Terminal
  • Rear Terminal Block
  • Size
  • Standard 96x96 mm relay case
  • Color
  • White & Grey
  • Dimension (L*W*H)
  • 220 x 96 x 180 mm
  • Weight
  • Approx. 2 kg
  • Outputs
  • Binary Outputs: 4
  • Display
  • LCD graphical display with backlight
  • Humidity
  • Up to 95% RH non-condensing
  • Setting Range
  • Wide analog and digital settings for current and time
  • Inputs
  • Binary Inputs: 6
  • Approvals & Certificates
  • CE Marked
  • Disturbance Recording
  • Available, up to 10 s per disturbance
  • Communication Protocol
  • RS485, Modbus, IEC 60870-5-103
  • Mounting Method
  • Flush mounting
  • Event Recording
  • Up to 128 event records
  • Storage Temperature
  • -40C to +70C
  • Firmware Version
  • As per factory shipment


MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 100 Pieces Per Month
  • Delivery Time
  • 7 Days


About MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY

MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY

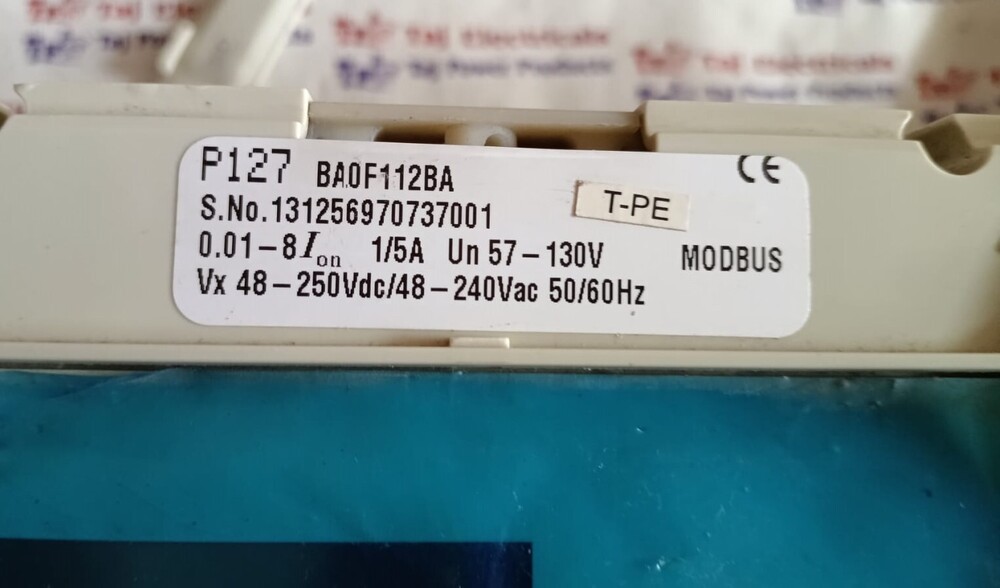

The MICOM P127BA0F112BAis an overcurrent and earth fault protection relay designed for electrical systems. It operates within a voltage range of 24-250Vdc and 48-240Vaccapable of handling currents up to 1/5AThis relay is equipped with advanced technology for accurate protection against overcurrent situations, ensuring the safety and integrity of electrical equipment.



Advanced Protection Engineering

The MICOM P127 BA0F112BA is engineered to provide advanced three-phase overcurrent and earth fault protection, with directional and programmable logic features. This makes it highly adaptable for diverse industrial and utility applications requiring comprehensive safety and control.


User-Friendly Interface and Operation

With its intuitive LCD graphical display and backlight, setup and monitoring are effortless. Its wide range of analog and digital settings for current and time parameters ensures precise customization and optimal usability, empowering operators to fine-tune protection as needed.


Comprehensive Recording and Diagnostics

The relay offers robust event and disturbance recording capabilities, with up to 128 event logs and 10 seconds per disturbance. This makes post-event analysis easier, helping engineers swiftly diagnose, respond, and prevent potential future issues within their systems.

FAQ's of MICOM P127 BA0F112BA OVERCURRENT PROTECTION RELAY:


Q: How does the MICOM P127 BA0F112BA provide overcurrent protection?

A: The relay uses advanced microprocessor technology to detect and isolate overcurrent conditions in three-phase systems, including earth fault and directional faults. It ensures rapid response-operating in less than 30 ms-to safeguard equipment and minimize downtime.

Q: What communication protocols are supported by this relay for remote monitoring?

A: The MICOM P127 BA0F112BA supports RS485, Modbus, and IEC 60870-5-103 protocols, enabling seamless integration with SCADA and other remote monitoring systems for enhanced operational oversight and control.

Q: When should I use disturbance and event recording features of this relay?

A: Disturbance and event recording features are valuable during abnormal grid events or faults. They help engineers analyze incident sequences and improve grid reliability by providing up to 128 event logs and 10 seconds of disturbance data per event.

Q: Where can the relay be installed, and what mounting options are available?

A: This relay is designed for flush mounting, fitting into standard 96x96 mm relay cases. It's suitable for switchgear panels and control cabinets in power plants, substations, or industrial facilities.

Q: What is the process for setting up protection parameters?

A: Users can set protection parameters via the LCD graphical display, choosing from wide analog and digital ranges for current and time. This allows precise adjustment to match each application's protective requirements.

Q: How does the wide operating temperature and humidity range benefit users?

A: With a working temperature of -10C to +55C and up to 95% non-condensing humidity tolerance, the relay maintains reliable operation in various climatic conditions, ensuring consistent protection in demanding environments.
