WOODWARD EASYGEN-3200-5 HMI (SN:17038645 1007)

Price 1 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

WOODWARD EASYGEN-3200-5 HMI (SN:17038645 1007) Specification

Load Capacity
Rated for up to 32 generator sets in parallel

Screen Size
134 x 65 mm (graphic LCD display)

Sensor Type
Voltage and current, PT100, digital inputs

Application
Generator set control and management

Features
Graphical LCD, event log, password protection, configurable I/O, flexible multi-lingual interface

Connectivity Type
CAN, Ethernet, RS-485, USB

Frequency
50/60 Hz

Mounting Type
Panel mounting

Phase
Single/Three Phase (configurable)

Drive Type
Direct panel mount

Remote Control
Yes

IP Rating
IP65 (front side)

Control Type
Microprocessor-based HMI

Automation Grade
Automatic

Weight
Approx. 1.8 kg

Processor Type
ARM Cortex-M based microcontroller

Speed Range
Generator speed control (1500/1800 rpm)

Cable Length
Depends on installation; typically up to 80m (for data cables)

Material
Industrial-grade plastic and coated metal

Power
24 V DC

Temperature
-20°C to +70°C

Voltage
24 V DC (nominal)

Event Logging
Up to 300 events

Communication Protocols
Modbus, CANopen, TCP/IP

Model Number
Easygen-3200-5

Firmware Upgradable
Yes, via USB or CAN

Power Consumption
Approx. 12 W

EMC Compliance
EN 61326-1

Serial Number
17038645 1007

I/O Ports
8 digital inputs, 5 relay outputs, 4 analog inputs

Data Storage
Non-volatile memory for settings and logs

Protection Standards
EN 61010-1, EN 60204-1

Operating Altitude
Up to 2000 m above sea level

Dimensions
266 x 170 x 50 mm

Alarm System
Configurable alarms and trip settings

Programming
PC configurable via ToolKit software

Display Type
LED-backlit graphic LCD

WOODWARD EASYGEN-3200-5 HMI (SN:17038645 1007) Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About WOODWARD EASYGEN-3200-5 HMI (SN:17038645 1007)

WOODWARD EASYGEN-3200-5 HMI (SN:17038645 1007)

The easYgen-3000 series from Woodward, manufacturers of several industrial turbomachinery control and protective systems. The easYgen-3000 series is a versatile, efficient Genset control, which is able to be adapted individually to every application. This lineup of controller modules is designed for industrial gas and diesel engines, steam turbines, and compressor modules.

Efficient Generator Management

The Easygen-3200-5 supports parallel control of up to 32 generator sets, streamlining complex power system management. Its advanced processor and configurable inputs/outputs enable seamless automation and reliable performance for a variety of industrial and commercial applications.

User-Friendly HMI and Configuration

With a 134 x 65 mm, LED-backlit graphic LCD and a multilingual interface, operators access data with ease. Programming is simple via PC using ToolKit software, ensuring rapid setup, updates, and on-site customization.

Robust Connectivity and Safety Features

Supporting CAN, Ethernet, RS-485, and USB connectivity, the Easygen-3200-5 integrates with modern infrastructures and legacy systems. Protection features include compliance with EN 61010-1 and EN 60204-1, configurable alarms, and password security for reliable and secure operations.

FAQ's of WOODWARD EASYGEN-3200-5 HMI (SN:17038645 1007):

Q: How is the WOODWARD EASYGEN-3200-5 HMI configured for generator set applications?

A: The Easygen-3200-5 is configured using PC-based ToolKit software, which allows users to set up generator parameters, communication protocols, I/O functions, and protection settings. The software enables quick and tailored adjustments for specific generator control requirements.

Q: What types of connectivity does the Easygen-3200-5 support for remote monitoring and control?

A: This HMI supports communications via Modbus, CANopen, TCP/IP, Ethernet, RS-485, and USB. Remote monitoring and control is possible through Modbus/TCP or CANopen protocols, offering integration flexibility for both new and existing systems.

Q: When should the event log be used, and how much data can it store?

A: The event log should be used to record significant operational incidents, alarm events, or system changes for diagnostic and maintenance purposes. The Easygen-3200-5 can store up to 300 events in its non-volatile memory, ensuring records are retained even after power loss.

Q: Where can the Easygen-3200-5 be installed, and what environmental conditions is it designed for?

A: Designed for panel mounting, the Easygen-3200-5 is suitable for industrial indoor environments. It operates reliably in temperatures from -20C to +70C, up to 2000 meters altitude, and features an IP65 front panel rating for dust and water protection.

Q: What is the process for upgrading the firmware of the Easygen-3200-5?

A: Firmware upgrades are performed using a USB or CAN interface. Detailed upgrade steps are provided in the user manual, helping ensure the HMI runs the latest features and security updates efficiently and securely.

Q: How does using the Easygen-3200-5 benefit generator management?

A: Benefits include advanced automation for up to 32 generators, detailed event logging, remote control capability, configurable alarms, and compliance with key safety and EMC standards. This results in reliable operations, streamlined maintenance, and enhanced safety for complex power systems.

WOODWARD EASYGEN-3200-5 HMI (SN:17038645 1007)

WOODWARD EASYGEN-3200-5 HMI (SN:17038645 1007)

WOODWARD EASYGEN-3200-5 HMI (SN:17038645 1007)

WOODWARD EASYGEN-3200-5 HMI (SN:17038645 1007)

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Email

More Products in Woodward Category

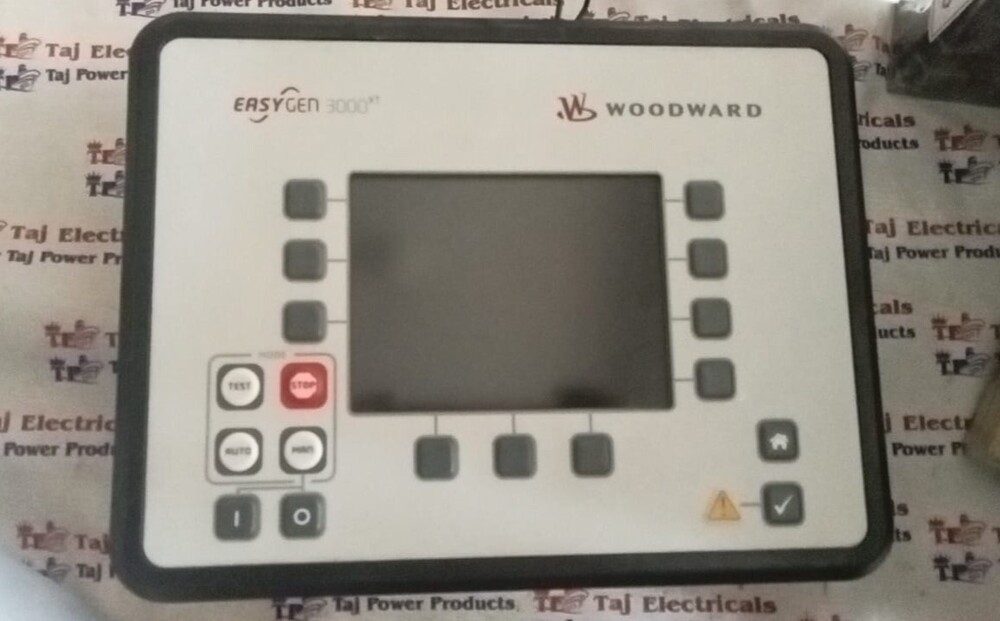

WOODWARD EASYGEN-3200XT-P1 GENSET CONTROLLER
