VOLTPRO-VD-03 VOLTAGE RELAY

Get a Price/Quote

MOQ : 1 Piece

VOLTPRO-VD-03 VOLTAGE RELAY Specification

Coil Voltage
230V AC

Coil Power
<2 VA

Power Consumption
<2 VA

Working Temperature
-10C to +55C

Contact Resistance
<100 m

Contact Material
Silver Alloy

Ambient Temperature
-10C to +55C

Dielectiric Strength
2kV AC, 1 min

Protect Feature
Over and Under Voltage Protection

Contact Form
1 Changeover (SPDT)

Mechanical Life
> 10,000,000 operations

Product Type
Voltage Relay

Insulation Resistance
>100 M (at 500 VDC)

Theory
Electromagnetic Relay

Usage
Industrial/Commercial Voltage Protection

Contact Load
8A 250 VAC Resistive

Operate Time
<100 ms

Terminal Type
Screw Terminal

Rated Voltage
230V AC

Supply Terminal
L, N

Size
Standard compact

Color
White & Blue

Dimension (L*W*H)
90 x 36 x 64 mm

Weight
Approx 120g

Response Time
<100ms

Compliant Standards
IS/IEC 60255

Trip Setting Range
150-270V AC

Ingress Protection
IP20

Mounting Type
DIN Rail

Relay Status Indication
LED Indicator

Reset Type
Automatic / Manual

Hysteresis
5V

Frequency
50/60 Hz

Storage Temperature
-25C to +70C

VOLTPRO-VD-03 VOLTAGE RELAY Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About VOLTPRO-VD-03 VOLTAGE RELAY

VOLTPRO-VD-03 VOLTAGE RELAY

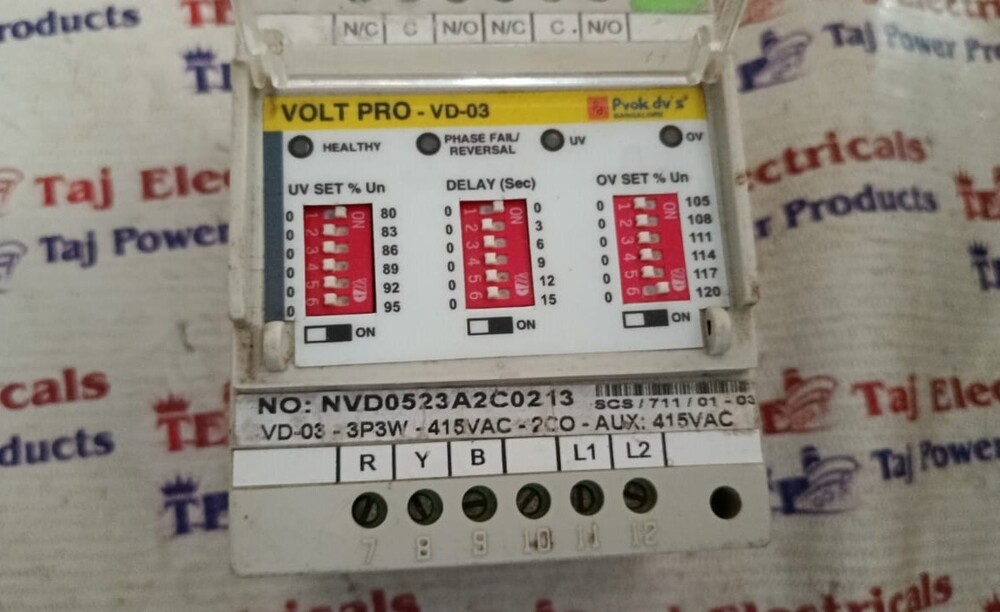

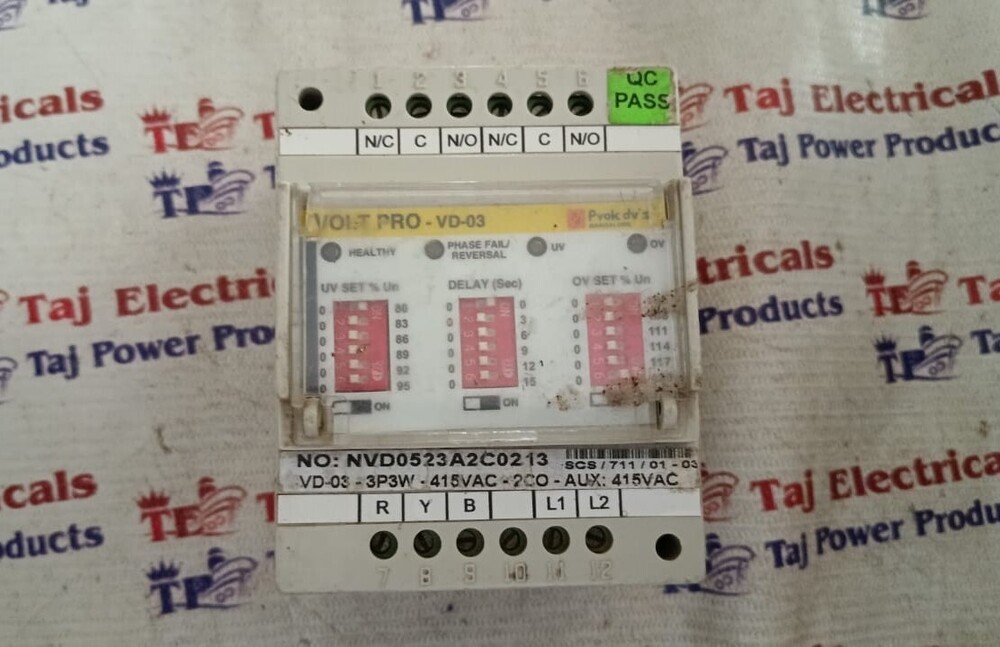

The VOLTPRO-VD-03is a voltage monitoring device designed for various applications. It features fixed or variable voltage settings, auto reset, and definite time delay for protection against overvoltage and undervoltage conditions. This device is particularly useful in synchronous motors, where low voltage can cause them to come out of synchronization, and induction motors may stop if voltage falls below 70%.

Comprehensive Voltage Protection

Designed for both industrial and commercial environments, the VOLTPRO-VD-03 delivers reliable over and under voltage protection. Its wide trip setting adapts to varied power conditions, ensuring systems remain safeguarded under fluctuating voltages. Fast response and robust construction make it a valuable addition to any power distribution panel.

User-Friendly Features and Operation

This voltage relay integrates convenient functions like automatic and manual reset, easily accessible screw terminals, and a clear LED indicator that displays relay status at a glance. The compact DIN rail mounting supports straightforward installation, while low power consumption ensures cost-effective continuous use.

FAQ's of VOLTPRO-VD-03 VOLTAGE RELAY:

Q: How does the VOLTPRO-VD-03 detect and protect against voltage anomalies?

A: The relay continuously monitors the supply voltage and activates protection if levels fall outside the adjustable 150-270V AC range. Upon detection of over or under voltage, it quickly disconnects the circuit (within <100ms), preventing potential equipment damage.

Q: What are the benefits of the automatic and manual reset options on the VOLTPRO-VD-03?

A: Automatic reset allows the relay to restore operation when voltage normalizes, minimizing downtime. Manual reset offers additional control for maintenance and safety, letting users decide when to re-engage the system after a fault.

Q: When should I use the VOLTPRO-VD-03 voltage relay in my electrical system?

A: It is ideal for integration in power distribution panels where continuous voltage monitoring is critical-such as factories, commercial buildings, or sensitive electrical equipment installations-to prevent failures due to voltage fluctuations.

Q: Where is the VOLTPRO-VD-03 typically installed?

A: The relay is designed for DIN rail mounting, making it suitable for standard control cabinets in industrial and commercial settings. Its compact size ensures easy installation alongside other modular devices.

Q: What is the process for setting the voltage trip range on the VOLTPRO-VD-03?

A: The trip range can be adjusted between 150 and 270V AC using onboard controls. Refer to the device's manual for specific instructions to tailor protection settings to your application's requirements.

Q: How does the LED indicator on the VOLTPRO-VD-03 relay assist users?

A: The LED relay status indicator provides a quick visual cue of the device's operational state, so users can immediately know whether the relay is energized and the circuit is protected.
