SINRO SRD02-08230FK2 VARIABLE AIR DAMPER MOTOR
SINRO SRD02-08230FK2 VARIABLE AIR DAMPER MOTOR
SINRO SRD02-08230FK2 VARIABLE AIR DAMPER MOTOR
SINRO SRD02-08230FK2 VARIABLE AIR DAMPER MOTOR
SINRO SRD02-08230FK2 VARIABLE AIR DAMPER MOTOR
SINRO SRD02-08230FK2 VARIABLE AIR DAMPER MOTOR
SINRO SRD02-08230FK2 VARIABLE AIR DAMPER MOTOR
SINRO SRD02-08230FK2 VARIABLE AIR DAMPER MOTOR
images Send Inquiry
Request To Call Back

SINRO SRD02-08230FK2 VARIABLE AIR DAMPER MOTOR

Get a Price/Quote
MOQ : 1 Piece

SINRO SRD02-08230FK2 VARIABLE AIR DAMPER MOTOR Specification

  • Speed Range
  • 15 sec/90
  • Application
  • HVAC Air Damper Control
  • IP Rating
  • IP54
  • Remote Control
  • Yes
  • Connectivity Type
  • Wired
  • Cable Length
  • 1 meter
  • Sensor Type
  • Position Feedback Potentiometer
  • Phase
  • Single Phase
  • Frequency
  • 50/60 Hz
  • Load Capacity
  • Suitable for up to 4 m2 damper
  • Features
  • Fail Safe Spring Return, Manual Override
  • Control Type
  • Proportional / On-Off
  • Mounting Type
  • Direct Mount
  • Drive Type
  • Synchronous Motor
  • Automation Grade
  • Automatic
  • Weight
  • 1.7 kg
  • Material
  • Aluminum Alloy
  • Power
  • 8 Nm
  • Temperature
  • -20C to +60C
  • Voltage
  • 230 VAC
  • Angle of Rotation
  • 90
  • Mechanical Life
  • >60,000 cycles
  • Ambient Humidity
  • 5% to 95% RH (non-condensing)
  • Noise Level
  • <35 dB(A)
  • Compatible Damper Shaft Size
  • 10 to 16 mm
  • Torque
  • 8 Nm
  • Operation Mode
  • Open/Close or Modulating
  • Housing Protection
  • UV-Resistant Casing
  • Spring Return
  • Yes


SINRO SRD02-08230FK2 VARIABLE AIR DAMPER MOTOR Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 100 Pieces Per Month
  • Delivery Time
  • 7 Days


About SINRO SRD02-08230FK2 VARIABLE AIR DAMPER MOTOR

SINRO SRD02-08230FK2 VARIABLE AIR DAMPER MOTOR

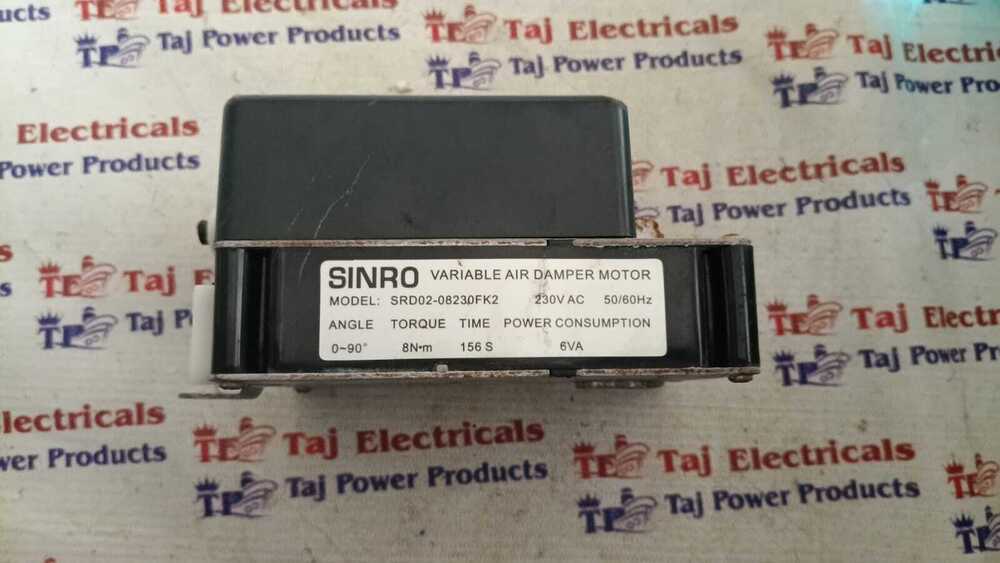

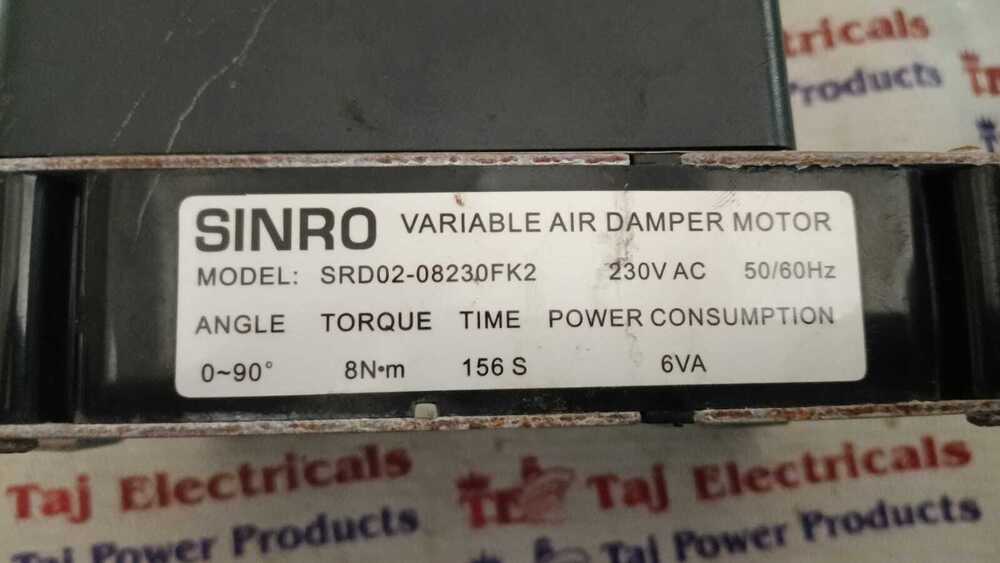

The SRD02-08230FK2is a Variable Air Damper Motordesigned for precise control of airflow in HVAC systems. It operates at 230V AC 50/60Hzand has an angle range of 090providing flexibility in adjusting airflow. The motor exerts a torque of 8NMand has a power consumption of 6Vamaking it energy-efficient and suitable for various HVAC applications.



High-Performance HVAC Damper Motor

The SINRO SRD02-08230FK2 is engineered for durable and efficient air damper operation in HVAC systems. Its robust 8 Nm torque, quick 90 rotation in just 15 seconds, and suitable load capacity make it ideal for medium to large damper applications. An aluminum alloy body and IP54 rating ensure enduring protection against dust and splashes, while the UV-resistant casing defends against sunlight exposure in challenging environments.


Advanced Automation and User-Friendly Features

This actuator enhances automation in modern buildings with its proportional and on-off control modes, as well as fail-safe spring return for safety. The manual override offers operational flexibility during maintenance or emergencies. Remote control capability and a position feedback potentiometer add to the motor's versatility, making installation, monitoring, and control straightforward for HVAC professionals.

FAQ's of SINRO SRD02-08230FK2 VARIABLE AIR DAMPER MOTOR:


Q: How should the SINRO SRD02-08230FK2 be installed for optimum performance?

A: For optimal performance, directly mount the actuator onto the damper shaft (10 to 16 mm diameter) using the provided mounting hardware. Ensure the actuator's wiring is properly connected to a 230 VAC power supply and control system. Secure the IP54 UV-resistant housing to protect against environmental factors and maintain correct alignment to leverage its full torque.

Q: What are the main benefits of using this variable air damper motor in HVAC systems?

A: Benefits include reliable fail-safe operation with the spring return feature, energy-efficient modulation for precise airflow control, quiet operation (<35 dB(A)), and advanced position feedback. The robust aluminum alloy, UV-resistant housing, and IP54 protection ensure long life, while rapid operation (15 sec/90) improves overall HVAC efficiency.

Q: When should the manual override function be used?

A: The manual override function is ideal during maintenance, power outages, or system commissioning. It allows operators to manually adjust damper position if the actuator loses power or needs repositioning, ensuring continuous operation and simplified troubleshooting.

Q: Where can this air damper motor be applied effectively?

A: This motor is well-suited for commercial, industrial, and institutional buildings where precise air distribution control is required. Applications include ventilation ducts, air handling units, and zoned climate control systems in both new installations and retrofit projects throughout India or similar environments.

Q: What is the proper process for connecting the actuator to a control system?

A: Connect the actuator's wiring to the building's control system via the 1-meter cable, ensuring compliance with safety standards. For modulating or on-off control, use the appropriate input signals as specified in the manual. Position feedback is available through the built-in potentiometer for integration with monitoring systems.

Q: How does the fail-safe spring return feature work during emergencies?

A: In the event of power loss or system failure, the built-in spring return quickly and reliably moves the damper to its default safe position. This protects the HVAC system from potential damage and maintains building air safety standards automatically.
