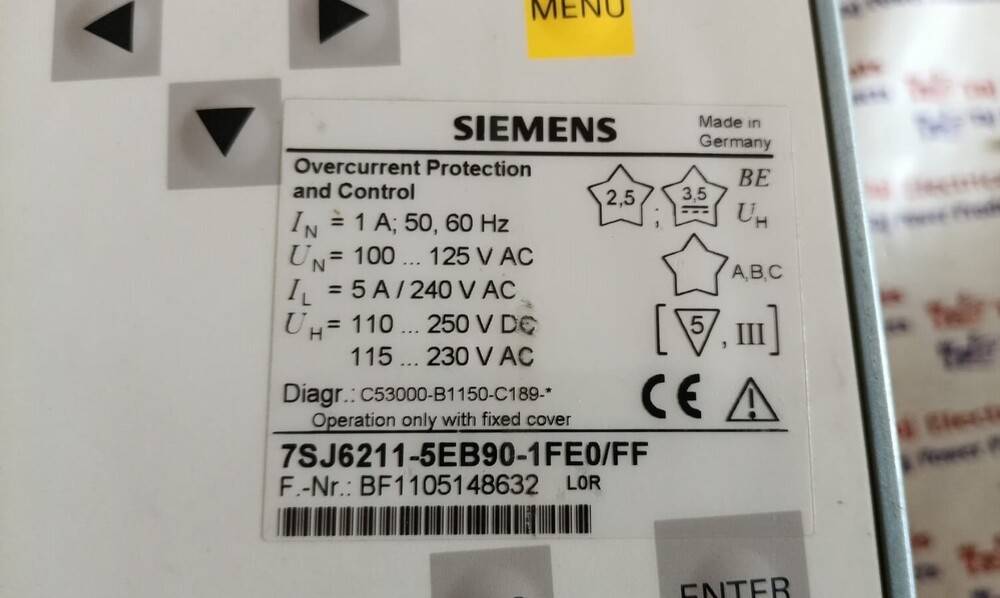

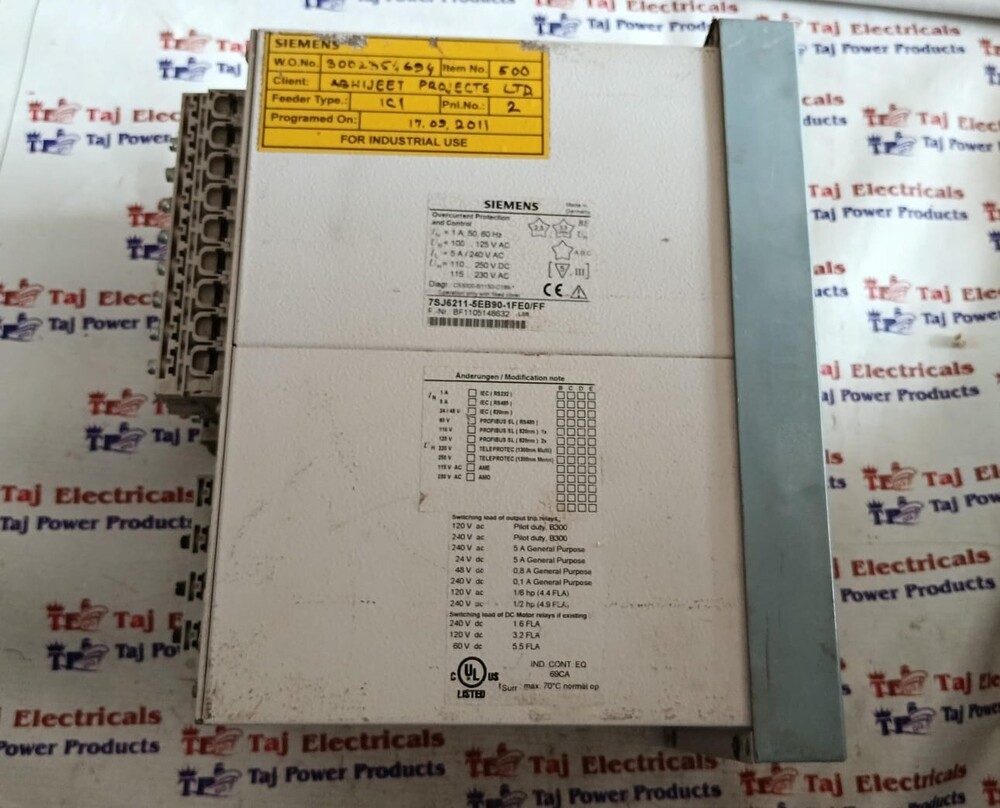

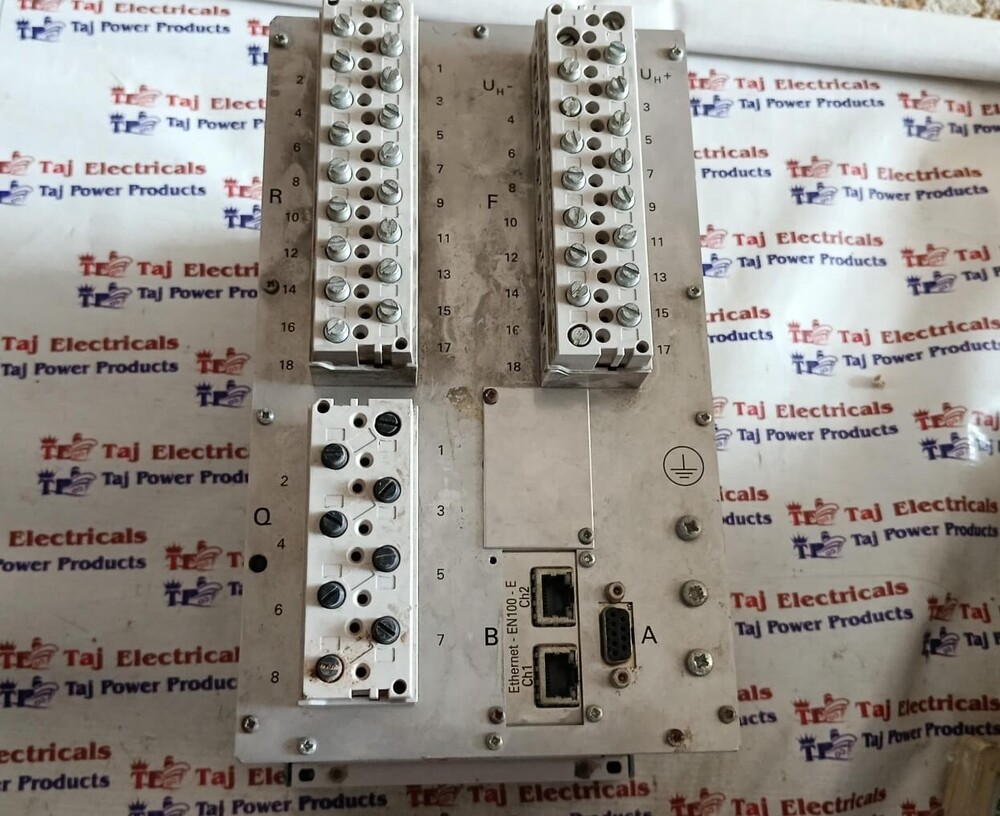

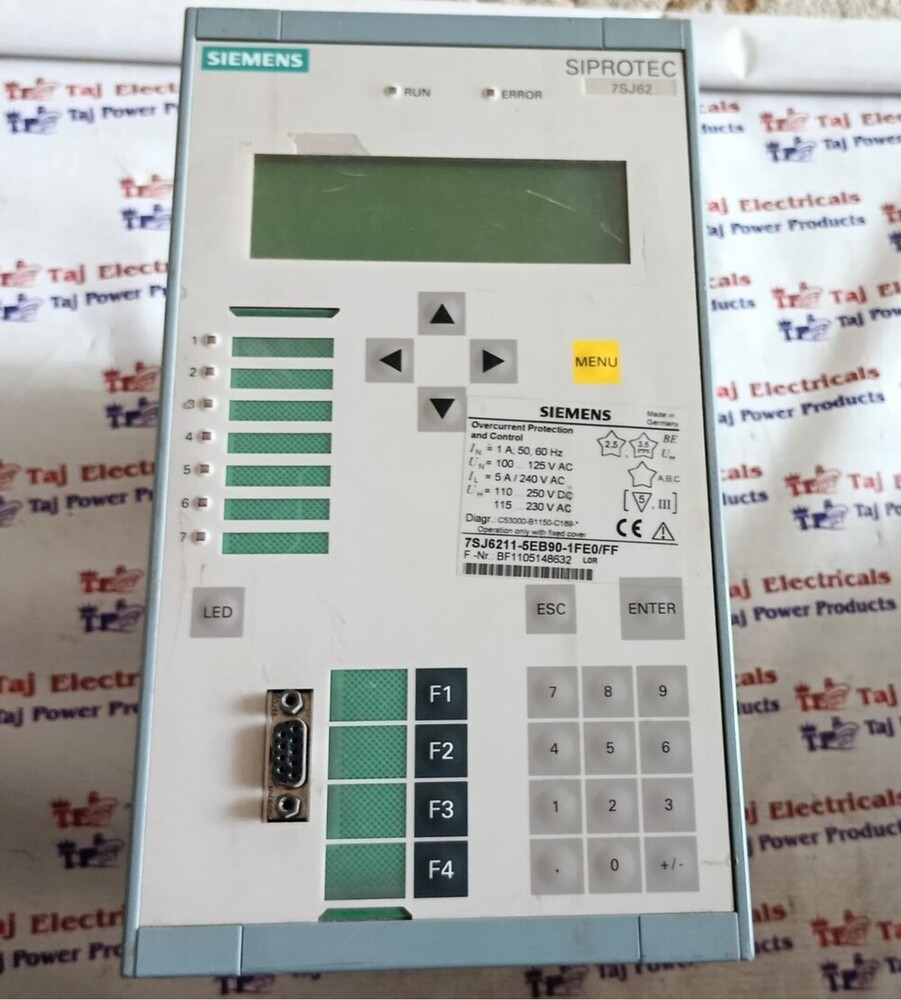

SIEMENS 7SJ6211-5EB90-1FE0/FF OVERCURRENT PROTECTION RELAY
SIEMENS 7SJ6211-5EB90-1FE0/FF OVERCURRENT PROTECTION RELAY
SIEMENS 7SJ6211-5EB90-1FE0/FF OVERCURRENT PROTECTION RELAY
SIEMENS 7SJ6211-5EB90-1FE0/FF OVERCURRENT PROTECTION RELAY
SIEMENS 7SJ6211-5EB90-1FE0/FF OVERCURRENT PROTECTION RELAY
SIEMENS 7SJ6211-5EB90-1FE0/FF OVERCURRENT PROTECTION RELAY
SIEMENS 7SJ6211-5EB90-1FE0/FF OVERCURRENT PROTECTION RELAY
SIEMENS 7SJ6211-5EB90-1FE0/FF OVERCURRENT PROTECTION RELAY
images Send Inquiry
Request To Call Back

SIEMENS 7SJ6211-5EB90-1FE0/FF OVERCURRENT PROTECTION RELAY

Get a Price/Quote
MOQ : 1 Piece

SIEMENS 7SJ6211-5EB90-1FE0/FF OVERCURRENT PROTECTION RELAY Specification

  • Features
  • Programmable, Event Recording, Fault Logging, Self Monitoring, Disturbance Recorder
  • Processor Type
  • Microprocessor Based
  • Screen Size
  • Graphical LCD Display
  • Automation Grade
  • Automatic
  • Weight
  • Approx. 2.8 kg
  • Mounting Type
  • Flush / Panel Mount
  • Control Type
  • Digital / Microprocessor
  • IP Rating
  • IP54
  • Application
  • Overcurrent and Earth Fault Protection Relay
  • Sensor Type
  • Current, Voltage, Earth Fault
  • Connectivity Type
  • RS485, Ethernet (optional)
  • Remote Control
  • Yes
  • Cable Length
  • As per connection requirement
  • Load Capacity
  • Configurable
  • Frequency
  • 50/60 Hz
  • Phase
  • Three Phase
  • Drive Type
  • Feeder / Relay Panel Integration
  • Material
  • Plastic, Metal
  • Power
  • 24-250 V DC / 110-240 V AC
  • Temperature
  • -25C to +70C Operating
  • Voltage
  • 110-240 V AC / 24-250 V DC
  • Measuring Inputs
  • 4 x Current / 4 x Voltage
  • Event Recorder
  • Up to 512 entries
  • Disturbance Recorder
  • Up to 8 s recording
  • Time Synchronization
  • SNTP, IRIG-B
  • Order Number
  • 7SJ6211-5EB90-1FE0/FF
  • Front Interface
  • USB
  • Binary Inputs/Outputs
  • 8 DI / 11 DO
  • Auxiliary Voltage
  • 85-265 V AC, 110-250 V DC
  • Model
  • SIPROTEC 7SJ62
  • Backup Memory
  • Non-volatile flash memory
  • Dimensions
  • 240 x 212 x 49 mm (approx.)
  • Communication Protocols
  • IEC 61850, DNP3, Modbus
  • Standards
  • IEC 60255 / IEC 61850


SIEMENS 7SJ6211-5EB90-1FE0/FF OVERCURRENT PROTECTION RELAY Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 100 Pieces Per Month
  • Delivery Time
  • 7 Days


About SIEMENS 7SJ6211-5EB90-1FE0/FF OVERCURRENT PROTECTION RELAY

SIEMENS 7SJ6211-5EB90-1FE0/FF OVERCURRENT PROTECTION RELAY


7SJ6211-5EB90-1FE0/FFisaSiemensSIPROTEC4digitalmultifunctionovercurrentprotectionrelaywithadvancedmonitoring,control,andcommunicationcapabilities.

Overview

The7SJ6211-5EB90-1FE0/FFispartoftheSIPROTEC4seriesofmultifunctionprotectionrelaysdesignedforbusbarfeederprotection,control,andmonitoringItisadigitalovercurrenttimeprotectionrelaythatintegratesfaultrecording,metering,andcommunicationinterfacesforindustrialandutilityapplications(Siemens).



KeySpecifications



Comprehensive Protection and Automation

The SIPROTEC 7SJ62 delivers automatic, microprocessor-based protection against overcurrent and earth faults, suitable for feeders and relay panel integrations. Its versatile measuring inputs and configurable load capacity ensure adaptability across a range of power system requirements. Advanced communication options, remote control, and programmable logic seamlessly support sophisticated grid automation and control strategies.


Reliable Event and Disturbance Recording

Equipped with a large memory capacity, the relay can log up to 512 event entries and record disturbance data for up to 8 seconds. This robust data capture enables detailed post-event analysis and supports preventive maintenance, enhancing grid reliability and operational resilience.


User-Friendly Design and Integration

The compact and flush/panel mount design, graphical LCD display, and multiple communication ports (USB, RS485, Ethernet) simplify installation and user interaction. With features like self-monitoring, programmable logic, and an IP54 rating, the device is tailored for ease of use, integration flexibility, and dependable long-term performance.

FAQ's of SIEMENS 7SJ6211-5EB90-1FE0/FF OVERCURRENT PROTECTION RELAY:


Q: How is the SIEMENS SIPROTEC 7SJ62 overcurrent protection relay installed and mounted?

A: This relay is designed for easy flush or panel mounting, allowing straightforward integration into existing relay panels or switchboards. Its compact dimensions (approximately 240 x 212 x 49 mm) and clearly labeled connections contribute to hassle-free installation.

Q: What communication protocols does the SIEMENS 7SJ6211-5EB90-1FE0/FF relay support, and how does this benefit integration?

A: The relay supports IEC 61850, DNP3, and Modbus protocols, facilitating interoperability with various substation automation and SCADA systems. These protocols enable reliable data exchange and centralized monitoring, enhancing overall automation efficiency.

Q: When should I use this relay for my protection needs?

A: This device is ideal for applications requiring fast and reliable overcurrent and earth fault protection, especially in three-phase power systems found in industrial, utility, or infrastructure environments. Its advanced features also suit installations needing detailed event or disturbance recording.

Q: Where can the event and disturbance recordings be accessed, and how are they useful?

A: Event and disturbance data are stored in the relay's internal non-volatile flash memory and can be accessed through the USB front interface or via Ethernet/RS485 connections. These records support fault analysis, enabling maintenance teams to diagnose and resolve issues efficiently.

Q: What are the main benefits of using the SIPROTEC 7SJ62 overcurrent protection relay?

A: Key benefits include robust protection functions, extensive programmability, comprehensive event and fault logging, advanced communication capabilities, and high operational reliability due to self-monitoring and flexible power supply options.

Q: How is time synchronization handled in this relay, and why is it important?

A: Time synchronization is achieved via SNTP or IRIG-B, ensuring accurate time-stamping of events and data logs. This accuracy is crucial for correlating incidents and maintaining precise operational records in multi-device power systems.
