About SIEMENS 7SJ6101-5EB22-1FA0/EE OVERCURRENT PROTECTION RELAY

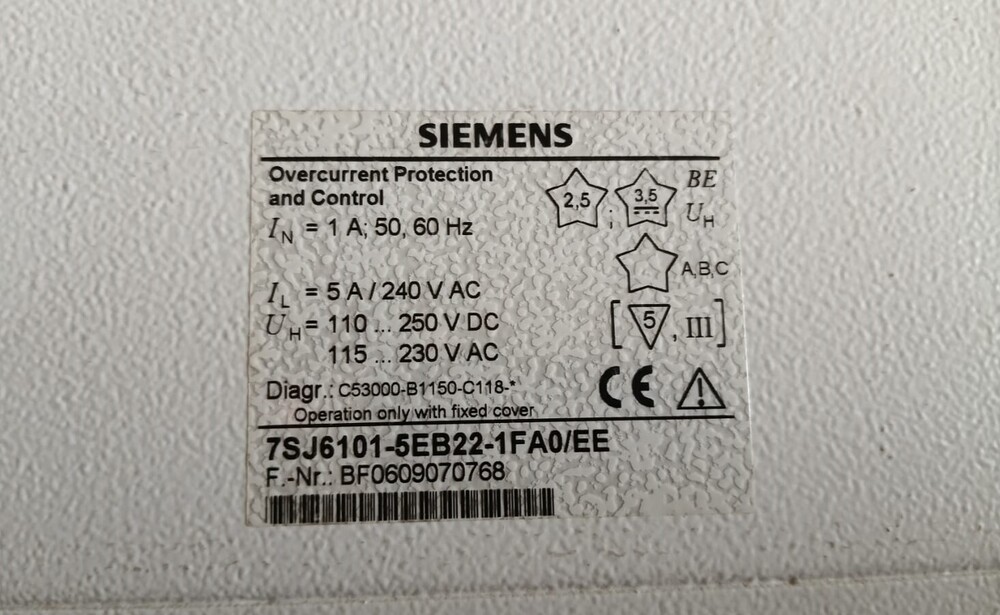

SIEMENS 7SJ6101-5EB22-1FA0/EE OVERCURRENT PROTECTION RELAY

SIEMENS 7SJ6101-5EB22-1FA0/EEis a multi-functional protective relaydesigned for line protection in high and medium voltage networks. It features a 4 x 20 character backlit display7 programmable LEDsand is suitable for various applications, including asynchronous motors and busbar feeders. The relay supports IEC 60870-5-103communication protocols and includes functions such as phase current transformerfault recordingand overcurrent protection.

Advanced Protection and Monitoring

The SIEMENS 7SJ6101-5EB22-1FA0/EE relay offers advanced overcurrent and earth fault protection, supported by reliable trip circuit supervision and up to 100 fault event recordings. It integrates seamlessly within medium and low voltage systems, ensuring timely detection and response to electrical faults. Its multi-functionality enhances the operational safety of your infrastructure.


Flexible Communication and Integration

This relay is equipped with multiple serial communication protocols, such as Modbus, Profibus, and IEC 60870-5-103, allowing seamless integration with SCADA systems and remote control platforms. The device is ideal for panel-mount or rack mounting, supporting extensive connectivity and flexible application in automation and power distribution projects.


User-Friendly Configuration and Operation

Configuration of protection settings and monitoring is straightforward, accessible either with front panel keys or via PC software (DIGSI). The multi-line LCD and LED displays deliver real-time status updates, while the multilingual support (English, German, others) ensures ease of use across diverse teams. The IP54/IP20-rated enclosure offers protection for deployment in challenging conditions.
