SIEMENS 6AV2124-1QC02-0AX0 HMI

Get a Price/Quote

MOQ : 1 Piece

SIEMENS 6AV2124-1QC02-0AX0 HMI Specification

Mounting Type
Panel Mount

Cable Length
User Defined

Control Type
Touch Control

Connectivity Type
Ethernet, USB, Profinet

Features
High Resolution, Wide Viewing Angle, Fast Response Time

IP Rating
IP65 (front), IP20 (rear)

Weight
Approx. 2.5 kg

Application
Industrial Automation

Screen Size
12.1 Inch TFT (Touch)

Automation Grade
Automatic

Frequency
50/60 Hz

Phase
Single Phase

Remote Control
Yes

Processor Type
ARM RISC Processor

Material
Plastic and Aluminum

Power
DC 24 V

Temperature
0 to 50C (Operation)

Voltage
24 V DC

Storage Temperature
-20 to +60C

Protection Against Vibration
Tested as per IEC 60068-2-6

SD Card Slot
2 (for memory expansion)

Number of Ethernet Ports
2

Display Resolution
1280 x 800 pixels

Touch Technology
Analog resistive

USB Ports
2 x USB 2.0

Color Support
16 million colors

Backlight
LED

Firmware Upgrade
Supported via USB/Ethernet

Relative Humidity
10% to 90%, non-condensing

Operating System
WinCC Comfort/Advanced

Product Series
Siemens SIMATIC HMI KTP1200 Basic

SIEMENS 6AV2124-1QC02-0AX0 HMI Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About SIEMENS 6AV2124-1QC02-0AX0 HMI

SIEMENS 6AV2124-1QC02-0AX0 HMI

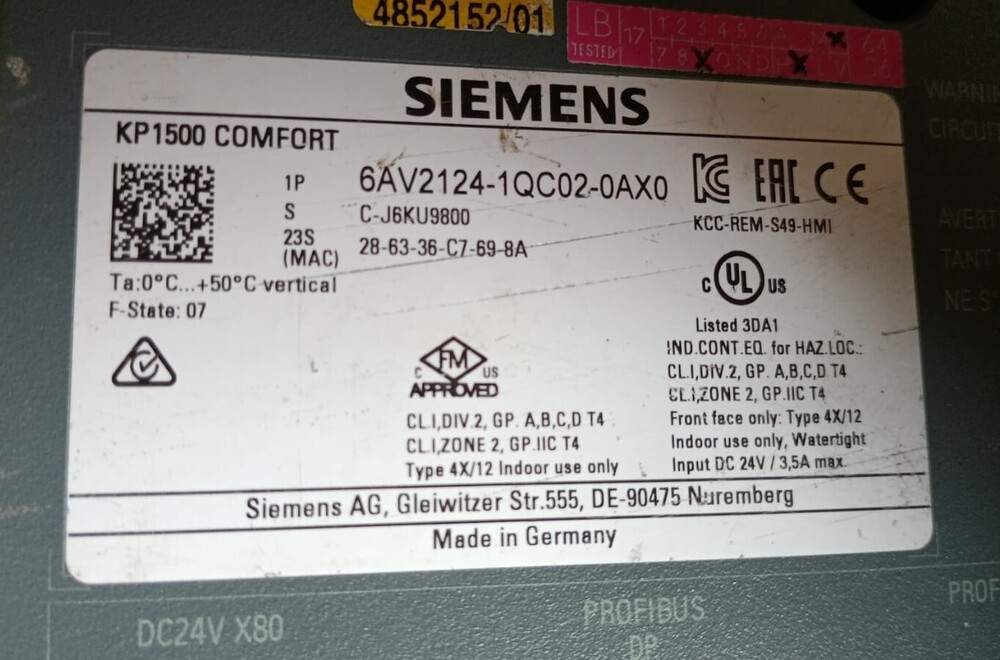

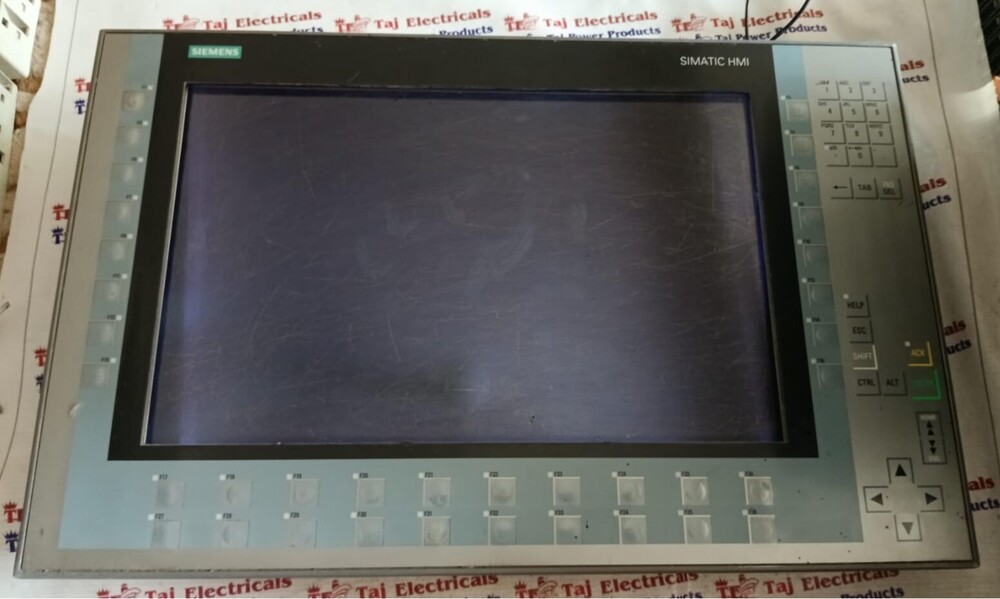

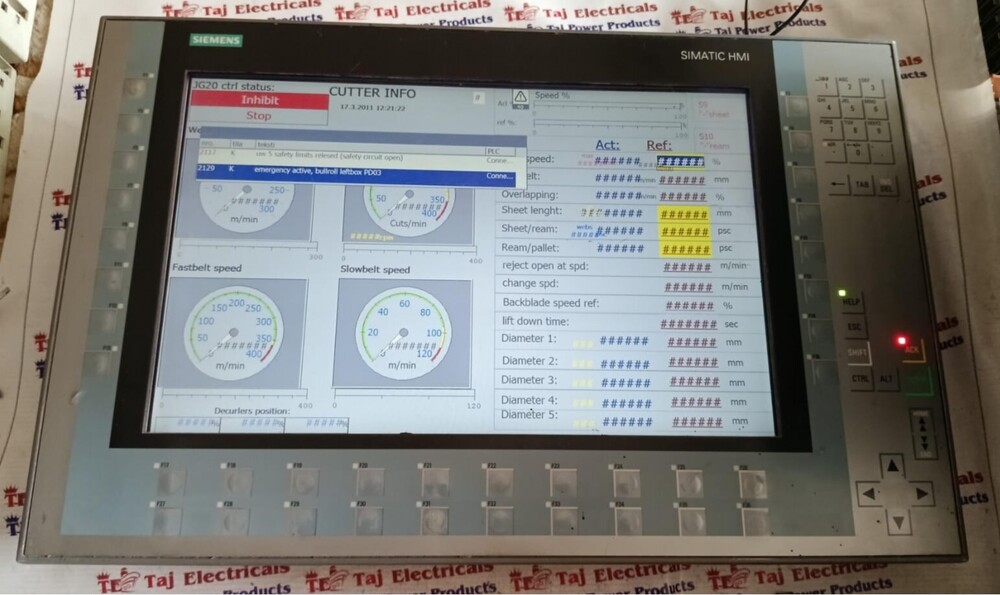

SIMATIC HMI KP1500 COMFORT, COMFORT PANEL, KEY OPERATION, 15 WIDESCREEN-TFT-DISPLAY, 16 MIL. COLORS, PROFINET INTERFACE, MPI/PROFIBUS DP INTERFACE, 24 MB USER MEMORY, WINDOWS CE 6.0,

Versatile Performance for Industrial Applications

Designed for demanding industrial environments, the SIEMENS KTP1200 Basic HMI blends robust hardware with advanced connectivity. Its ARM RISC processor and WinCC Comfort/Advanced operating system deliver smooth and responsive control, while the IP65-rated front panel enables installation in harsh settings.

User-Friendly Interface and Connectivity

This HMI ensures intuitive operation through a 12.1-inch touch display with fast response time, wide viewing angles, and high color support. With multiple connectivity options-including Ethernet, USB, and Profinet-it integrates seamlessly into varied automation setups, supporting remote control and efficient data transfer.

FAQ's of SIEMENS 6AV2124-1QC02-0AX0 HMI:

Q: How do I upgrade the firmware on the SIEMENS 6AV2124-1QC02-0AX0 HMI?

A: Firmware upgrades can be performed via USB or Ethernet. Simply download the latest firmware package from Siemens' official website, transfer it to a USB drive or deploy it over Ethernet, and follow the on-device prompts to complete the update.

Q: What are the main benefits of the dual SD card slots on this HMI?

A: The two SD card slots enable flexible memory expansion and data storage. This helps in archiving operation logs, recipes, and project backups, ensuring enhanced reliability and prompt restoration in case of data loss.

Q: When is the SIEMENS KTP1200 Basic HMI typically used?

A: This HMI is used in a variety of industrial automation applications, including process monitoring, machine control, and system integration across sectors such as manufacturing and utilities. Its robust design and versatile features make it suitable for continuous operation in demanding environments.

Q: Where can I mount the SIEMENS 6AV2124-1QC02-0AX0?

A: The unit is designed for panel mount installation, ensuring secure placement in control cabinets. Its IP65-rated front provides dust and water protection in exposed industrial settings, while the rear IP20 rating is intended for enclosed use.

Q: What is the process for connecting the HMI to an automation network?

A: You can connect the HMI using its two Ethernet ports, facilitating communication with PLCs and other networked devices via Profinet or standard Ethernet protocols. Configuration is done through WinCC Comfort/Advanced, which simplifies network setup and device integration.

Q: How does the analog resistive touch technology benefit users?

A: Analog resistive touchscreen technology allows for accurate input, even when operators are wearing gloves or have slightly damp hands. This capability makes the HMI highly practical for use in industrial setups where hygiene or safety demands the use of protective gear.
