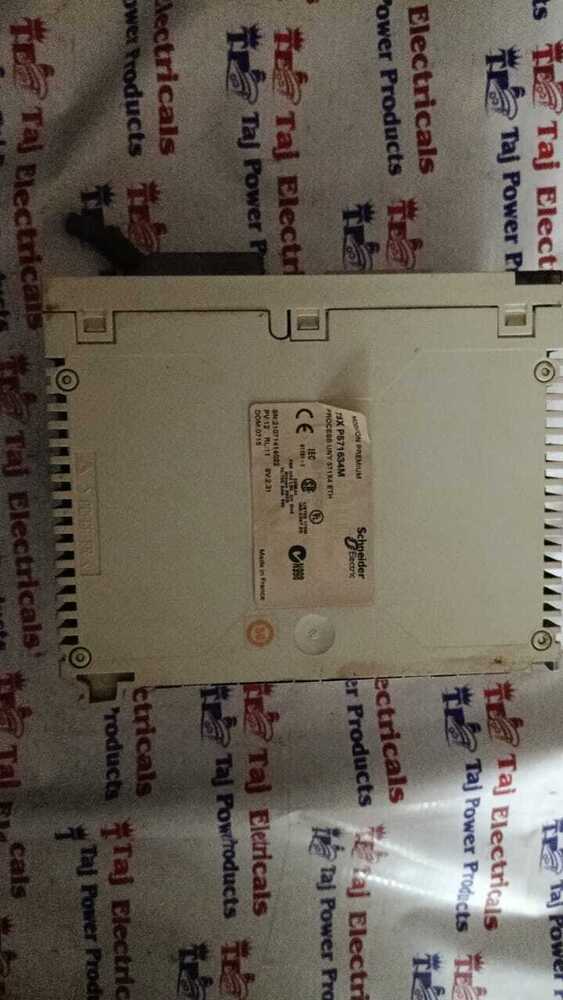

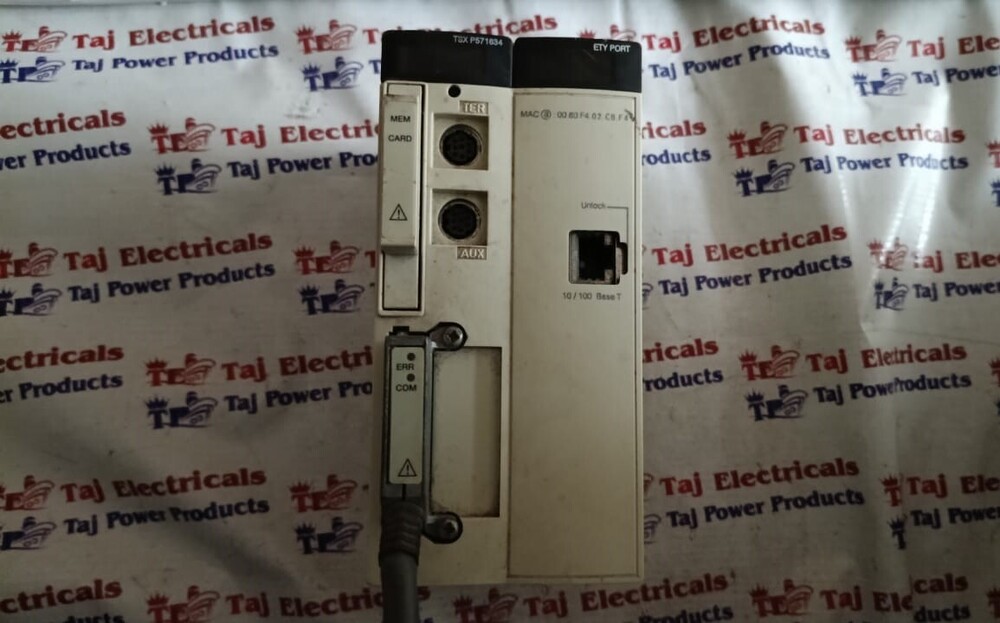

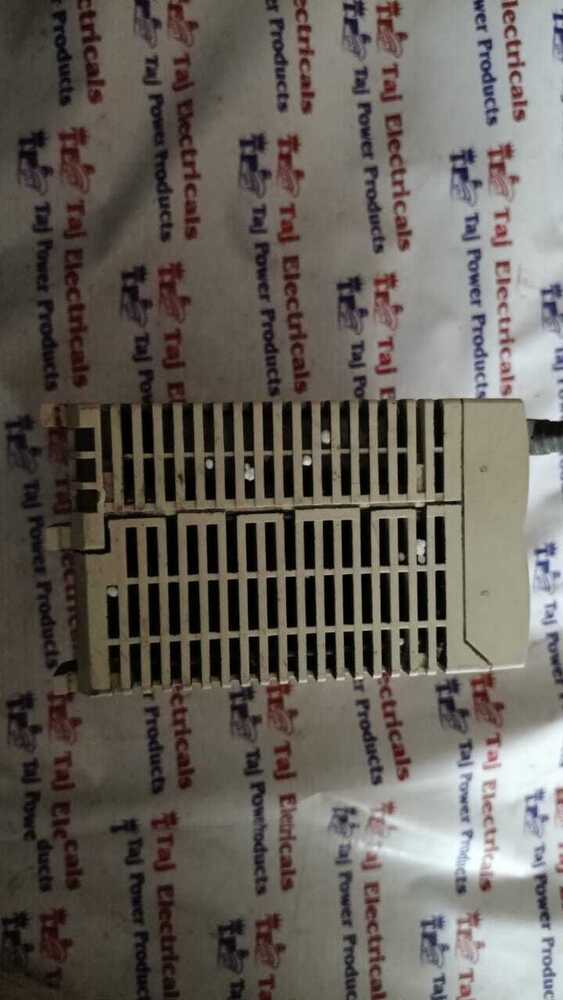

SCHNEIDER TSXP571634M PLC

SCHNEIDER TSXP571634M PLC

SCHNEIDER TSXP571634M PLC

SCHNEIDER TSXP571634M PLC

SCHNEIDER TSXP571634M PLC

SCHNEIDER TSXP571634M PLC

SCHNEIDER TSXP571634M PLC

SCHNEIDER TSXP571634M PLC

Send Inquiry

Request To Call Back

SCHNEIDER TSXP571634M PLC

Get a Price/Quote

MOQ : 1 Piece

SCHNEIDER TSXP571634M PLC Specification

Cable Length
Depends on connected modules

Frequency
50/60 Hz

Control Type
Programmable Logic Controller (PLC)

Remote Control
Yes

Phase
Single Phase

Mounting Type
Rack Mount

Features
Expandable I/O, Built-in communication ports, Modular design

IP Rating
IP20

Speed Range
Processor cycle time: 1 ms/Kinstr

Application
PLC Automation Systems, Industrial Process Control

Processor Type
Intel 386 EX (or equivalent)

Load Capacity
128 Kwords program, 32 Kwords data memory

Weight
Approx. 0.65 Kg

Connectivity Type
RS485, Ethernet (with module)

Sensor Type
Compatible with digital and analog input modules

Automation Grade
Industrial

Material
Plastic, Metal

Power
3.5 W

Temperature
0C to 60C (Operating); -25C to 70C (Storage)

Voltage
24 V DC

Expansion Options
Supports additional communication and I/O modules

Backup Battery
Supported (optional)

Memory
512 KB RAM, 2 MB Flash

Input Type
Digital/Analog (with modules)

Programming Language
Ladder, Structured Text, Function Block Diagram (according to IEC 61131-3)

Output Type
Relay/Transistor (with modules)

Cooling Type
Natural convection

Series
Premium

Diagnostic Function
Yes (LED indication and software diagnostics)

Number of I/O Points
Up to 3072

Model Number
TSXP571634M

Dimension
165 mm x 62 mm x 175 mm

About SCHNEIDER TSXP571634M PLC

SCHNEIDER TSXP571634M PLC

Schneider TSXP571634Mis a high-performance processor module designed for industrial automation. Key features include:

Unity ProcessorIntegrates seamlessly into Schneider's Modicon Premium Automation platform.
Internal RAM96kB data, ensuring efficient operation in demanding environments.
Connectivity: Supports EtherNet TCP/IP and Ethernet ports for reliable data exchange.
Modular DesignCompatible with multiple rack configurations, accommodating up to 128 slots.
Current Consumption: Operates at 1650 mA @ 5 V DC, ensuring stable performance.

Flexible and Scalable Automation Solution

The TSXP571634M PLC offers outstanding scalability for growing automation needs, with flexible expansion slots supporting various digital and analog input/output modules. Its modular design enables easy adaptation to a wide range of industrial applications, optimizing both performance and future upgrade potential.

Advanced Diagnostics and Durable Design

This PLC incorporates comprehensive diagnostic features, including LED indicators and software-based fault detection, ensuring swift issue resolution. Made from robust plastic and metal materials, and rated for industrial environments (IP20), it reliably withstands demanding operating conditions with minimal maintenance.

FAQ's of SCHNEIDER TSXP571634M PLC:

Q: How can I expand the I/O capabilities of the SCHNEIDER TSXP571634M PLC?

A: The I/O capabilities of the TSXP571634M can be expanded by adding compatible digital and analog input/output modules to the main rack. The modular design supports up to 3072 I/O points, making it suitable for increasingly complex automation requirements.

Q: What programming languages are supported by the TSXP571634M PLC, and what are the benefits?

A: The PLC is compatible with Ladder, Structured Text, and Function Block Diagram programming languages according to IEC 61131-3. This allows engineers to select the most effective method for their application, enhancing flexibility and simplifying system integration.

Q: When is it necessary to use the optional backup battery in this PLC?

A: The optional backup battery is recommended when you need to retain program and data memory during power outages. It helps preserve critical operational parameters and avoid data loss in applications where continuous operation is essential.

Q: Where is the TSXP571634M PLC typically installed and what mounting type does it use?

A: This controller is designed for industrial environments and uses rack mounting. It is commonly installed within control panels or automation cabinets in process control, manufacturing, and industrial automation systems.

Q: What diagnostic and safety features are available on the TSXP571634M PLC?

A: The PLC features built-in LED status indications and advanced software diagnostics. These facilitate efficient monitoring, easy troubleshooting, and rapid maintenance, minimizing downtime and supporting safe operation.

Q: How does the PLC connect to industrial networks and remote systems?

A: The TSXP571634M supports RS485 connectivity natively and Ethernet through add-on modules. This provides seamless integration with supervisory and remote control systems, supporting flexible wired communication options to suit varied automation network needs.
