About SCHNEIDER BSH0703P1JA2A SERVO MOTOR

SCHNEIDER BSH0703P1JA2A SERVO MOTOR

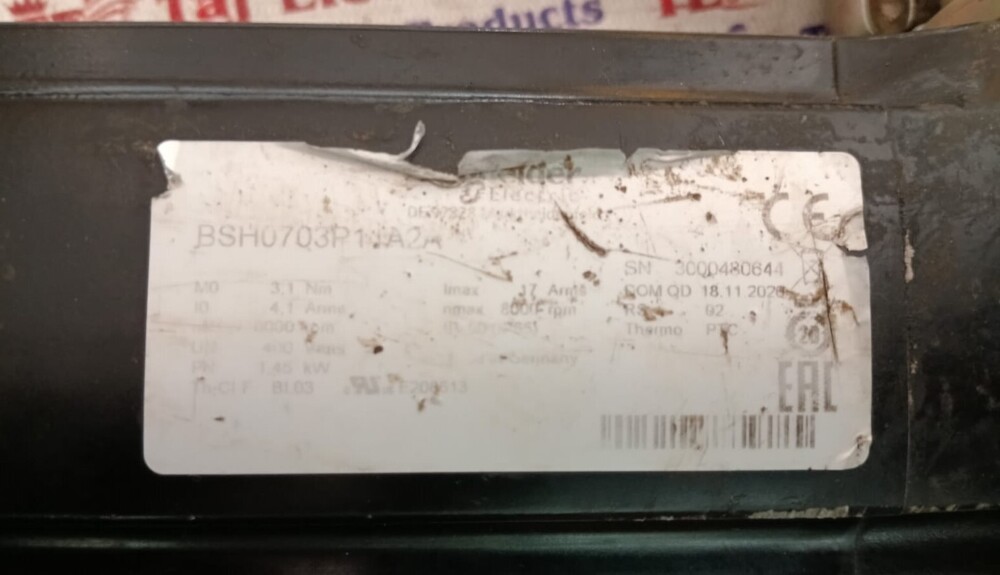

Schneider BSH0703P1JA2Ais a 6-pole AC servo motorwith the following specifications:

• Speed: Maximum mechanical speed of 8000 RPMTorque: 1.5 kWat 480VAC.

• Dimensions: 220mm (Length) x 70mm (Width)with a 14mm (Diameter) x 30mm (Length)shaft.

• Encoders: Equipped with a SinCos Hiperface high-resolution absolute encoderfor precise angular position.

• IP Rating: IP54 for dust and water resistance.

Precision and Reliability for Industrial Automation

The SCHNEIDER BSH0703P1JA2A Servo Motor integrates high dynamic performance with precision control, making it suitable for various applications such as CNC machinery, robotics, and conveyor systems. Its 2048 PPR encoder and robust build ensure accurate feedback and long-lasting operation without the need for frequent maintenance. With overload protection and sealed ball bearings, this servo motor stands out in demanding industrial environments.


Versatile Performance with Easy Integration

Supporting both single and three-phase 230V AC power, the BSH0703P1JA2A model is flexible for installation in existing systems. Its compatibility with standard servo drives and flange mounting allows seamless integration into a wide range of setups. The natural cooling mechanism and strong insulation provide consistent performance across a 4700 RPM speed range and diverse temperature conditions.
