About SCHMERSAL SRB 301MC-24V RELAY

SCHMERSAL SRB 301MC-24V RELAY

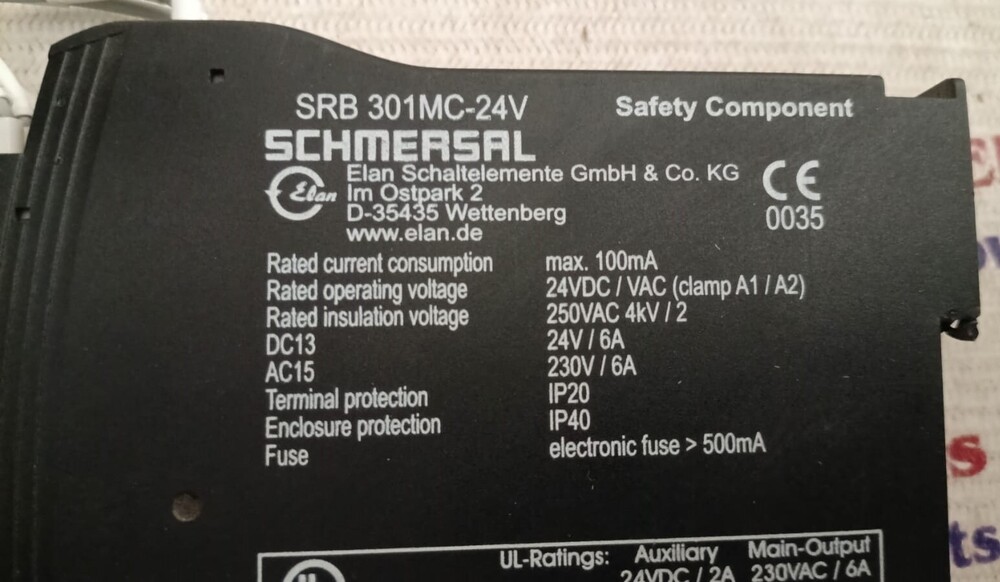

Manufacturer: SCHMERSAL

Type: Safety Relay

Model: SRB301MC-24V

Features:

• Suitable for the signal processing of outputs with contact sensors
• 3 safety contacts, STOP 0
• 1 Signalling output Suitable for signal processing of outputs connected to potentials (AOPDs), e.g. safety light grids/curtains
• Suitable for the signal processing of outputs with contact sensorsRated Current Consumption: 100 mA

  Rated Operating Voltage: 24 VDC/VAC

The SRB 301MC 24V is a general purpose Safety Controller for dry contact and PNP-type input monitoring. It is equipped for connection of one input device in single- or dual-channel configuration. In addition it features feedback monitoring of positive-guided controlled loads, automatic or manual reset and optional cross-short recognition.

Advanced Safety and Reliability

Certified under EN 60204-1, IEC 60947-5-1, and EN ISO 13849-1 standards, the SRB 301MC-24V safety relay ensures dependable safeguarding of personnel and machinery. With short circuit and overload protection, high insulation resistance, and over 10 million mechanical operations, it enhances both safety and productivity in demanding environments.


Efficient Installation and Versatility

The DIN rail mounting system and compact dimensions (87 mm x 22.5 mm x 108 mm) streamline panel integration and conserve valuable space. The relay's screw terminals and LED status indication simplify both wiring and monitoring, making it adaptable for a wide range of safety applications in industrial settings.


Robust Performance in Harsh Conditions

Engineered to withstand shocks up to 30 g, vibrations from 10 to 55 Hz, and extreme temperatures from -25C to +55C, the SRB 301MC-24V excels in rigorous industrial environments. Its plastic enclosure and yellow-black design offer both durability and clear, immediate identification within control cabinets.
