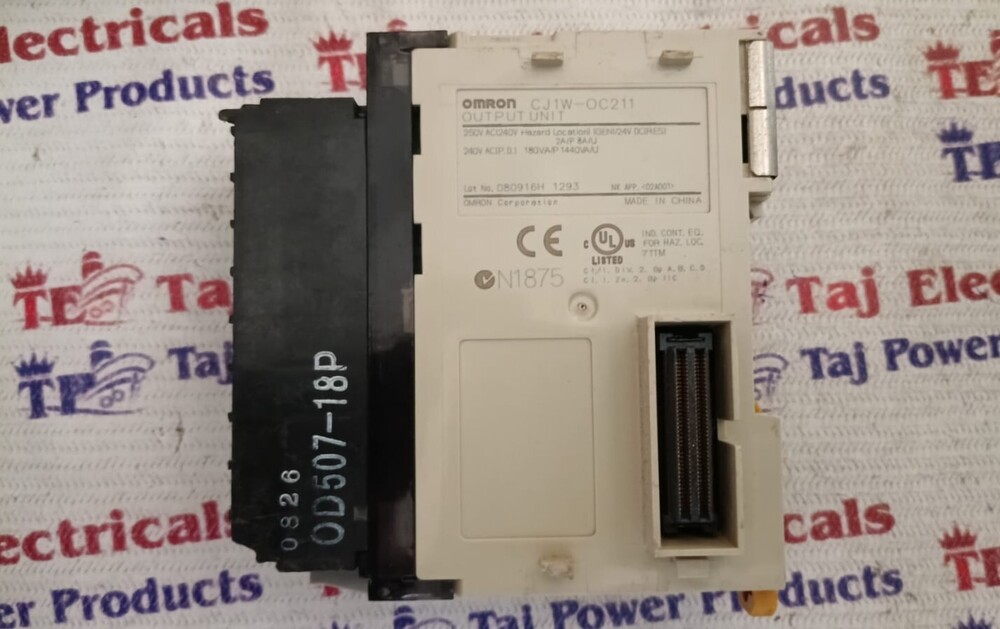

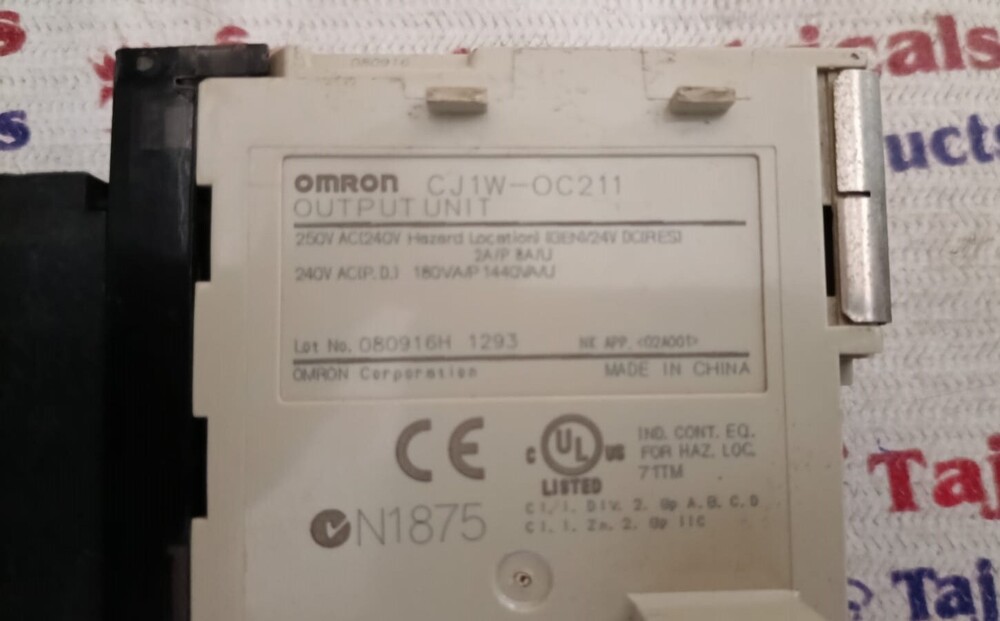

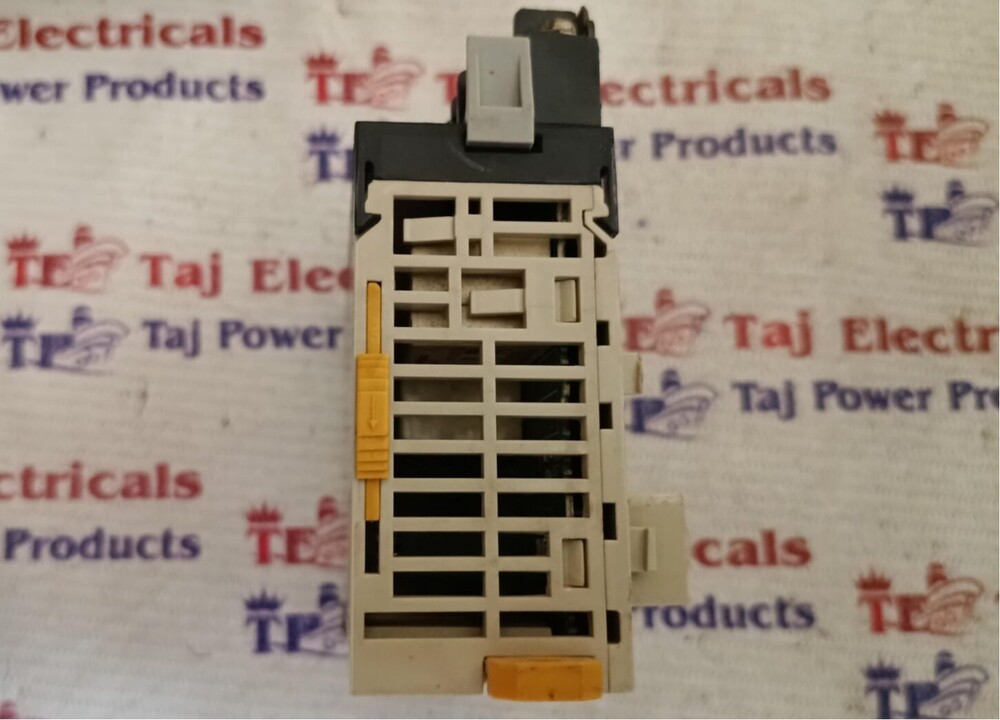

OMRON CJ1W-OC211 PLC

Get a Price/Quote

MOQ : 1 Piece

OMRON CJ1W-OC211 PLC Specification

Remote Control
Yes

Application
Industrial Automation, Output control in PLC systems

Phase
Single Phase

Automation Grade
Automatic

Cable Length
Depends on system design

Processor Type
Not Applicable (I/O module)

Mounting Type
DIN Rail Mounting

Frequency
50/60 Hz

Features
Short-circuit protection, LED Output status indicator, Removable terminal block

Control Type
Relay Output Control

IP Rating
IP20

Weight
Approx. 150g

Connectivity Type
Backplane bus

Load Capacity
2A/output, Total 8A/module

Material
FIBER

Power
24V DC (supplied from backplane)

Temperature
Operating: 0C to 55C, Storage: -20C to 75C

Voltage
24VDC (output) / 240VAC (max load output)

OMRON CJ1W-OC211 PLC Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

Packaging Details
AS PER CUSTOMER REQUIREMENT

Main Export Market(s)
Australia, Western Europe, Middle East, Africa, South America, Asia, Central America, Eastern Europe, North America

Main Domestic Market
All India

About OMRON CJ1W-OC211 PLC

OMRON CJ1W-OC211 PLC

The Omron CJ1W-OC211 Output Unit supports 16 relay outputs rated 2 A at 250 VAC or 24 VDC, designed with screw terminals for stable relay-based control output.

Efficient Relay Output for Automation

OMRON CJ1W-OC211 delivers outstanding output control for CJ1 and CJ2 Series PLCs. Featuring eight relay channels, the module ensures precise automation for industrial processes. The built-in photocoupler and relay isolation enhance operational reliability and protect against electrical disturbances, making it a trusted solution for seamless factory automation.

Rugged Design with Advanced Protection Features

The CJ1W-OC211 is constructed using resilient fiber materials, ensuring longevity and resistance to harsh conditions. Its IP20 rating, short-circuit protection, and LED output status indicators prevent damage and simplify troubleshooting. Removable terminal blocks support easy wiring changes, streamlining installation or replacement in dynamic production setups.

FAQs of OMRON CJ1W-OC211 PLC:

Q: How does the OMRON CJ1W-OC211 ensure electrical isolation and safety during operation?

A: The CJ1W-OC211 employs both photocoupler and relay isolation techniques, protecting connected devices and the PLC from surges and electrical disturbances. This design mitigates the risk of cross-interference and enhances system reliability in industrial environments.

Q: What are the recommended installation and operating conditions for this relay output unit?

A: It is designed for DIN rail mounting in control panels and operates efficiently within 0C to 55C. Ensure the power supply is 24V DC from the PLC backplane, and the output does not exceed 2A per channel or 8A per module for optimal performance and longevity.

Q: When should the CJ1W-OC211 module be used in an industrial automation system?

A: This module is ideal when relay output control of devices like solenoids, lamps, motors, or other actuators is required within a CJ1 or CJ2 Series PLC-based automation system, especially when electrical isolation and robust operation are needed.

Q: Where can I integrate the CJ1W-OC211 in a PLC setup?

A: The module is intended for use within CJ1 or CJ2 Series PLC enclosures. It connects to the backplane bus and is suitable for installation in distributed control systems across factories or industrial sites.

Q: What is the process for connecting and maintaining output devices with the CJ1W-OC211?

A: Connect external load devices via the removable terminal block, which simplifies wiring and maintenance. The LED output status indicators assist in quickly verifying operation and diagnosing system faults during regular checks.

Q: What benefits does the CJ1W-OC211 provide over traditional output modules?

A: It offers rapid response times (10 ms ON/OFF), reliable isolation, durable materials, short-circuit protection, and convenient status LEDs. These features collectively enhance automation reliability and ease technical support or replacement.
