MICOM P143 P14331007M0468J PROTECTION RELAY (NOT WORKING)
MICOM P143 P14331007M0468J PROTECTION RELAY (NOT WORKING)
MICOM P143 P14331007M0468J PROTECTION RELAY (NOT WORKING)
MICOM P143 P14331007M0468J PROTECTION RELAY (NOT WORKING)
MICOM P143 P14331007M0468J PROTECTION RELAY (NOT WORKING)
MICOM P143 P14331007M0468J PROTECTION RELAY (NOT WORKING)
MICOM P143 P14331007M0468J PROTECTION RELAY (NOT WORKING)
MICOM P143 P14331007M0468J PROTECTION RELAY (NOT WORKING)
images Send Inquiry
Request To Call Back

MICOM P143 P14331007M0468J PROTECTION RELAY (NOT WORKING)

Get a Price/Quote
MOQ : 1 Piece

MICOM P143 P14331007M0468J PROTECTION RELAY (NOT WORKING) Specification

  • Contact Material
  • Silver alloy contacts
  • Working Temperature
  • -25C to +70C
  • Coil Power
  • Not applicable (microprocessor-based relay)
  • Contact Resistance
  • <100m
  • Protect Feature
  • Distance, Overcurrent, Earth Fault & Breaker Failure Protection
  • Contact Form
  • SPDT/DPDT (varies by model function)
  • Dielectiric Strength
  • 2kV RMS 50Hz for 1 min between circuits
  • Coil Voltage
  • Not applicable (microprocessor-based relay)
  • Mechanical Life
  • >10 million operations (relay contacts)
  • Ambient Temperature
  • -10C to +55C
  • Power Consumption
  • <20VA or <20W (typical)
  • Product Type
  • Numerical Protection Relay (Distance Protection, Feeder Protection, Breaker Failure, etc.)
  • Insulation Resistance
  • >100M at 500V DC
  • Theory
  • Microprocessor-based numerical protection
  • Usage
  • Protection relay for electrical systems
  • Contact Load
  • 5A at 250V AC/30V DC (for output contacts)
  • Operate Time
  • Typically < 30 ms depending on function

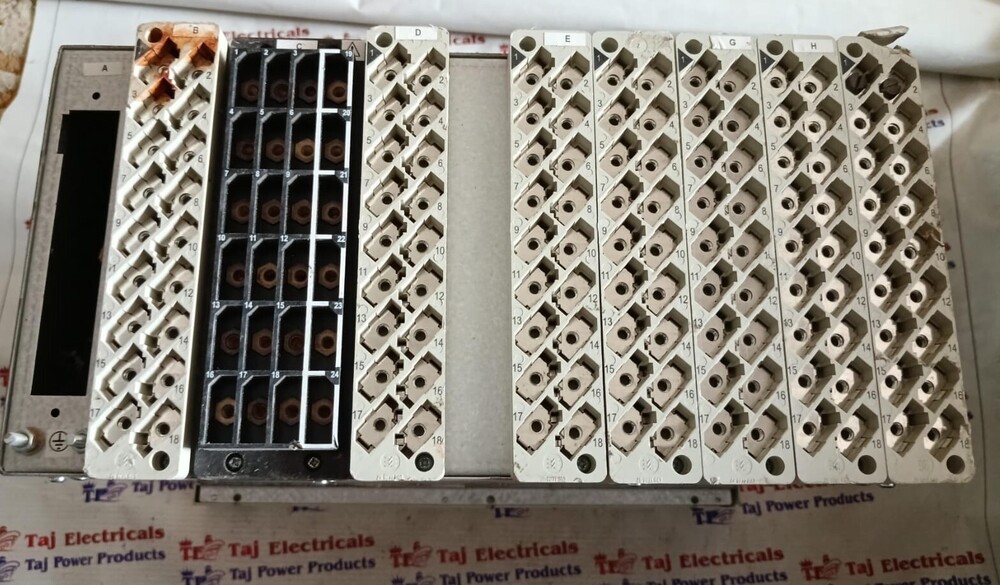

  • Terminal Type
  • Screw terminals (plug-in removable function block)
  • Rated Voltage
  • 24-250V AC/DC (universal auxiliary supply)
  • Supply Terminal
  • Rear panel terminals
  • Size
  • Standard 4U relay case
  • Color
  • Grey/Black front panel
  • Dimension (L*W*H)
  • Approximately 220mm x 105mm x 240mm
  • Weight
  • Approx. 3.2 kg
  • Inputs
  • Digital (configurable) & Analog CT/VT inputs

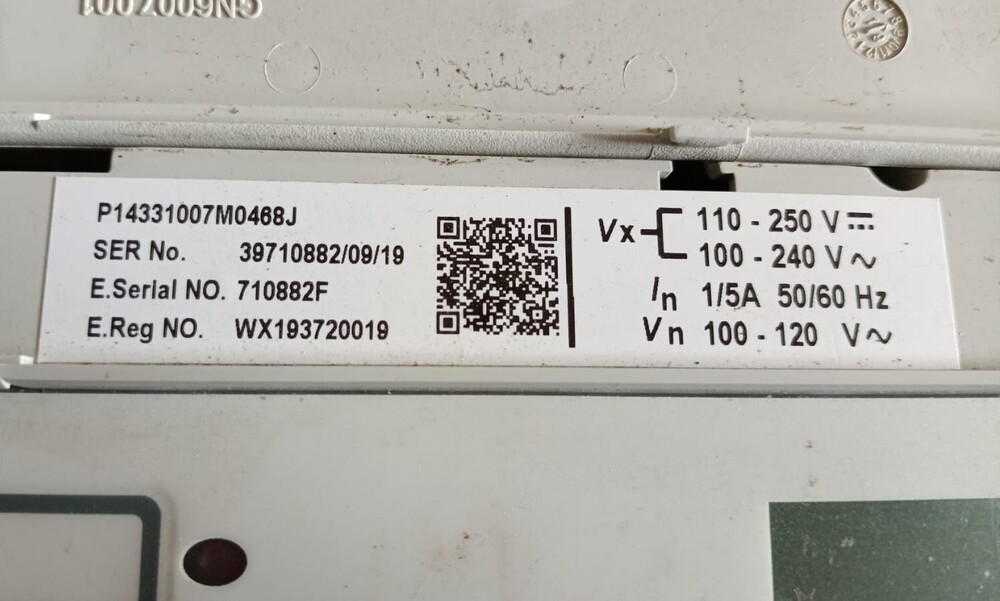

  • Model Number
  • P14331007M0468J
  • Relay Status
  • NOT WORKING (faulty/no operation confirmed)
  • Mounting Type
  • Flush panel mount
  • Self Diagnostics
  • Automated startup and runtime health check
  • Firmware Upgradeability
  • Yes, via front port or network
  • Outputs
  • Configurable relay outputs (trip, alarm, indication, etc.)

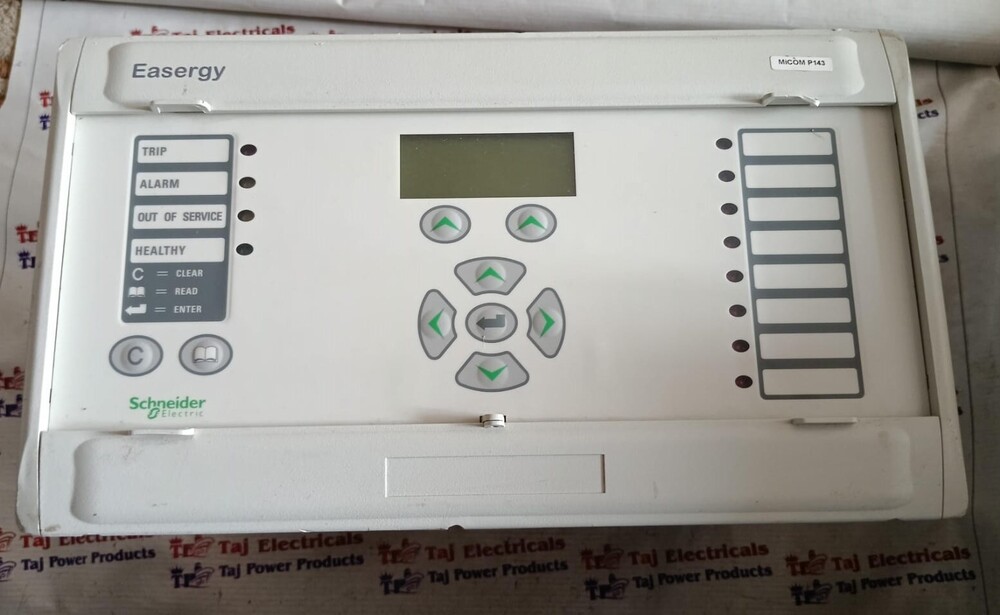

  • Display Type
  • Graphical LCD with keypad interface
  • Communication Ports
  • RS232, RS485, Front and Rear Fibre Optic (IEC 60870-5-103, Modbus, DNP3)
  • Event/Fault Recording
  • Yes, with time stamp (non-volatile memory)


MICOM P143 P14331007M0468J PROTECTION RELAY (NOT WORKING) Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 100 Pieces Per Month
  • Delivery Time
  • 7 Days


About MICOM P143 P14331007M0468J PROTECTION RELAY (NOT WORKING)

MICOM P143 P14331007M0468J RELAY (NOT WORKING)


Model Name/Number p143 Relay Type Distance Protection, Feeder Protection, Motor Protection Brand Schneider Application:The MiCOM P14x range is suitable for all applications



Advanced Numerical Protection

The MICOM P143 is engineered to safeguard electrical systems through a suite of protection features including distance, overcurrent, earth fault, and breaker failure protection. Its microprocessor-based architecture ensures precision, speed, and adaptability, making it suitable for both new installations and upgrades. Reliable operation is assured by automated testing during startup and runtime.


Versatile Communication and Configuration

Designed for modern substations, this relay supports multiple communication protocols-IEC 60870-5-103, Modbus, and DNP3-across RS232, RS485, and fibre optic ports. Local operation is facilitated by a graphical LCD and keypad, while both digital and analog inputs allow extensive application. Outputs are programmable for trip, alarm, and more.


Rugged Construction and Easy Maintenance

Built to endure challenging environments, the MICOM P143 relay operates efficiently in temperatures ranging from -25C to +70C. Its robust flush-panel mount casing, high insulation resistance, and plug-in removable terminal blocks simplify installation, troubleshooting, and maintenance. Firmware can be upgraded via the front port or network.

FAQ's of MICOM P143 P14331007M0468J PROTECTION RELAY (NOT WORKING):


Q: How can I determine why the MICOM P143 (P14331007M0468J) protection relay is not working?

A: Begin by checking the relay's graphical LCD display for error messages or self-diagnostic reports. Verify auxiliary power supply voltage (24-250V AC/DC), input and output wiring, and ensure communication ports are properly connected. Consult the event/fault records stored in non-volatile memory to identify potential issues.

Q: What steps should I follow to troubleshoot a non-operational MICOM P143 relay?

A: First, confirm power supply and environmental conditions. Inspect terminal connections and input voltages. Use the relay's built-in self-diagnostic and event recording features for guidance. If no faults are evident, attempt a restart; if the issue persists, consider reloading firmware or contact the manufacturer or authorized service provider for advanced diagnostics or repair.

Q: When is it necessary to upgrade the firmware of this protection relay?

A: Firmware upgrades are recommended if the manufacturer releases updates addressing performance enhancements, added features, or critical bug fixes. Upgrades should be performed after resolving any non-operation or hardware faults to ensure stable performance and software compatibility.

Q: Where can the MICOM P143 relay be installed, and what mounting type does it use?

A: This relay is designed for installation in electrical control panels, utilizing a flush panel mount. Ensure that the relay is mounted in an environment within the specified temperature and voltage range for optimal performance and longevity.

Q: What types of protection does the MICOM P143 relay offer for electrical systems?

A: It provides distance, overcurrent, earth fault, and breaker failure protection. These features help safeguard equipment and personnel by detecting and isolating electrical faults rapidly, with typical operation times under 30 milliseconds, depending on the function.

Q: How is event and fault information recorded and accessed?

A: Events and faults are automatically logged in the relay's non-volatile memory, complete with precise time stamps. This data can be viewed using the graphical LCD interface or remotely retrieved via communication ports, aiding in detailed system analysis and troubleshooting.

Q: What are the key benefits of using the MICOM P143 relay in industrial or utility applications?

A: Major benefits include high mechanical durability, versatile protection capabilities, flexible communication interfaces, robust environmental tolerance, automated diagnostics, and user-friendly maintenance. These contribute to enhanced system reliability and safety in power distribution networks.
