LENZE E82EV222-2C000 DRIVE

Price 1 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

LENZE E82EV222-2C000 DRIVE Specification

Processor Type
Integrated Digital Signal Processor (DSP)

Remote Control
Yes

Phase
Single Phase Input, Three Phase Output

IP Rating
IP20

Application
Industrial Automation, Conveyor Systems, Pumps, Fans

Connectivity Type
Terminal Connections

Mounting Type
Panel Mounting

Weight
Approx 2.1 kg

Sensor Type
Supports external sensors via digital/analog inputs

Load Capacity
Up to 2.2 kW

Features
Overload protection, Motor parameter identification, Integrated EMC filter, Programmable I/Os

Automation Grade
Automatic

Control Type
Vector Control, V/f Control

Frequency
50/60 Hz

Cable Length
Depends on installation, typical up to 50 m

Screen Size
Not Applicable (Status via LEDs/Optional External Keypad)

Drive Type
AC Frequency Inverter Drive

Speed Range
0 to 599 Hz

Material
Plastic and Metal Housing

Power
2.2 kW

Temperature
-10C to +55C (Operation)

Voltage
230 V AC

About LENZE E82EV222-2C000 DRIVE

LENZE E82EV222-2C000 DRIVE

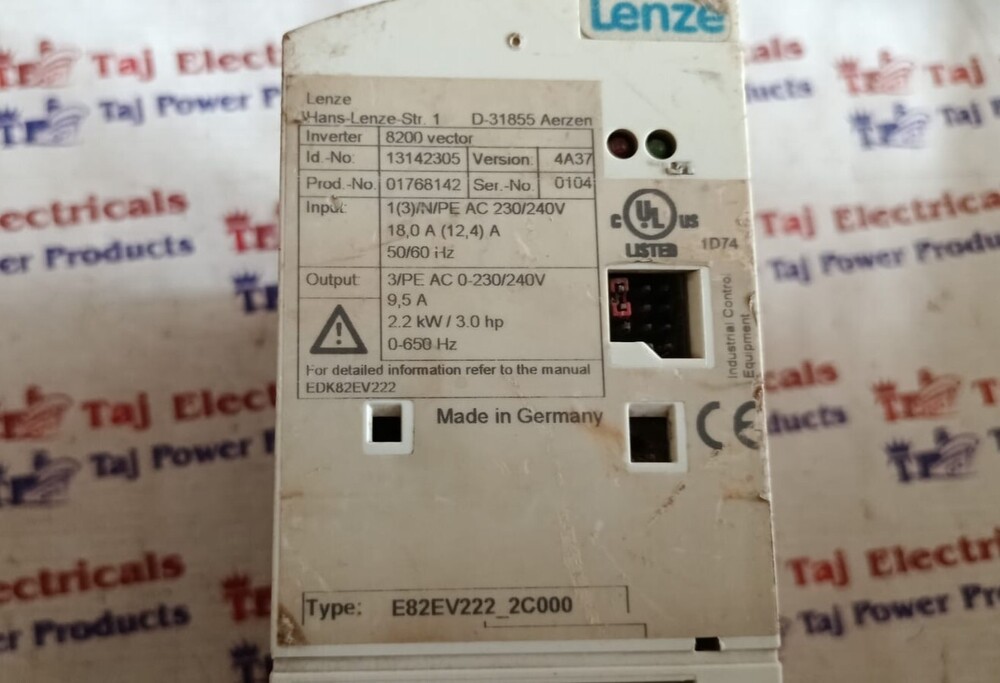

Lenze Frequency Inverter
Type E82EV222-2C000
Input: 3-phase 230-240VAC 50/60Hz 18A
Output: 3-phase 0-240VAC 0-650Hz 9.5A
Recommended motor power: 2.2KW (3.0HP)

Designed for Industrial Reliability

Engineered for seamless performance in demanding automation applications, the LENZE E82EV222-2C000 offers reliable power delivery for loads up to 2.2 kW. Its integrated protection functionsshort circuit, overvoltage, motor overload, and moresafeguard your operations, while robust internal fan cooling ensures steady functioning from -10C to +55C.

Versatile Control and Connectivity

The drives 5 programmable digital inputs and 1 analog input/output provide adaptable hardware integration with sensors, remote controls, and plant automation systems. Optional fieldbus modules such as CANopen, DeviceNet, or Profibus allow easy connectivity with existing industrial networks, supporting seamless process integration.

User-Friendly Monitoring and Maintenance

Status indication is conveniently managed via onboard LEDs, with parameters and conditions quickly visible. Remote control is possible through digital inputs or the fieldbus, while integrated EMC filtering reduces installation complexity and cost. Panel mounting and a lightweight design (2.1 kg) simplify both installation and maintenance.

FAQs of LENZE E82EV222-2C000 DRIVE:

Q: How can the LENZE E82EV222-2C000 drive be used in industrial automation systems?

A: This drive is ideal for controlling AC motors in conveyor systems, pumps, and fans within industrial automation setups. Its flexible control modes (vector control and V/f) and programmable inputs make it easy to integrate into various process applications.

Q: What process should I follow to connect external sensors or controllers to this drive?

A: External sensors can be connected using the programmable digital and analog inputs (supporting 010V or 020mA signals). For enhanced control or remote operation, you may use fieldbus modules like CANopen, DeviceNet, or Profibus, depending on your system requirements.

Q: When is additional cooling or protection necessary for the E82EV222-2C000?

A: The drive is designed for ambient temperatures from -10C to +55C with internal fan cooling. Ensure that the installation site has adequate ventilation and stays within the humidity range (max 95%, non-condensing) to prevent overheating. Additional cooling is generally unnecessary unless ambient conditions exceed specifications.

Q: Where should the LENZE E82EV222-2C000 drive be mounted for optimal performance?

A: For best results, mount the drive vertically on a control panel inside a protected environment (IP20 rated). Avoid locations exposed to dust, liquid ingress, or extreme temperature fluctuations. The recommended cable length is up to 50 meters.

Q: What are the main benefits of using this drive over other models?

A: Key advantages include integrated protection features (overvoltage, overload, etc.), flexible fieldbus connectivity, programmable I/Os, and an integrated braking chopper. Its compliance with CE, UL, cUL, and RoHS standards makes it suitable for a wide range of industrial and export applications.

Q: How does the status indication work if there is no display screen?

A: The drive uses LED indicators to display operational status, faults, or warnings. For more detailed parameter monitoring, an optional external keypad can be used. Alternatively, system status information can be accessed remotely via the supported fieldbus module.
