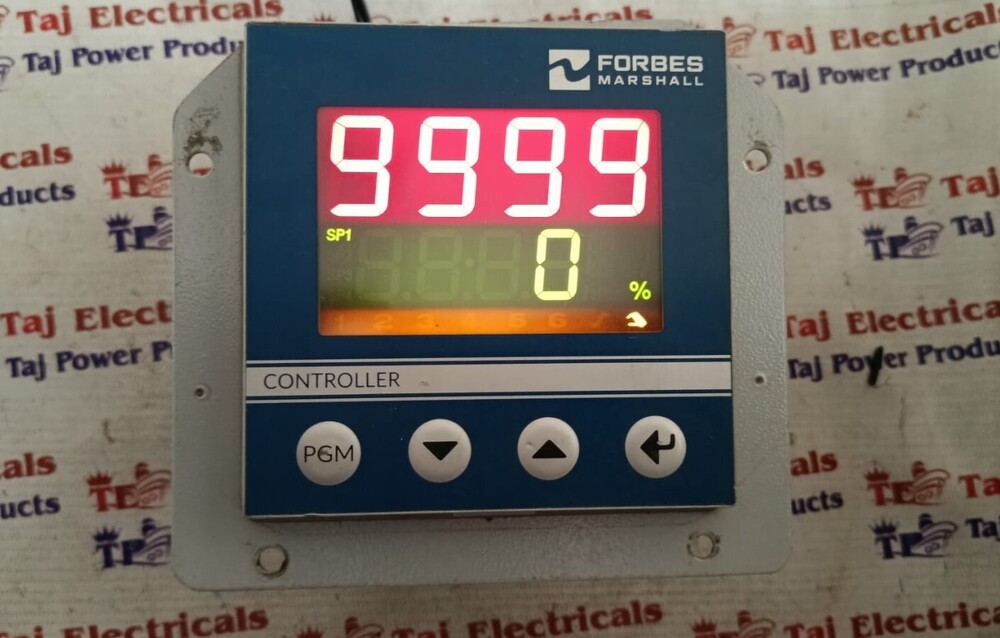

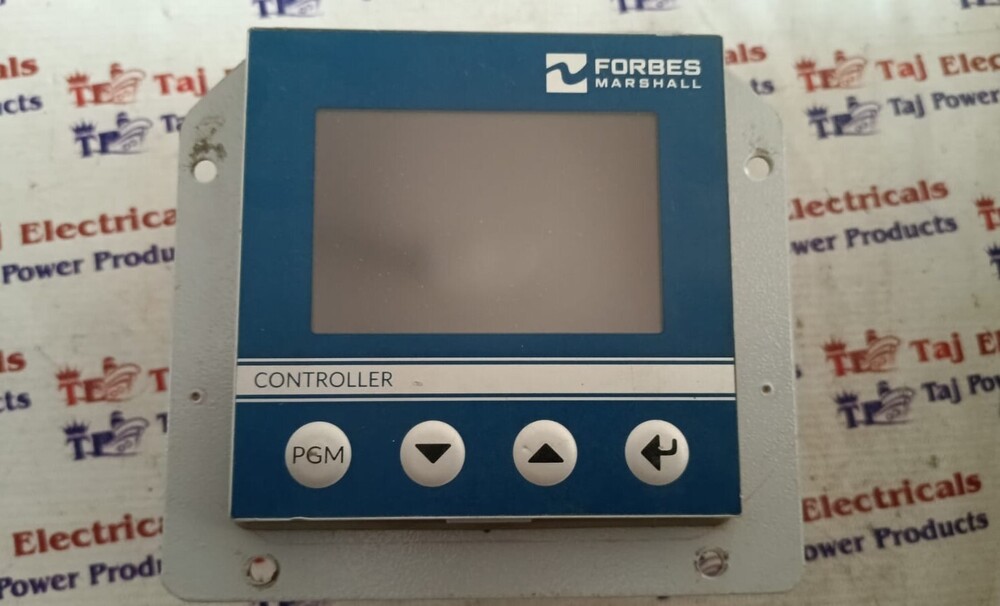

FORBES MARSHALL 703044/191-400-23/000 TEMPERATURE CONTROLLER

Get a Price/Quote
MOQ : 1 Piece

FORBES MARSHALL 703044/191-400-23/000 TEMPERATURE CONTROLLER Specification

  • Weight
  • Approx. 250 grams
  • IP Rating
  • IP54 (Front Panel)
  • Features
  • Universal Input, Accurate Measurement, Compact Design, LED Indication
  • Mounting Type
  • Panel Mounted
  • Automation Grade
  • Automatic
  • Screen Size
  • 3 Digit, 7 Segment LED Display
  • Frequency
  • 47-63 Hz
  • Processor Type
  • Microcontroller Based
  • Load Capacity
  • Relay Output: 2A @ 230V AC
  • Control Type
  • On/Off, PID
  • Sensor Type
  • Compatible with RTD PT100, Thermocouple (J/K)
  • Application
  • Industrial Temperature Control, Process Automation
  • Phase
  • Single Phase
  • Connectivity Type

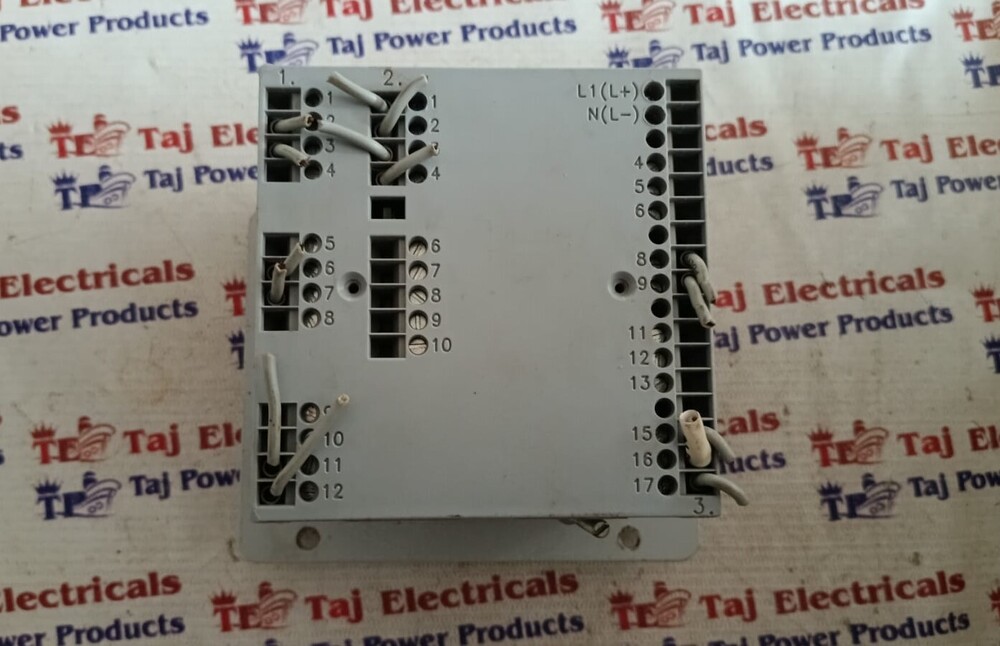

  • Panel Mounted, Terminal Blocks
  • Cable Length
  • As per sensor supplied
  • Material
  • Plastic Body with High-Quality Electronics
  • Power
  • 3 VA max
  • Temperature
  • Range: 0C to 400C
  • Voltage
  • 85-270 VAC (Universal Supply)
  • Operating Temperature
  • 0C to 50C
  • Model Number
  • 703044/191-400-23/000
  • Display Accuracy
  • 1% of FS
  • Setpoint Adjustment
  • Push Button Keys
  • Output Type
  • Relay or SSR Drive (Optional)
  • Storage Temperature
  • -20C to 70C
  • Dimensions
  • 96 x 96 x 65 mm (W x H x D)


FORBES MARSHALL 703044/191-400-23/000 TEMPERATURE CONTROLLER Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Cash in Advance (CID), Letter of Credit (L/C), Cash on Delivery (COD)
  • Supply Ability
  • 100 Pieces Per Month
  • Delivery Time
  • 7 Days
  • Main Export Market(s)
  • Western Europe, South America, Eastern Europe, North America, Africa, Middle East, Australia, Asia, Central America
  • Main Domestic Market
  • All India


About FORBES MARSHALL 703044/191-400-23/000 TEMPERATURE CONTROLLER

FORBES MARSHALL 703044/191-400-23/000 TEMPERATURE CONTROLLER

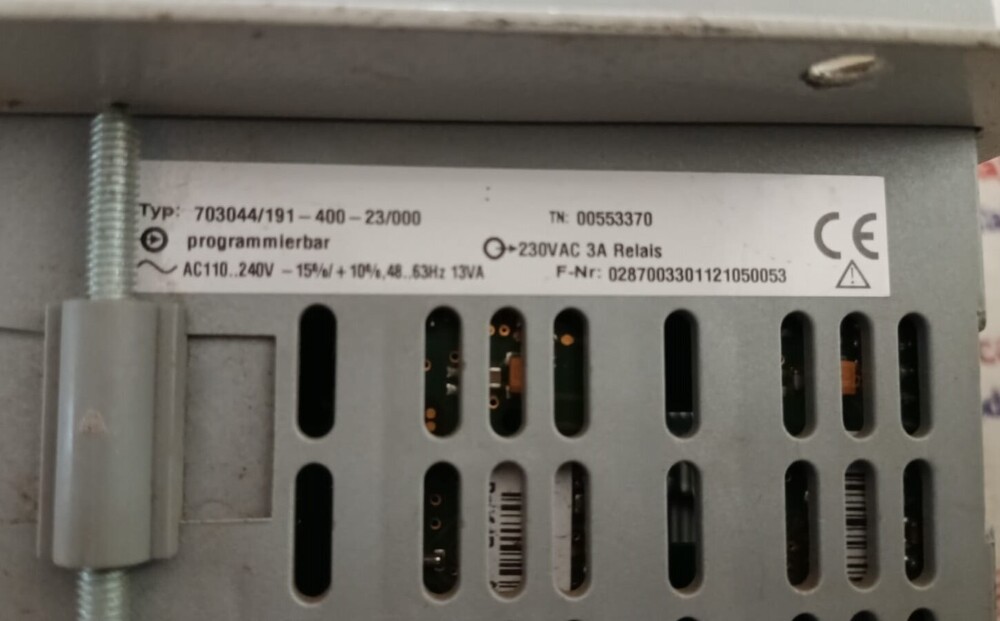

Forbes Marshall 703044/191-400-23/000 Temperature Controller
Forbes Marshall
Programmierbar
Type: 703044/191-400-23/000
230Vac 3A Relais
Ac110240V -15%/+10%,4863Hz 13Va



Reliable and Versatile Temperature Control

Engineered for accuracy and reliability, the FORBES MARSHALL 703044/191-400-23/000 is suitable for industries needing precise temperature management. With its microcontroller-based system, panel-mounted design, and universal input compatibility, this controller brings flexibility, robust performance, and adaptability to various industrial settings.


Efficient Operation and User-Friendly Experience

Featuring push button setpoint adjustment, a bright 3-digit LED display, and on/off or PID control options, the controller provides straightforward operation. Its compact design (96 x 96 x 65 mm) and simple cable management ensure quick integration into existing setups, supporting seamless industrial process automation.

FAQ's of FORBES MARSHALL 703044/191-400-23/000 TEMPERATURE CONTROLLER:


Q: How does the temperature controller ensure accurate temperature regulation?

A: The FORBES MARSHALL 703044/191-400-23/000 uses a microcontroller-based system for precise measurements, delivering an accuracy of 1% of full scale. It supports both on/off and PID control types, guaranteeing responsive and reliable control for various industrial processes.

Q: What types of sensors are compatible with this controller?

A: This temperature controller accepts universal inputs and is compatible with both RTD PT100 and thermocouple sensors (type J/K), making it suitable for a diverse range of temperature monitoring applications.

Q: Where is the ideal place to install this controller?

A: Designed for panel mounting, it is best installed on industrial control panels in environments requiring reliable temperature management and process automation. Its IP54 front panel rating provides protection against dust and splashes in such settings.

Q: What is the process for setting or changing the temperature setpoint?

A: The setpoint can be adjusted easily via push button keys on the front panel. The values are clearly displayed on a 3-digit, 7-segment LED screen for straightforward configuration and real-time monitoring.

Q: When should I use relay output versus SSR drive output?

A: Relay output is suitable for loads up to 2A at 230V AC, ideal for direct switching of moderate loads. SSR drive output is recommended for applications requiring high-frequency switching or where solid-state reliability is desired, extending the controller's versatility.

Q: What are the benefits of the compact design and universal voltage support?

A: The space-saving design (96 x 96 x 65 mm) makes installation simple even in limited spaces, while universal voltage support (85-270 VAC) allows seamless integration with different power sources, enhancing compatibility and ease of use in varied industrial environments.
