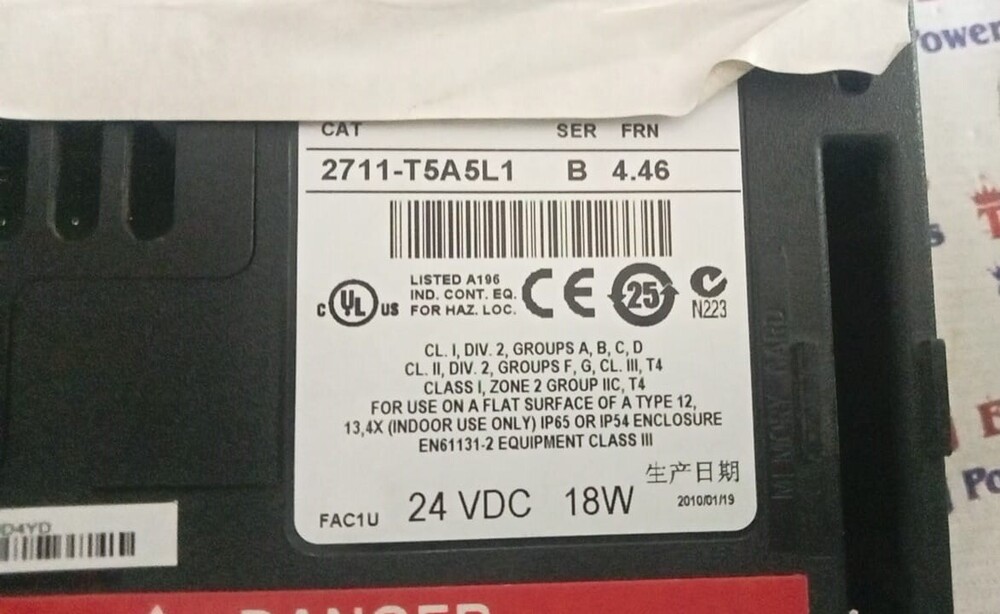

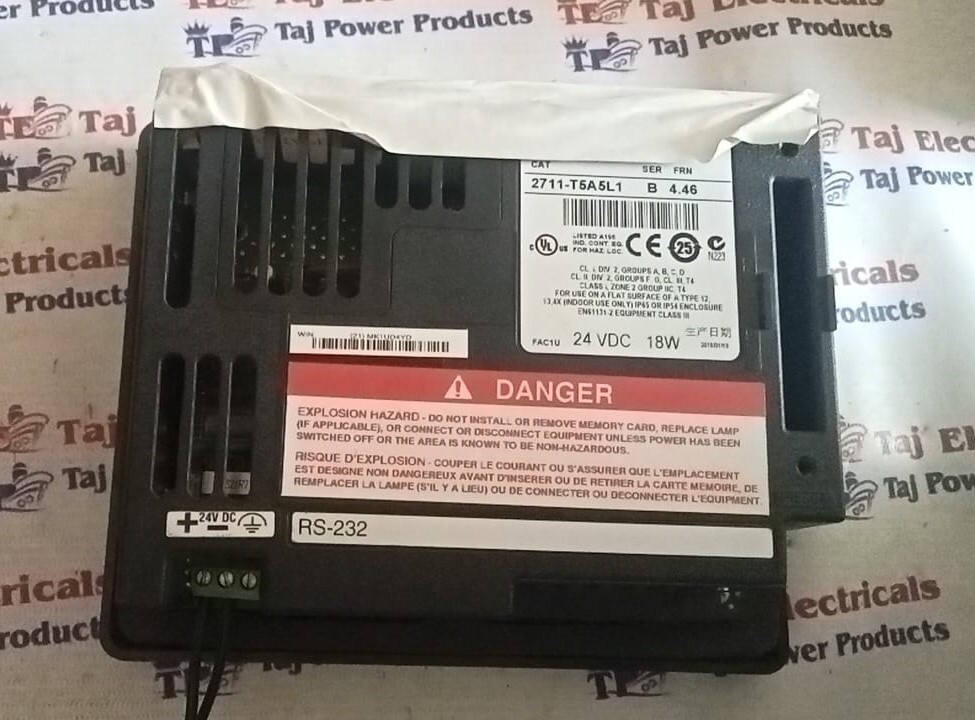

ALLEN BRADLEY 2711-T5A5L1 HMI

Price 1 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 2711-T5A5L1 HMI Specification

Screen Size
5.5 inch

Mounting Type
Panel Mount

Connectivity Type
RS-232, RS-485, Ethernet

Automation Grade
Automatic

Application
Industrial Machine Control

Features
Touchscreen Operation, Alarm Handling, Password Protection

Cable Length
Custom/Varies

Frequency
50/60 Hz

Weight
About 1.2 kg

Control Type
Touch

Processor Type
NEC D70236GJ

Remote Control
Yes

Phase
Single Phase

IP Rating
IP65

Material
Industrial Grade Plastic and Aluminum

Power
24 V DC

Temperature
Operating: 0C to 55C

Voltage
24 VDC

About ALLEN BRADLEY 2711-T5A5L1 HMI

ALLEN BRADLEY 2711-T5A5L1 HMI

ThePanelView 550 Standard Operator terminalwith part number 2711-T5A5L1 is a 24VDC powered, DH485 enabled operator terminal that may be used to act as Human Machine Interface (HMI) device, permitting operation of an industrial process via the monochrome display and touch input interface.

Versatile Industrial Control Solution

The 2711-T5A5L1 HMI provides seamless operator interface capabilities for industrial machines. Using automatic control and touchscreen operation, it streamlines processes while maintaining security via password protection. With customizable cable lengths and easy panel mounting, it adapts to various installation needs, supporting alarm handling and efficient process monitoring.

Reliable Connectivity and Programming

Connectivity is assured through RS-232, RS-485, and Ethernet options, facilitating quick uploads, downloads, and printing tasks. The device is programmed with PanelBuilder32 software, enabling straightforward configuration to suit specific operational requirements. This flexibility helps users integrate the HMI into both new and existing industrial setups smoothly.

Durability for Demanding Environments

Built from industrial-grade plastic and aluminum, the ALLEN BRADLEY 2711-T5A5L1 HMI is protected against dust and water with its IP65 rating and NEMA 4X/12 enclosure. This ensures reliability in temperatures ranging from 0C to 55C and makes the device well-suited for a variety of manufacturing or process control environments.

FAQs of ALLEN BRADLEY 2711-T5A5L1 HMI:

Q: How do I program the ALLEN BRADLEY 2711-T5A5L1 HMI?

A: Programming is accomplished using PanelBuilder32 software, which allows users to design screens, configure touch inputs, and set up communication protocols tailored to specific machine control requirements.

Q: What communication options does this HMI offer for integration?

A: It supports RS-232 for printer and upload/download tasks, RS-485 for DF1 and DH-485 protocols, and Ethernet connectivity, ensuring compatibility with most industrial automation systems.

Q: When should I consider using the 2711-T5A5L1 HMI in my facility?

A: This HMI is ideal whenever reliable, secure, and easy-to-operate machine control is needed, especially in harsh environments requiring robust hardware and dependable performance.

Q: Where can the PanelView 550 HMI be installed?

A: It is designed for panel mounting and fits easily into control cabinets in industrial settings, with an IP65-rated enclosure that protects against water and dust ingress.

Q: What benefits does the monochrome LCD display provide?

A: The monochrome LED-backlit LCD ensures high visibility and energy efficiency, delivering clear and reliable information in both bright and dimly lit industrial environments.

Q: How does the membrane touchscreen enhance usability?

A: The membrane touchscreen enables precise and intuitive control, allowing users to interact quickly with the interface while maintaining durability and resistance to industrial wear and tear.

Q: What process is involved in data storage and retrieval on this HMI?

A: Data is stored securely on onboard Flash memory, and information can be uploaded or downloaded via RS-232 communication ports, facilitating efficient transfer for system updates and maintenance.
