ALLEN BRADLEY 2711-T5A16L1 HMI

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 2711-T5A16L1 HMI Specification

Processor Type
x86 Compatible

Frequency
50/60 Hz

Cable Length
Custom as per connection

Automation Grade
Automatic

Mounting Type
Panel Mount

Weight
Approx. 1.3 kg

IP Rating
IP65 (Front Display) / NEMA 4X, 12

Remote Control
Yes

Control Type
Touch Screen

Connectivity Type
RS-232, RS-422 (DH-485), RS-232 (Printer) Ports

Features
Analog Touchscreen, Password Protection, Alarm Handling, Recipe Management

Application
Industrial Automation, Machine Control, Process Monitoring

Phase
Single Phase

Screen Size
5.7 inches (Monochrome Passive Matrix LCD)

Material
Plastic, Polycarbonate Front Panel

Power
24 V DC

Temperature
0C to 55C (Operating), -20C to 70C (Storage)

Voltage
18-32 V DC

Firmware Version
V1.07 or Later

Port Type
1 x RS-232 (DF1), 1 x RS-232 (Printer), 1 x RS-422/RS-485 (DH-485)

Cutout Dimensions
152 x 200 mm

Product Code
2711-T5A16L1

Input Type
Analog Touch

Display Type
Monochrome, Blue Mode

Display Resolution
320 x 240 pixels (QVGA)

Power Consumption
18W maximum

Front Panel Material
Polycarbonate

Backlight
LED, replaceable

Memory
240 KB Application Runtime Memory

Product Series
PanelView 550

Storage Humidity
5% to 95% non-condensing

Operating System
Proprietary

ALLEN BRADLEY 2711-T5A16L1 HMI Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Packaging Details
AS PER CUSTOMER REQUIREMENT

Main Domestic Market
All India

About ALLEN BRADLEY 2711-T5A16L1 HMI

ALLEN BRADLEY 2711-T5A16L1 HMI

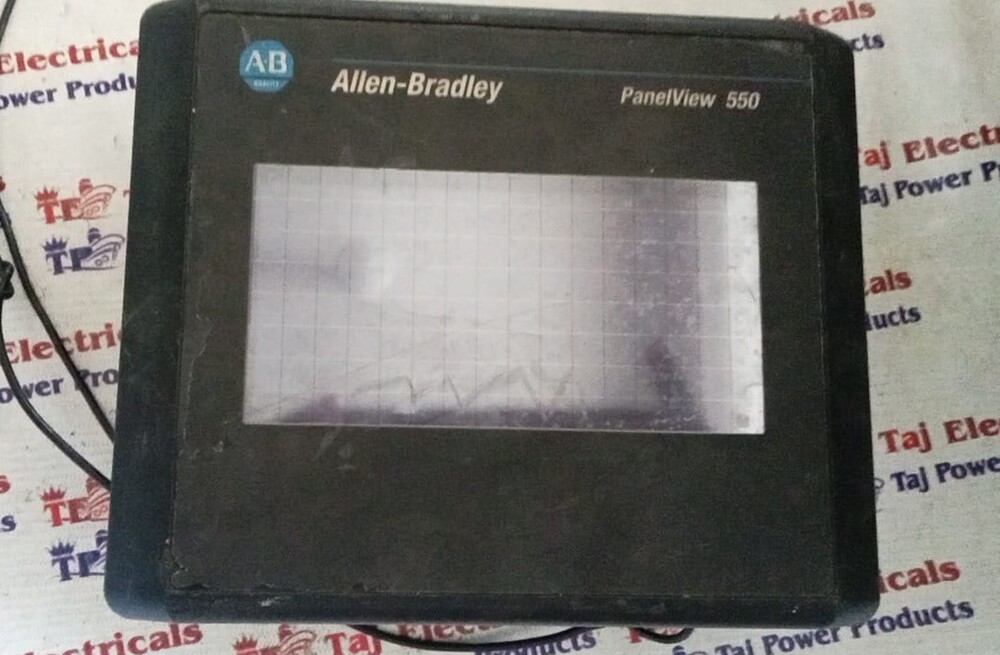

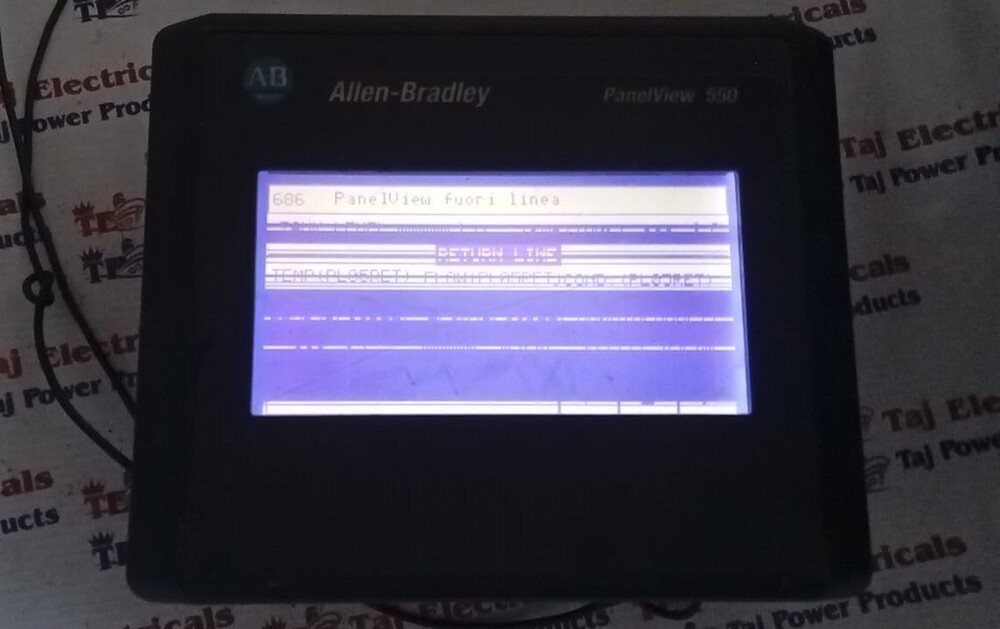

The Allen-Bradley 2711-T5A16L1 is a PanelView 550 Standard Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 5.5-inch monochrome display with embedded RS232 that supports DF1 protocol and another RS232 port for printer interface.

Efficient Control in Demanding Environments

Engineered for durability, the ALLEN BRADLEY 2711-T5A16L1 features a polycarbonate front panel and IP65 dust and water resistance, making it ideal for industrial settings. The analog touchscreen and user-friendly interface enable streamlined process control and automation.

Flexible Connectivity and Easy Integration

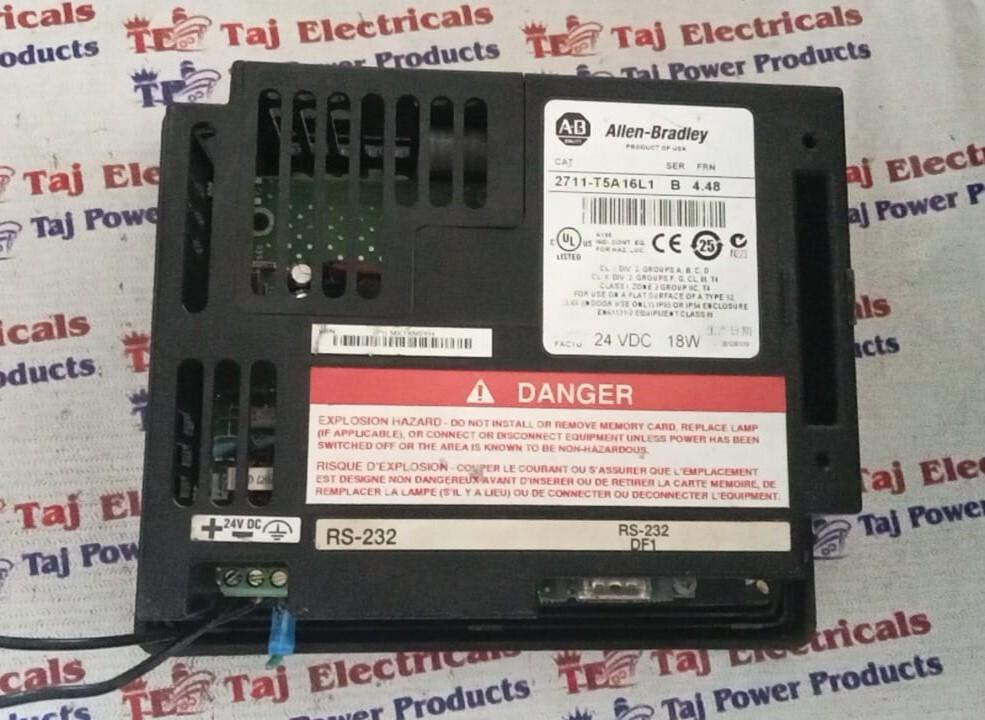

Equipped with multiple ports-two RS-232 (for DF1 communication and printing) and one RS-422/RS-485 (DH-485)-the HMI supports versatile integration into existing automation infrastructures, enhancing productivity with quick and reliable data transfer.

FAQ's of ALLEN BRADLEY 2711-T5A16L1 HMI:

Q: How do I install the ALLEN BRADLEY 2711-T5A16L1 HMI in my control panel?

A: The HMI is designed for panel mounting using a cutout of 152 x 200 mm. Secure it by following the manufacturer's guidelines ensuring the front panel, made of polycarbonate, sits flush, providing an IP65 rating for added protection in industrial environments.

Q: What communication options are available on the 2711-T5A16L1 for device integration?

A: This HMI offers three communication ports: one RS-232 (DF1), one RS-232 (Printer), and one RS-422/RS-485 (DH-485). These allow integration with PLCs, printers, and networking in industrial automation systems.

Q: When should the LED backlight of the HMI be replaced, and how is it done?

A: Replace the LED backlight when you notice screen dimming or uneven illumination. The unit features a replaceable backlight; consult the user manual for step-by-step guidance to maintain optimal screen visibility.

Q: Where can the ALLEN BRADLEY 2711-T5A16L1 be used effectively?

A: This HMI is suitable for industrial settings such as factory floors, process plants, and any environment requiring reliable machine control and process monitoring, thanks to its robust build and wide temperature range.

Q: What are the main processes the HMI supports in industrial automation?

A: The HMI facilitates machine control, process monitoring, alarm handling, recipe management, and password-protected operations, improving productivity and operational safety.

Q: How does the analog touchscreen benefit operators in a production environment?

A: The analog touchscreen allows intuitive input directly on the 5.7-inch display, enabling quick configuration, monitoring, and control while reducing input errors and simplifying the user experience.
