ALLEN BRADLEY 2094-AC09-M02-S SERVO DRIVE
ALLEN BRADLEY 2094-AC09-M02-S SERVO DRIVE
ALLEN BRADLEY 2094-AC09-M02-S SERVO DRIVE
ALLEN BRADLEY 2094-AC09-M02-S SERVO DRIVE
ALLEN BRADLEY 2094-AC09-M02-S SERVO DRIVE
ALLEN BRADLEY 2094-AC09-M02-S SERVO DRIVE
ALLEN BRADLEY 2094-AC09-M02-S SERVO DRIVE
ALLEN BRADLEY 2094-AC09-M02-S SERVO DRIVE
images Send Inquiry
Request To Call Back

ALLEN BRADLEY 2094-AC09-M02-S SERVO DRIVE

Get a Price/Quote
MOQ : 1 Piece

ALLEN BRADLEY 2094-AC09-M02-S SERVO DRIVE Specification

  • Phase
  • Three Phase
  • Connectivity Type
  • Ethernet/IP, SERCOS III, DeviceNet
  • Control Type
  • Digital Servo Drive
  • Load Capacity
  • 9 kW (Continuous), 18 kW (Peak)
  • IP Rating
  • IP20
  • Features
  • Safe Torque Off, Multi-axis capability, Status LEDs
  • Speed Range
  • 0-4000 RPM (Motor Dependent)
  • Sensor Type
  • Compatible with Incremental and Absolute Encoders
  • Application
  • Industrial Servo Motion Control
  • Drive Type
  • AC Servo Drive
  • Processor Type
  • Integrated Motion Processor
  • Weight
  • Approx. 5.1 kg
  • Mounting Type
  • Panel Mount
  • Automation Grade
  • Automatic
  • Cable Length
  • Dependent on Application (up to 100m recommended)
  • Frequency
  • 50/60 Hz
  • Remote Control
  • Yes
  • Material
  • Industrial Grade Components
  • Power
  • 9 kW (Continuous Output)
  • Temperature
  • 0C to 55C (Operating)
  • Voltage
  • 380-480V AC, 3-Phase
  • Safety Function
  • Integrated Safe Torque-Off
  • Compliance
  • CE, cULus, TUV, EN61800-5-1
  • Status Indicators
  • LED Alarms and System Feedback
  • Programming Software
  • RSLogix 5000 / Studio 5000
  • Max Motor Output Current
  • 9 Arms (Continuous), 24 Arms (Peak)
  • Series
  • Kinetix 6000 Multi-Axis Servo Drive
  • Dimensions (HxWxD)
  • 380 x 120 x 206 mm
  • Cooling Method
  • Internal Fan
  • Channels
  • 2 (Dual Channel Config)
  • Overload Capacity
  • 200% for 1 second
  • Model
  • 2094-AC09-M02-S



About ALLEN BRADLEY 2094-AC09-M02-S SERVO DRIVE

ALLEN BRADLEY 2094-AC09-M02-S SERVO DRIVE

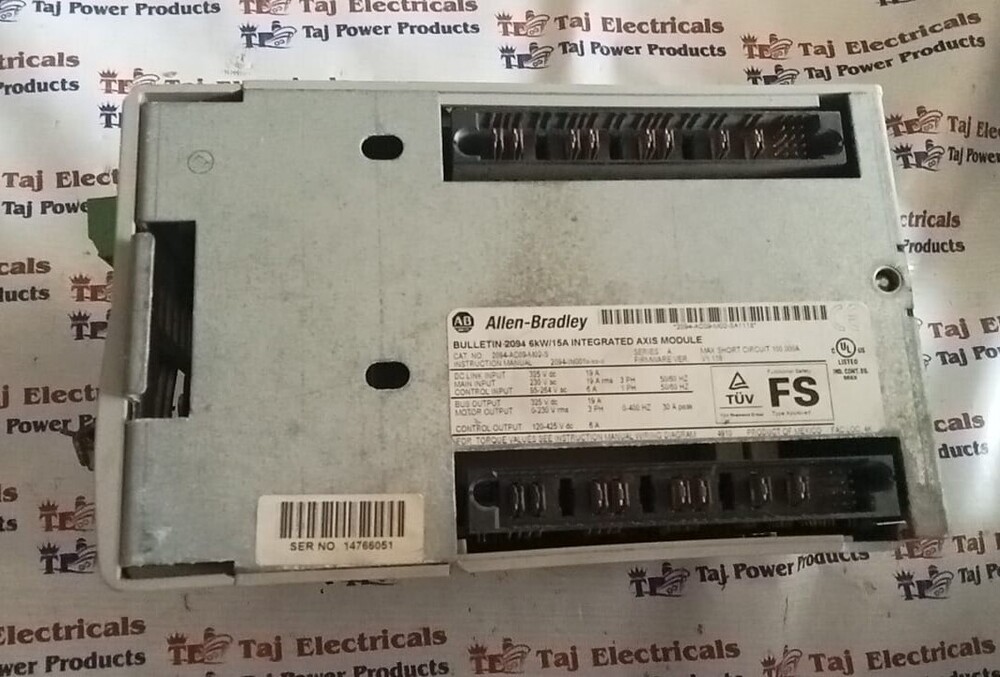

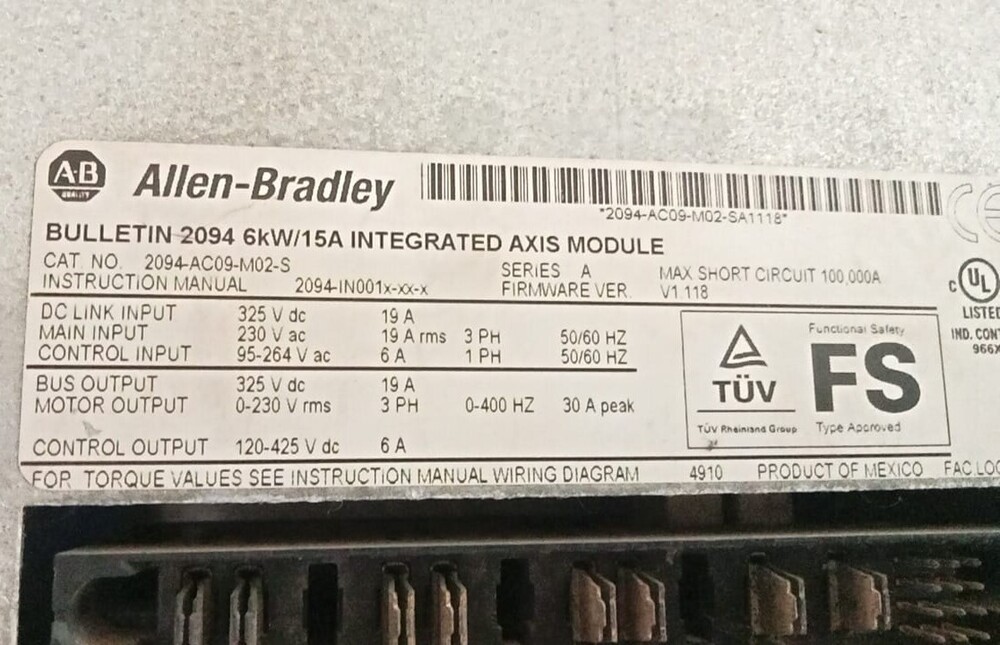

The Allen-Bradley 2094-AC09-M02-S is a 200 to 230 Volt AC Bulletin 2094 Integrated Axis Module with a 6 kW converter, three-phase input power, and 15 A inverter.



Powerful Performance for Industrial Automation

Engineered for high-performance motion control, the ALLEN BRADLEY 2094-AC09-M02-S delivers continuous motor output up to 9 Arms, with a peak of 24 Arms, supporting quick accelerations and precise positional accuracy. Its 200% overload capacity for 1 second facilitates efficient handling of high-demand applications without system strain.


Integrated Safety and Reliable Feedback

Safety is prioritized with an integrated Safe Torque-Off feature, protecting operators and machinery by enabling rapid shutdown in emergencies. Status indicators using LED alarms deliver instant system feedback, making diagnostics straightforward and maintenance more efficient.


Versatile Connectivity and Easy Integration

Thanks to broad connectivity options-Ethernet/IP, SERCOS III, and DeviceNet-the drive connects seamlessly with modern manufacturing networks. Its compatibility with incremental and absolute encoders and powerful programming via RSLogix 5000/Studio 5000 streamlines the integration process for new and existing industrial setups.

FAQ's of ALLEN BRADLEY 2094-AC09-M02-S SERVO DRIVE:


Q: How is the ALLEN BRADLEY 2094-AC09-M02-S servo drive typically used in automation applications?

A: This servo drive provides precise motion control for machinery and robotics in automated production lines, packaging, and material handling, managing multiple axes simultaneously with rapid response and high accuracy.

Q: What safety features are integrated into the 2094-AC09-M02-S model?

A: The unit includes an integrated Safe Torque-Off (STO) function, which ensures that power to the motor is safely cut during emergencies, protecting personnel and equipment from inadvertent movement.

Q: When should the overload capacity of 200% for 1 second be utilized?

A: The overload feature is valuable during short-duration, high-demand events like acceleration or load changes, enabling the drive to handle transient peaks without compromising system integrity.

Q: Where can the 2094-AC09-M02-S be mounted, and what are the environmental considerations?

A: It is designed for secure panel mounting in controlled industrial environments with operating temperatures ranging from 0C to 55C, and it has an IP20 rating for protection against solid objects.

Q: What is the process for configuring and programming this servo drive?

A: Configuration and programming are performed using RSLogix 5000 or Studio 5000 software platforms, allowing users to set up motion profiles, tune system parameters, and integrate the drive into networked automation systems efficiently.

Q: What connectivity options are available for integrating the drive with other systems?

A: The drive supports Ethernet/IP, SERCOS III, and DeviceNet, enabling integration with a variety of control systems and industrial networks for enhanced communication and synchronization across equipment.

Q: What benefits does the dual-channel configuration offer in industrial applications?

A: Dual-channel support allows for simultaneous control of two axes, improving machine efficiency and simplifying multi-axis motion management, which streamlines installation, reduces costs, and enhances overall system performance.
