About ALLEN BRADLEY 1769-OW16 PLC

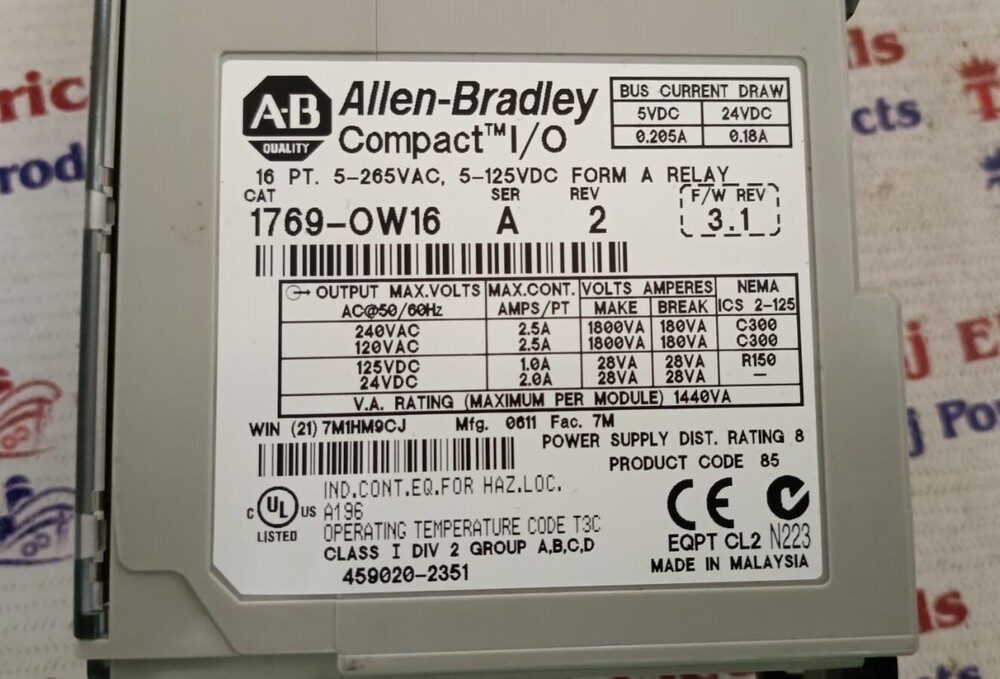

ALLEN BRADLEY 1769-OW16 PLC

The 1769-OW16 is a 16 point relay output module that can control AC or DC loads. The module has 2 isolated groups of 8 points each. This allows you to mix both AC and DC loads on one module.

Reliable 16-Channel Relay Output Module

The 1769-OW16 relay output module delivers precise control for up to 16 devices in industrial applications. Its Form A relay contacts, low typical output delay (10 ms), and silver-nickel construction ensure consistent and long-lasting switching. Suitable for use in automation and control systems, this module meets a variety of load requirements, supporting up to 2.0A for AC and 0.22A for DC outputs.


Easy Integration and Installation

Designed for seamless compatibility with Allen Bradley's MicroLogix 1500 and CompactLogix PLCs, the 1769-OW16 can be quickly installed via DIN rail and backplane connection. Its plug-in terminal block simplifies wiring, making set-up and maintenance hassle-free. Compact dimensions and a weight of approximately 300 grams allow for flexible placement in control panels.


Enhanced Safety and Performance

With a 1500V AC isolation voltage and IP20 rating, the 1769-OW16 helps protect your system components from electrical hazards. Its wide operating temperature (0C to 60C) and sturdy plastic-and-metal housing provide durability in challenging environments. Ideal for automatic control of machinery and processes, it enables efficient, reliable output switching.
