ALLEN BRADLEY 1734-232ASC PLC

Get a Price/Quote

MOQ : 1 Piece

ALLEN BRADLEY 1734-232ASC PLC Specification

IP Rating
IP20

Weight
Approx. 55 g (0.12 lb)

Phase
Single Phase (for operation)

Connectivity Type
Serial RS-232, ASCII

Mounting Type
DIN Rail Mount

Frequency
50/60 Hz

Control Type
Modular, Digital

Cable Length
Up to 15 m with shielded cable

Automation Grade
Automatic

Application
PLC serial communications module

Features
ASCII serial communication, Compact size, Hot swappable

Processor Type
Integrated Microprocessor

Material
Plastic housing with electronic circuitry

Power
24V DC, Class 2

Temperature
-20C to 55C (-4F to 131F) operating

Voltage
24V DC

Data Format
ASCII

Communication Ports
1 x RS-232 (D-Sub 9-pin male)

Isolation Voltage
50V (continuous), Basic Insulation Type

Product Code
1734-232ASC

Dimensions
56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in)

Current Consumption
75 mA @ 24V DC

Series
POINT I/O

Module Type
Serial Interface Module

Enclosure Rating
IP20 (open device)

Baud Rate Support
Up to 38.4 kbps

About ALLEN BRADLEY 1734-232ASC PLC

ALLEN BRADLEY 1734-232ASC PLC

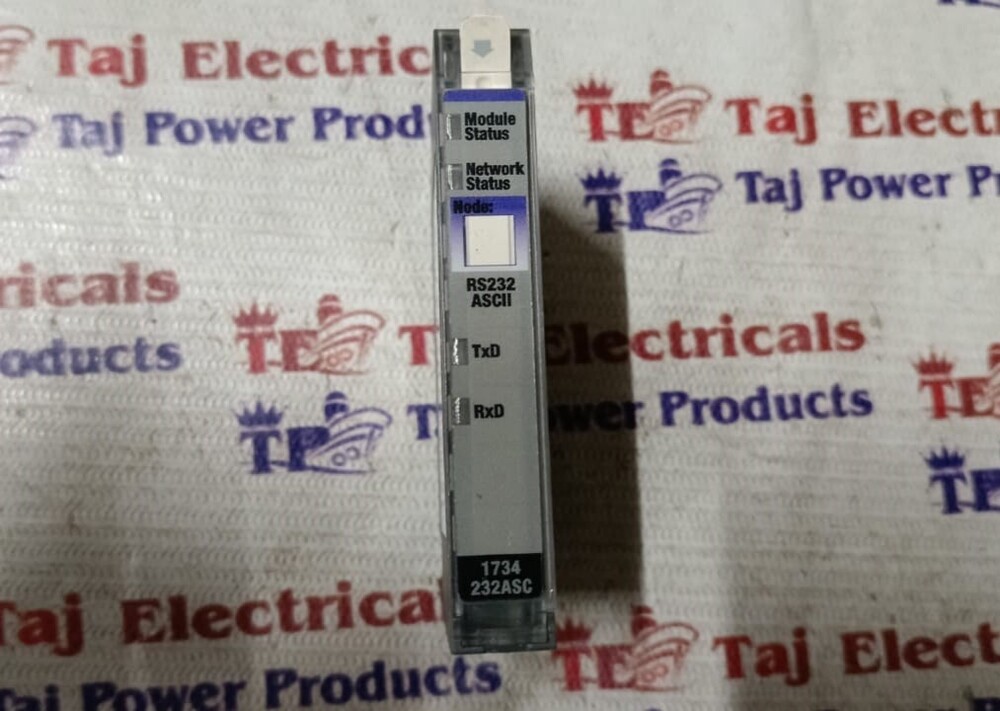

The Allen-Bradley 1734-232ASCis a POINT I/O communication interface module that functions as an ASCII communication module. It supports various communication speeds, including 1200, 2400, 4800, 9600, 19.2k, and 38.4k bps, and is compatible with RS-232 interfaces. The module is designed for use in industrial settings, allowing integration with devices like barcode scanners and printers. It operates within a voltage range of 10-28.8V DC and has a maximum power consumption of 15mA @ 24V DC. The module includes indicators for module status and network status, ensuring easy diagnostics and monitoring of its performance.

Efficient Serial Communication for PLC Systems

The 1734-232ASC module supports ASCII data format over RS-232, enabling seamless integration with a broad range of serial devices. Its high isolation voltage and modular design provide safe and reliable data transmission for automation applications, especially within distributed POINT I/O systems.

Compact and Easy to Install

With a slim dimension of just 56 x 12 x 75.5 mm and lightweight construction, this module conserves panel space and supports DIN rail mounting. Its hot-swappable feature minimizes downtime during maintenance or replacement, offering operational efficiency in dynamic industrial environments.

FAQ's of ALLEN BRADLEY 1734-232ASC PLC:

Q: How do I connect the ALLEN BRADLEY 1734-232ASC module to my PLC system?

A: You can connect the 1734-232ASC module via its RS-232 port (D-Sub 9-pin male) to any compatible serial device using shielded cables up to 15 meters long. Mount the module on a DIN rail and link it within your POINT I/O setup for seamless PLC integration.

Q: What types of serial communications does the 1734-232ASC support?

A: This module is designed for ASCII-based serial communications over an RS-232 interface, supporting data rates up to 38.4 kbps for reliable data exchange with other serial-enabled devices.

Q: When should I use the 1734-232ASC Serial Interface Module in my automation application?

A: Use this module when your PLC system needs to communicate with external devices (such as printers, bar code scanners, or other PLCs) that transmit data via RS-232 in ASCII format within industrial automation environments.

Q: Where is the ideal placement for the 1734-232ASC module in an industrial setting?

A: Install the module inside control panels or automation enclosures with IP20 environmental protection, mounted securely on a DIN rail. Ensure it operates within -20C to 55C to maintain optimal functionality.

Q: What is the process for replacing or adding a 1734-232ASC module during system operation?

A: The 1734-232ASC module supports hot swapping, allowing you to add or replace it without shutting down the system. Simply disconnect the faulty unit, plug in the new module, and resume operations with minimal downtime.

Q: How does the 1734-232ASC benefit industrial automation systems?

A: The module enables easy serial communication between PLCs and RS-232 devices, enhancing flexibility, reducing wiring complexity, and supporting modular system expansion. Its compact form factor and hot-swappable design improve system uptime and efficiency.
