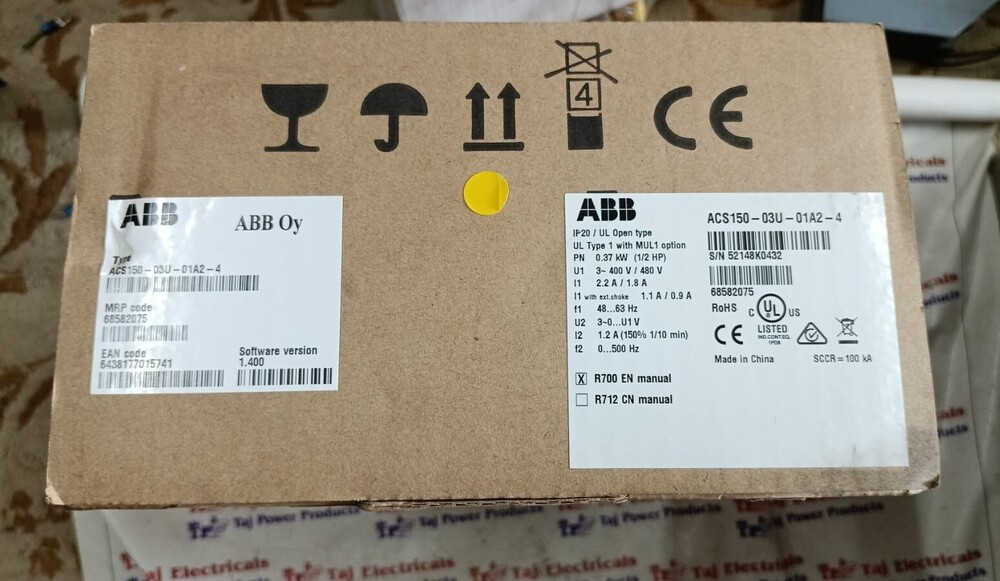

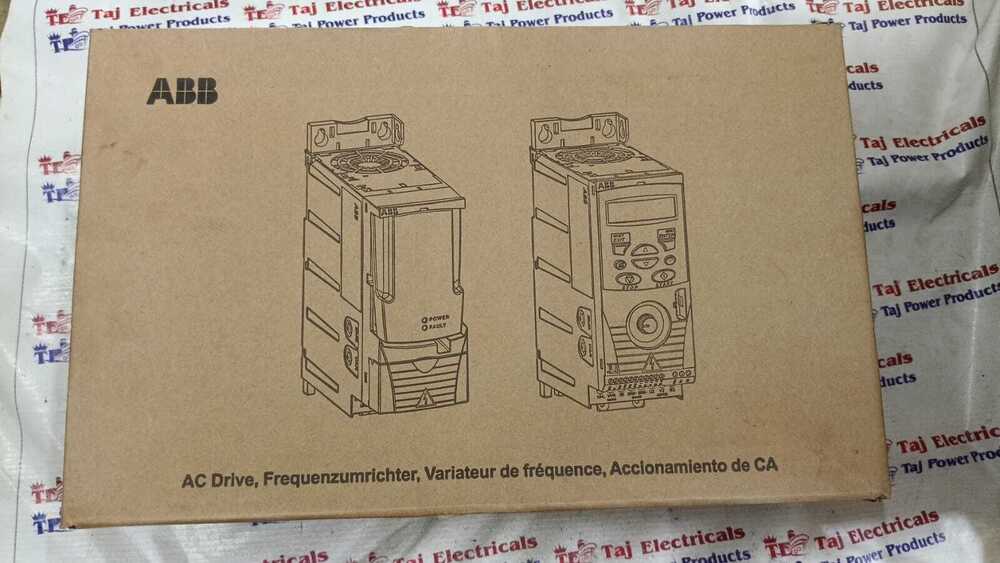

ABB ACS150-03U-01A2-4 DRIVE

Get a Price/Quote

MOQ : 1 Piece

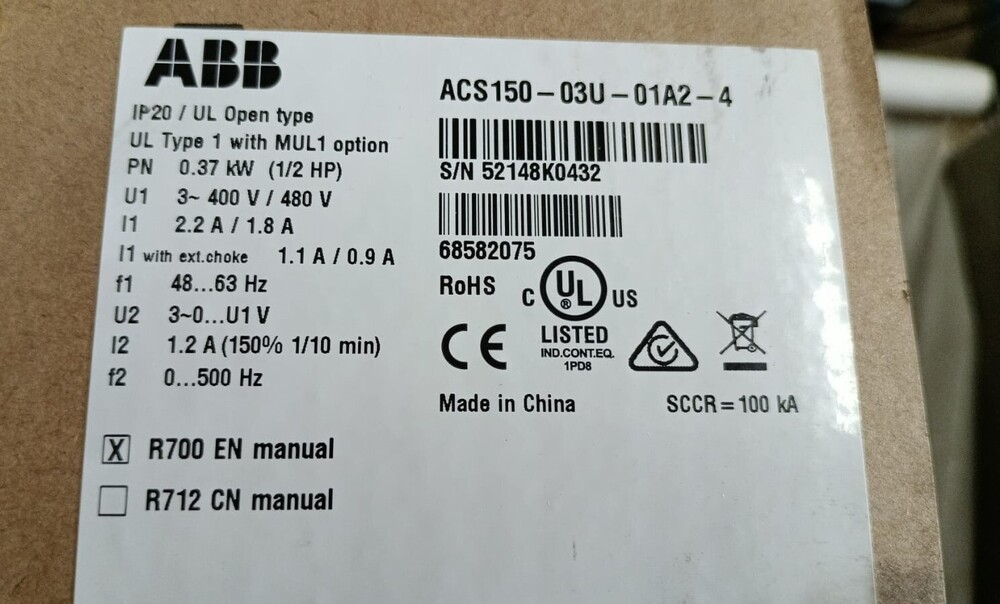

ABB ACS150-03U-01A2-4 DRIVE Specification

Connectivity Type
Integrated Modbus RTU (RS485)

Weight
1.1 kg

Frequency
50/60 Hz

Cable Length
Custom as per requirement

Remote Control
Yes

Load Capacity
0.37 kW

Sensor Type
Current and Voltage Sensors

Application
Industrial Motor Speed Control, Pumps, Fans, Conveyors

Control Type
Vector Control / V/f Control

Processor Type
Microprocessor based

Speed Range
0 to 500 Hz

Features
Built-in EMC Filter, Internal Braking Chopper, Compact Size, Simple User Interface

Drive Type
AC Frequency Drive (VFD)

Phase
3-Phase

IP Rating
IP20

Screen Size
7-Segment LED Display

Automation Grade
Automatic

Mounting Type
Panel Mount

Material
Plastic and Metal Components

Power
0.37 kW (0.5 HP)

Temperature
-10C to +50C (14F to 122F)

Voltage
200-240V AC (Input), 3-Phase

Model
ACS150-03U-01A2-4

Ambient Humidity
5% to 95% (Non-condensing)

Standards Compliance
CE, UL, cUL, RoHS

Overload Capacity
150% for 60 seconds

Protection
Overvoltage, Undervoltage, Overcurrent, Overtemperature, Short Circuit

Output Voltage
0 to Input Voltage

Display
Integrated Keypad with Potentiometer

Input Voltage Tolerance
-10% to +10%

Dimensions
70 mm x 142 mm x 170 mm

Cooling
Integral Cooling Fan

About ABB ACS150-03U-01A2-4 DRIVE

ABB ACS150-03U-01A2-4 DRIVE

The ACS150-03U-01A2-4is a 0.5 HP, 3-phase, 480V AC micro drivedesigned for various applications such as mixers, conveyors, fans, and pumps. It features an integrated user panel, potentiometer, and pre-defined connection macros for easy configuration. The drive includes built-in PID control, a built-in brake chopper, and the optional FlashDrop tool for quick setup, making it suitable for energy savings and variable speed applications.

Integrated User-Friendly Design

With a simple integrated keypad and potentiometer, the ACS150-03U-01A2-4 offers straightforward operation and local parameter adjustment. The seven-segment LED display ensures visibility, while the compact footprint enables space-saving panel installation. Built-in EMC filter, internal braking chopper, and efficient cooling fan enhance performance and longevity.

Versatile Industrial Applications

This ABB drive excels in controlling the speed of motors for pumps, fans, and conveyor systems across manufacturing, process, and utility sectors. Its automation features, remote digital and analog input control, and wide frequency range (0-500 Hz) support versatile deployment with consistent results in demanding environments.

FAQ's of ABB ACS150-03U-01A2-4 DRIVE:

Q: How can I install the ABB ACS150-03U-01A2-4 drive in my industrial panel?

A: To install the ACS150-03U-01A2-4, secure the drive onto the panel using its designated mounting points. Ensure proper spacing for ventilation, connect the three-phase supply (200-240V AC) and motor wires as specified in the manual, and configure control and communication interfaces as needed.

Q: What protections does the ABB ACS150-03U-01A2-4 provide during operation?

A: The drive includes overvoltage, undervoltage, overcurrent, overtemperature, and short-circuit protection, safeguarding both the device and connected motors against various electrical and thermal faults for uninterrupted operation.

Q: When should I use the vector control versus V/f control mode?

A: Vector control is recommended when precise torque and speed regulation are required, especially under varying loads. Use V/f control for simpler, constant torque applications. Both modes enhance versatility across different motor types and tasks.

Q: Where is the ACS150-03U-01A2-4 commonly used in industrial settings?

A: This drive is typically used in motor speed regulation for pumps, fans, and conveyors within manufacturing, HVAC systems, and processing facilities due to its reliability, compact design, and flexible control options.

Q: What is the process for remote control and monitoring of this drive?

A: Remote operation is enabled via digital and analog input terminals or through the integrated Modbus RTU (RS485) interface. External systems can start, stop, and set parameters, while the display provides status and fault information.

Q: How does the built-in EMC filter benefit my installation?

A: The integrated EMC filter reduces electrical noise emissions, improving compatibility with sensitive equipment and ensuring compliance with industrial electromagnetic standards, which is crucial in automated environments.

Q: What are the main benefits of using the ABB ACS150-03U-01A2-4 drive?

A: Key benefits include compact design, reliable motor protection, extensive parameter control, easy installation, integrated braking chopper, user-friendly interface, and adherence to international safety and environmental standards.
