ABB ACS-CP-U

Get a Price/Quote

MOQ : 1 Piece

ABB ACS-CP-U Specification

Cable Length
Panel-attached, no separate cable

Connectivity Type
Hardwired via panel connection slot

Application
ABB ACS Series VFD control and operation

Processor Type
Integrated microcontroller

Drive Type
Compatible with ABB ACS series drives

Automation Grade
Automatic

Speed Range
Depends on drive settings

Load Capacity
N/A (panel only)

Weight
Approx. 250 grams

Control Type
Digital

Remote Control
Yes

Features
Copy function, multilingual support, parameter backup and restore

Screen Size
4-line plain-text LCD

Mounting Type
Panel mount

IP Rating
IP54 (panel mounting)

Frequency
50/60 Hz

Phase
Single phase (operates in drive panel)

Material
ABS Plastic, Polycarbonate

Power
5V DC (via inverter connection)

Temperature
-10C to +50C

Voltage
Supplied from ACS drive panel

Mounting Accessories
Panel gasket included

Enclosure Material
Durable, industrial-grade plastic

Operation Keys
Navigation keys, start/stop, reset

Communication Port
Panel slot interface

Dimensions
Approx. 100 mm x 80 mm x 40 mm

Multi-Language Support
Yes

Parameter Backup
Yes

Display Type
4-line, 16-character backlit LCD

Compatibility
ACS310, ACS350, ACS355 and other compatible ABB ACS Variable Frequency Drives

Product Name
ABB ACS-CP-U Basic Control Panel

About ABB ACS-CP-U

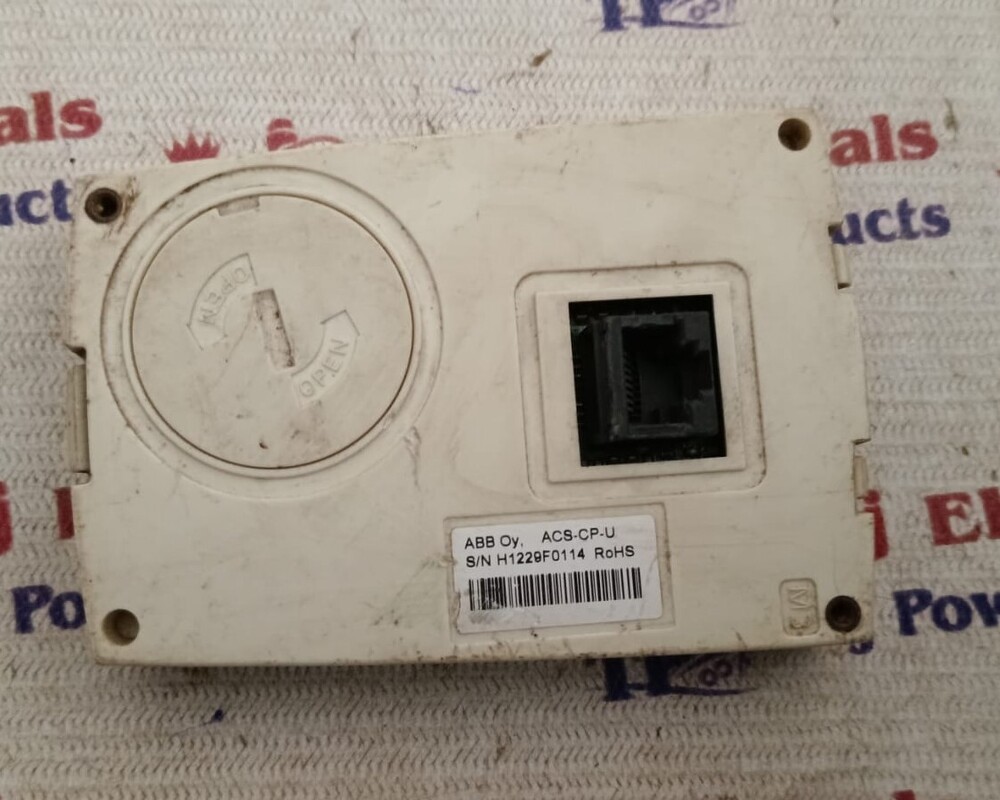

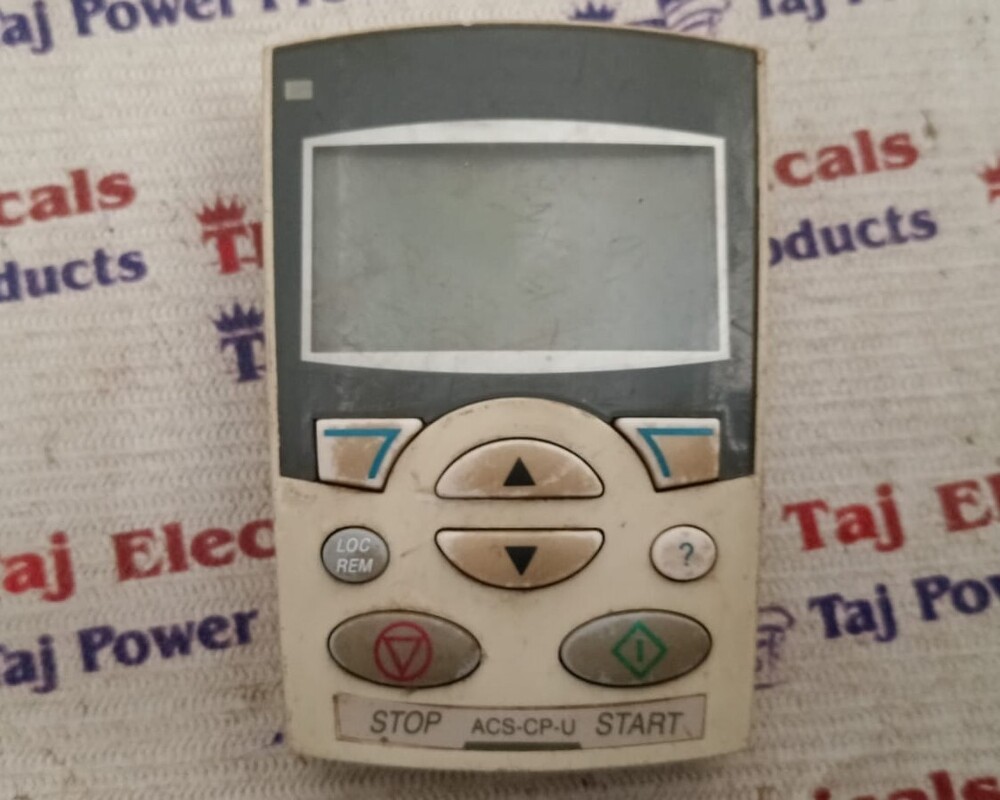

ABB ACS-CP-U

ABB ACS-CP-Uis a versatile control panel designed for industrial automation applications. Key features include:

Control TypeVariable Speed/Frequency Drive (VSD/VFD) & Inverter.
Rated Current11A.
Rated Power10HP.
Protection RatingIP21/NEMA 1.
Communication CapabilitiesSupports Modbus RTU, Modbus, Ethernet/IP, and Modbus TCP for seamless integration with existing systems.
User InterfaceMulti-line graphical LCD display for real-time monitoring and configuration of drive parameters.
This control panel is engineered for reliability and precision, making it suitable for demanding industrial environments.

Intuitive and Durable Control Solution

The ABB ACS-CP-U Basic Control Panel combines user-friendly navigation with industrial-grade durability. Its clearly backlit, four-line display provides clear and accessible feedback for monitoring and adjusting drives. Designed for harsh environments, the enclosure and included gasket provide IP54-rated protection when mounted, ensuring reliable operation in demanding industrial settings.

Seamless Integration and Parameter Management

This control panel is compatible with multiple ABB ACS drive models, supporting swift setup and direct connection via the panel slot interface. Users benefit from multilingual support and full parameter backup and restore functionality, enabling efficient management and transfer of settings between devices-ideal for streamlining operations and maintenance.

FAQ's of ABB ACS-CP-U:

Q: How do I install the ABB ACS-CP-U Basic Control Panel on ACS variable frequency drives?

A: The panel is designed for straightforward panel mounting. Align the panel with the designated slot on compatible ABB ACS drives, secure it using the supplied gasket for IP54 protection, and connect it directly via the panel slot interface. No separate cable or power supply is needed as it draws power from the drive.

Q: What is the process for backing up and restoring parameters using this control panel?

A: Utilize the built-in copy function to store, back up, or transfer drive settings. This can be accessed through the navigation menu on the control panel, allowing for quick duplication or restoration of parameters for efficient commissioning or troubleshooting.

Q: When should I use the parameter backup feature of the ACS-CP-U Panel?

A: Parameter backup is best used before performing firmware updates, replacing drives, or any planned maintenance that may require restoring settings. This feature ensures that configurations can be easily transferred or recovered, minimizing downtime.

Q: Where can the ACS-CP-U be mounted for optimal performance?

A: For best results, the control panel should be mounted directly to the drive's panel slot, using the supplied gasket to maintain an IP54 dust and water protection rating. Avoid locations exposed to temperatures outside -10C to +50C or environments exceeding industrial standards.

Q: What are the benefits of the multi-language support on this control panel?

A: Multi-language support facilitates easier operation for diverse teams, ensuring that operators can navigate menus and manage drive settings in their preferred language, thus reducing errors and training requirements.

Q: Can the ACS-CP-U panel be controlled remotely?

A: Yes, while the panel is designed for direct attachment, it supports panel-mounted remote operation, allowing users to start, stop, and adjust drives from the panel's location, rather than directly at the inverter hardware.
