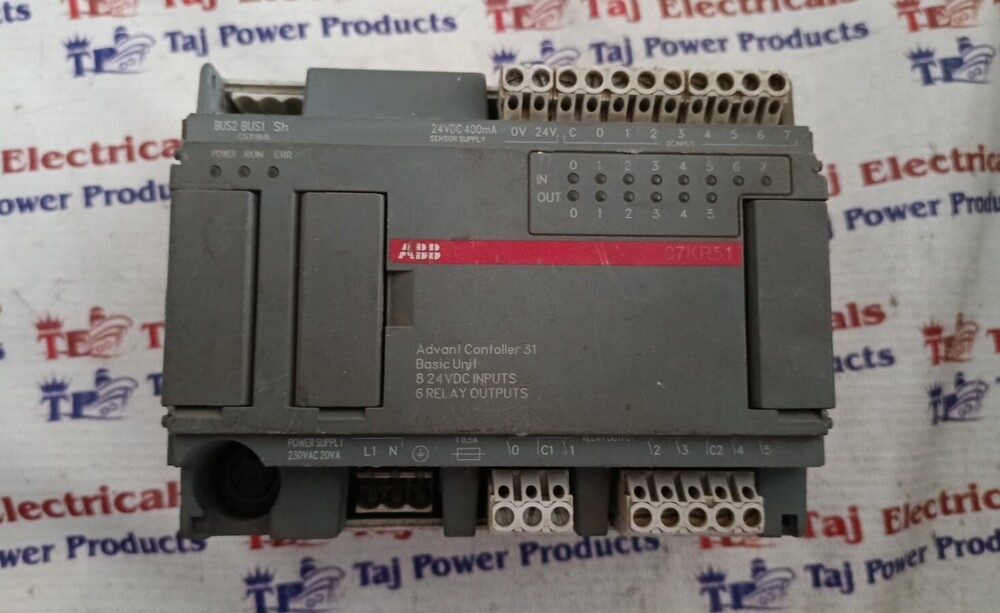

ABB 7KR51 1SBP260014R1001 PLC
ABB 7KR51 1SBP260014R1001 PLC
ABB 7KR51 1SBP260014R1001 PLC
ABB 7KR51 1SBP260014R1001 PLC
ABB 7KR51 1SBP260014R1001 PLC
ABB 7KR51 1SBP260014R1001 PLC
ABB 7KR51 1SBP260014R1001 PLC
ABB 7KR51 1SBP260014R1001 PLC
images Send Inquiry
Request To Call Back

ABB 7KR51 1SBP260014R1001 PLC

Get a Price/Quote
MOQ : 1 Piece

ABB 7KR51 1SBP260014R1001 PLC Specification

  • Remote Control
  • Yes
  • Control Type
  • Programmable Logic Control
  • Phase
  • Single Phase
  • Mounting Type
  • DIN Rail Mount
  • Cable Length
  • Depends on connected modules and communication type
  • Features
  • Expandable, Modular, Real-Time Processing, Diagnostics LED, Built-in Communication Ports
  • Drive Type
  • N/A (PLC controller)
  • Application
  • Industrial Automation, Control Processes, Machinery Control
  • Weight
  • Approx. 0.5 kg
  • Frequency
  • 50/60 Hz
  • Screen Size
  • No Integrated Display (External HMI supported)
  • IP Rating
  • IP20
  • Load Capacity
  • Configurable (Dependent on I/O Modules)
  • Sensor Type
  • Digital and Analog Input Supported
  • Processor Type
  • Microprocessor-based
  • Connectivity Type
  • RS485, Ethernet Option
  • Automation Grade
  • Automatic
  • Speed Range
  • Standard (PLC cycle time <15 ms)
  • Material
  • Plastic and Metal Housing
  • Power
  • 24V DC, low consumption
  • Temperature
  • -10C to +60C (operating range)
  • Voltage
  • 24V DC supply
  • Programming Language
  • IEC 61131-3 compliant: Ladder, FBD, STL
  • Battery Back-up
  • Integrated (for maintaining program/data)
  • Memory Type
  • Flash Memeory, user programmable
  • Response Time
  • <1 ms for digital operations
  • Communication Protocols
  • Modbus, ProfiBus, Ethernet (with suitable module)
  • Data Storage
  • Internal non-volatile memory
  • Ambient Humidity
  • 5% to 95% (non-condensing)
  • Model Number
  • 7KR51 1SBP260014R1001
  • Number of Outputs
  • 6 Digital Outputs (expandable)
  • Number of Inputs
  • 8 Digital Inputs (expandable)
  • Dimensions
  • Approx. 120 mm x 100 mm x 55 mm
  • Expansion Capability
  • Yes, for additional I/O modules



About ABB 7KR51 1SBP260014R1001 PLC

ABB 7KR51 1SBP260014R1001 PLC

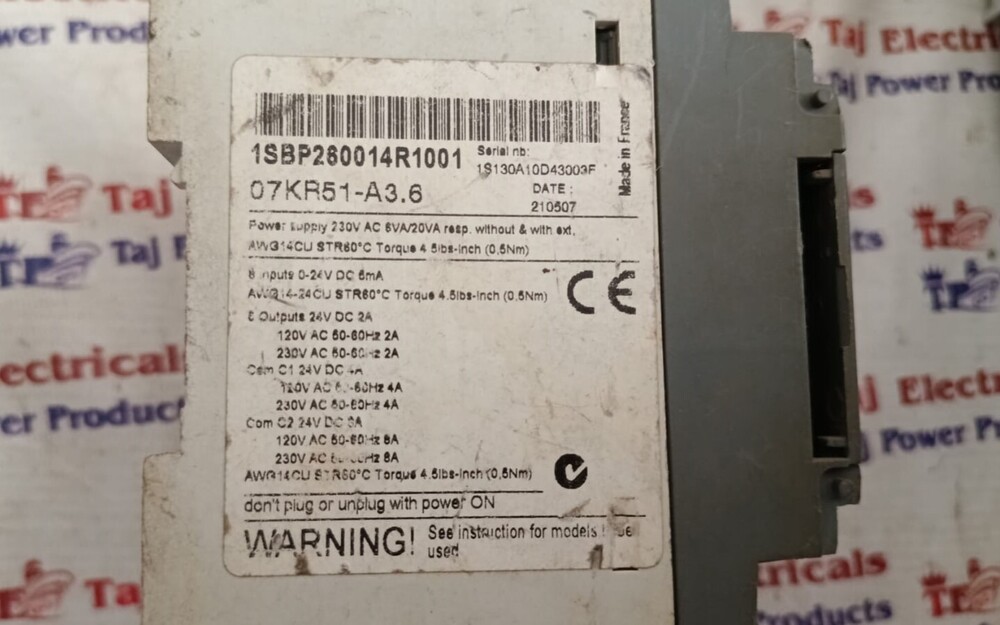

  • Manufacturer: ABB
  • Product Line: Advant Controllers
  • Model: 07KR51
  • Part Number: 1SBP260014R1001
  • Type: Basic Unit
  • Status: Active
  • Power Supply: 230 VAC
  • Inputs: Eight 24 VDC inputs
  • Outputs: Six relay outputs
  • Communication: CS31 Bus





Advanced Expansion Capability

The ABB 7KR51 1SBP260014R1001 PLC is designed to adapt with your industrial needs by supporting additional I/O modules. This allows users to easily expand digital inputs and outputs as their control processes evolve, providing long-term flexibility without significant hardware replacements.


Reliable Real-time Performance

Equipped with a microprocessor-based architecture, this PLC offers real-time processing with response times below 1 ms for digital operations. Its robust internal Flash memory and integrated battery backup ensure data and program retention during power interruptions, safeguarding critical automation routines.


Versatile Communication Options

Communicate seamlessly with various devices and networks using built-in support for Modbus and ProfiBus protocols. Optional modules enable Ethernet connectivity, while standard RS485 ensures compatibility with legacy and modern systems in industrial environments.

FAQ's of ABB 7KR51 1SBP260014R1001 PLC:


Q: How can I expand the input and output capacity of the ABB 7KR51 1SBP260014R1001 PLC?

A: You can increase the number of digital inputs and outputs by connecting external I/O expansion modules designed for this series. This modular approach allows scalability according to your application's specific requirements.

Q: What programming languages does the PLC support, and how do I program it?

A: The PLC is compatible with IEC 61131-3 standards, supporting Ladder Diagram, Function Block Diagram (FBD), and Statement List (STL). You can program it using compatible development software on your PC and download the logic to the unit via supported communication ports.

Q: When is it beneficial to use an external HMI with the 7KR51 PLC?

A: Since this PLC does not feature an integrated display, an external HMI is recommended when real-time monitoring, operator interaction, or ongoing status checks are necessary within your automation solution.

Q: Where should the ABB 7KR51 PLC be installed and what are the environmental considerations?

A: Install the PLC on a DIN rail within a control panel, ensuring it is protected from excessive dust, humidity (5% to 95%, non-condensing), and temperatures outside the -10C to +60C operating range for optimal reliability.

Q: What are the advantages of the PLC's built-in communication ports?

A: Built-in Modbus and ProfiBus ports, plus optional Ethernet, enable flexible integration with industrial networks and devices. This facilitates real-time data exchange, supports remote monitoring, and simplifies connectivity for automation tasks.

Q: How does the PLC ensure data retention during power interruptions?

A: The 7KR51 model uses internal non-volatile Flash memory alongside an integrated battery backup system, ensuring that user programs and critical data are preserved even during unexpected power outages.
