6AV2 124-0JC01-0AX0

Price 15000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

6AV2 124-0JC01-0AX0 Specification

Phase
Single Phase

Screen Size
7 inch TFT

Mounting Type
Panel Mounting

Processor Type
ARM Cortex-A8

Frequency
50/60 Hz

Connectivity Type
Profinet, Ethernet, USB

Features
High-resolution display, capacitive touchscreen, robust design

Control Type
Touch Screen

Automation Grade
Automatic

Application
HMI Interface for SIMATIC S7 systems

Weight
Approx. 1.2 kg

Cable Length
Dependent on installation

Remote Control
Yes

IP Rating
IP65 (front), IP20 (rear)

Material
Plastic, Aluminum Front

Power
24 V DC

Temperature
0 C to +50 C (operation)

Voltage
24 V DC

Relative Humidity
10% to 90% (non-condensing)

Device Family
Siemens SIMATIC HMI KTP700 Basic

Configuration Software
TIA Portal

Onboard Interfaces
1x Ethernet, 2x USB 2.0, 1x RS-485/422

Display Resolution
800 x 480 pixels (WVGA)

Display Color
16 million Colors

Model Number
6AV2 124-0JC01-0AX0

Data Storage
Flash memory 12 MB (project memory)

Touchscreen Type
Capacitive multi-touch

Dimensions (W x H x D)
214 mm x 158 mm x 48 mm

Operating System
Windows embedded

Supported Memory Card
SD/SDHC

Backlight Type
LED

About 6AV2 124-0JC01-0AX0

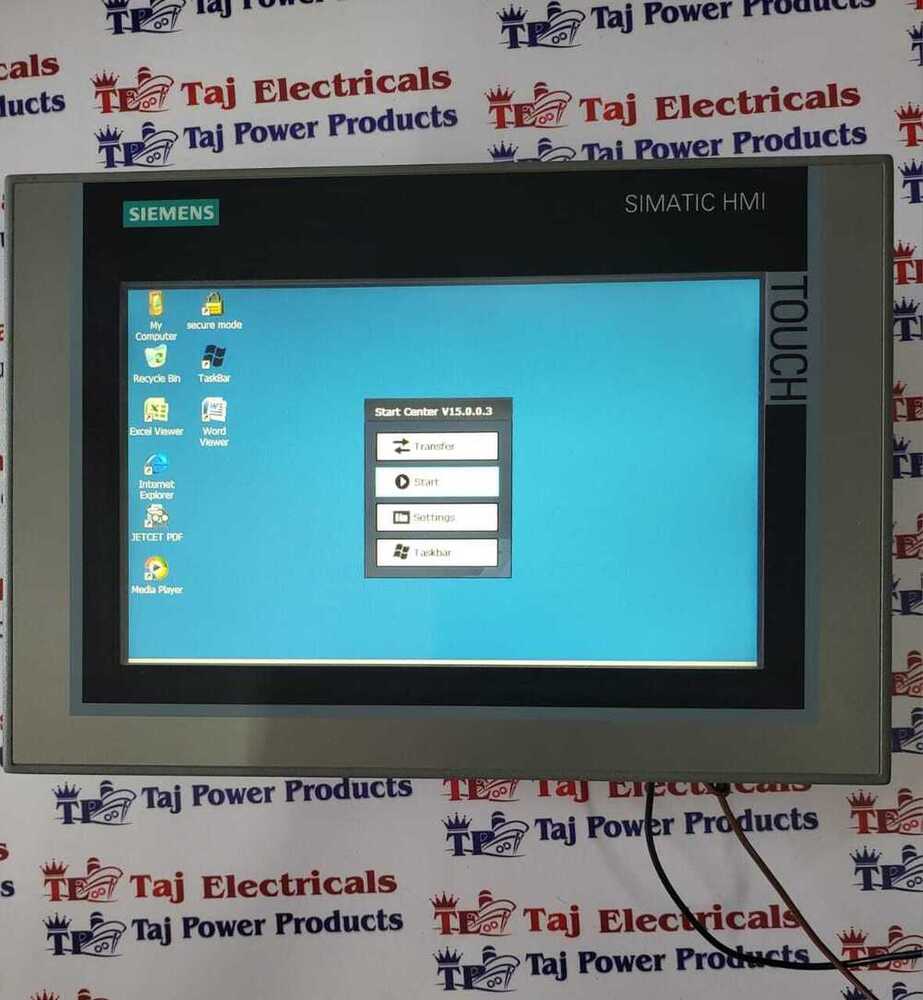

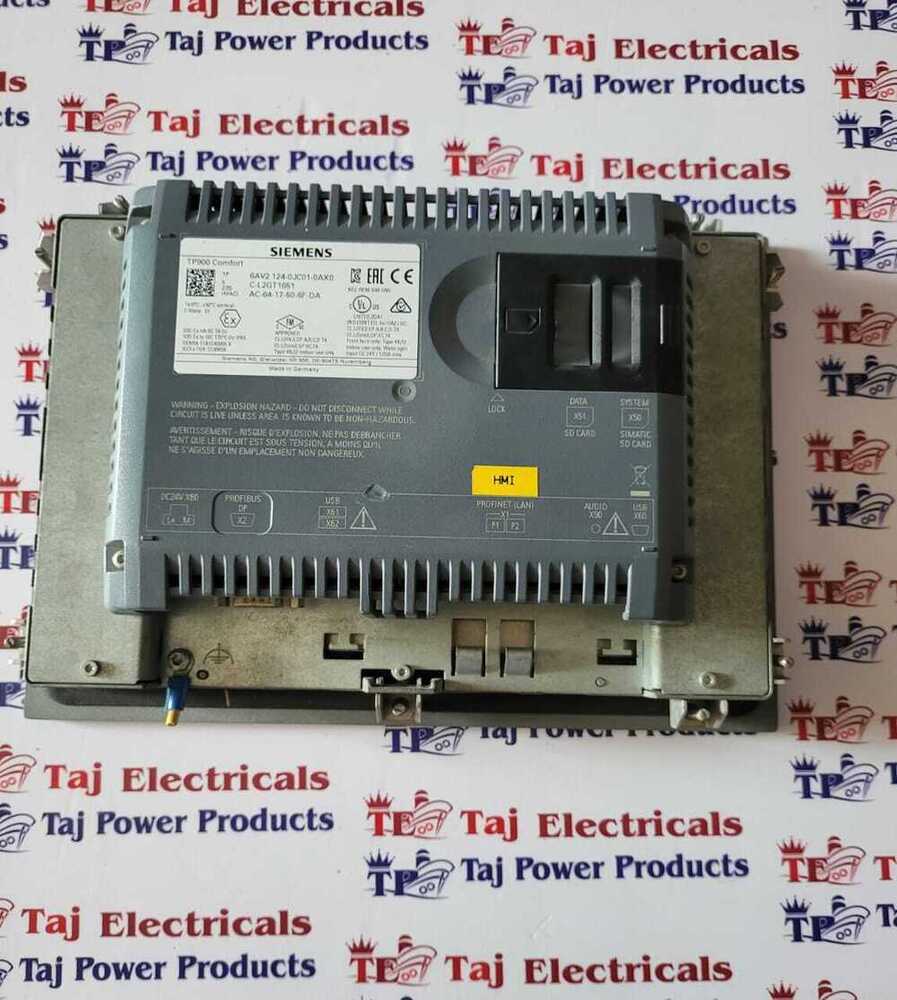

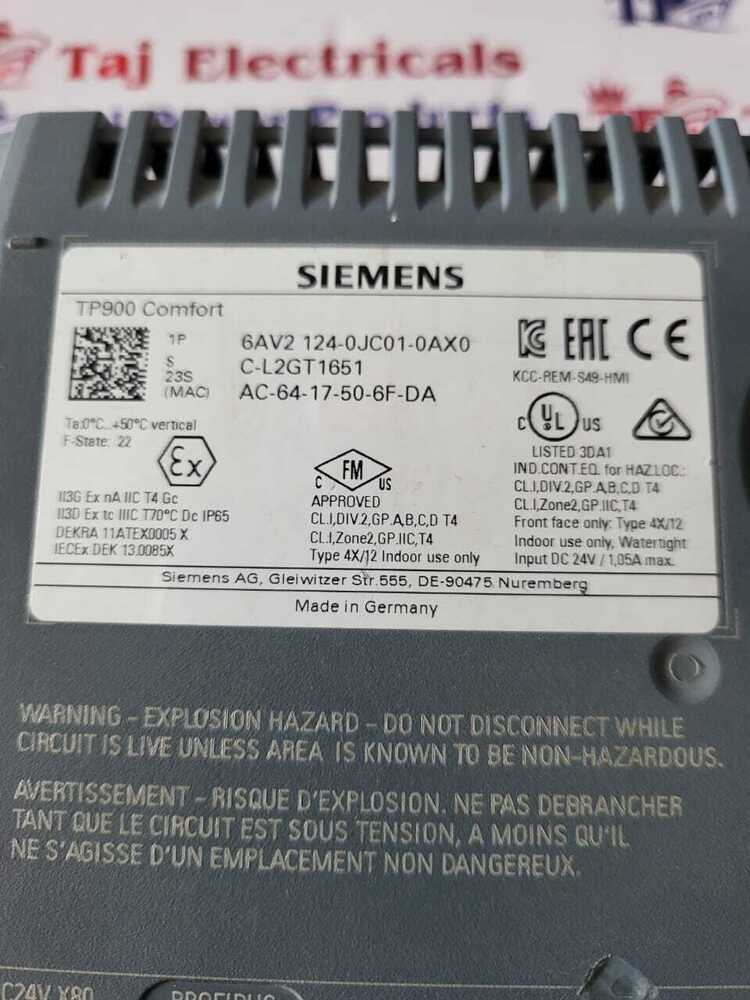

Maximize your industrial automation efficiency with the SIEMENS SIMATIC HMI TP900 Comfort Panel (6AV2 124-0JC01-0AX0). This premium, high-performance Comfort Panel is engineered for complex, demanding HMI applications where precise machine-level monitoring and control are critical.

Advanced Touchscreen Display

Experience seamless control with a 7-inch TFT capacitive multi-touch display. Its vivid 16 million colors and high resolution ensure clear visualization in demanding industrial settings. The LED backlight enhances visibility, while the robust aluminum front panel ensures long-lasting durability.

Flexible Connectivity Options

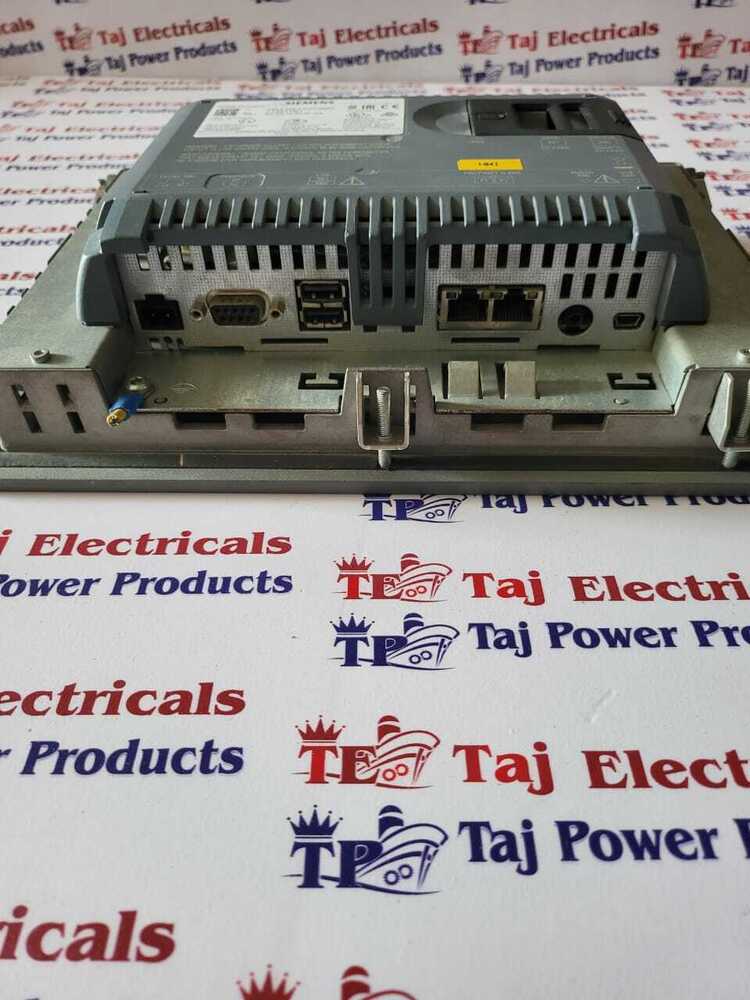

Integrating easily into modern automation systems, the 6AV2 124-0JC01-0AX0 offers Profinet, Ethernet, USB, and RS-485/422 interfaces. These connectivity features allow for easy data exchange, connection with SIMATIC S7 systems, memory expansion via SD/SDHC cards, and support for remote operations.

Reliable Operation in Harsh Environments

Built to perform in challenging industrial environments, the device maintains reliable operation from 0C to +50C and humidity levels from 10% to 90%. Its IP65-rated front ensures resistance against dust and water, making it suitable for machine panels in various industries.

FAQ's of 6AV2 124-0JC01-0AX0:

Q: How do I configure the 6AV2 124-0JC01-0AX0 for use with SIMATIC S7 systems?

A: You can configure the 6AV2 124-0JC01-0AX0 using Siemens TIA Portal software. Connect the HMI panel to your PC via Ethernet or USB, and use TIA Portal to create and transfer HMI projects tailored for SIMATIC S7 applications.

Q: What are the benefits of the capacitive multi-touch screen on this HMI panel?

A: The capacitive multi-touch screen offers intuitive and responsive operation, supporting multi-finger gestures. It enhances user experience by enabling smooth navigation, quick command input, and improved efficiency, even in demanding industrial settings.

Q: When is it appropriate to use the SD/SDHC memory card feature?

A: Use SD or SDHC cards when you require additional project storage, want to back up HMI configuration, or need to transfer data between multiple panels. It enhances flexibility for data management and updates.

Q: Where should the KTP700 Basic panel be mounted?

A: This HMI panel is designed for panel mounting in industrial control cabinets. Its front has an IP65 rating, which provides excellent protection against dust and water, making it ideal for manufacturing floor installation.

Q: What is the typical process for connecting external devices to the panel?

A: You can connect external devices such as PLCs, sensors, or USB storage via its Ethernet (Profinet), RS-485/422, or USB 2.0 ports. Ensure proper wiring according to installation guidelines, and configure communication protocols in TIA Portal.

Q: How does the onboard flash memory benefit project applications?

A: The built-in 12 MB flash memory provides ample space for storing HMI projects and user data. It enables reliable and fast project loading, reduces dependency on external storage, and ensures consistent performance.
